Engine Cooling Fan Circuit Check

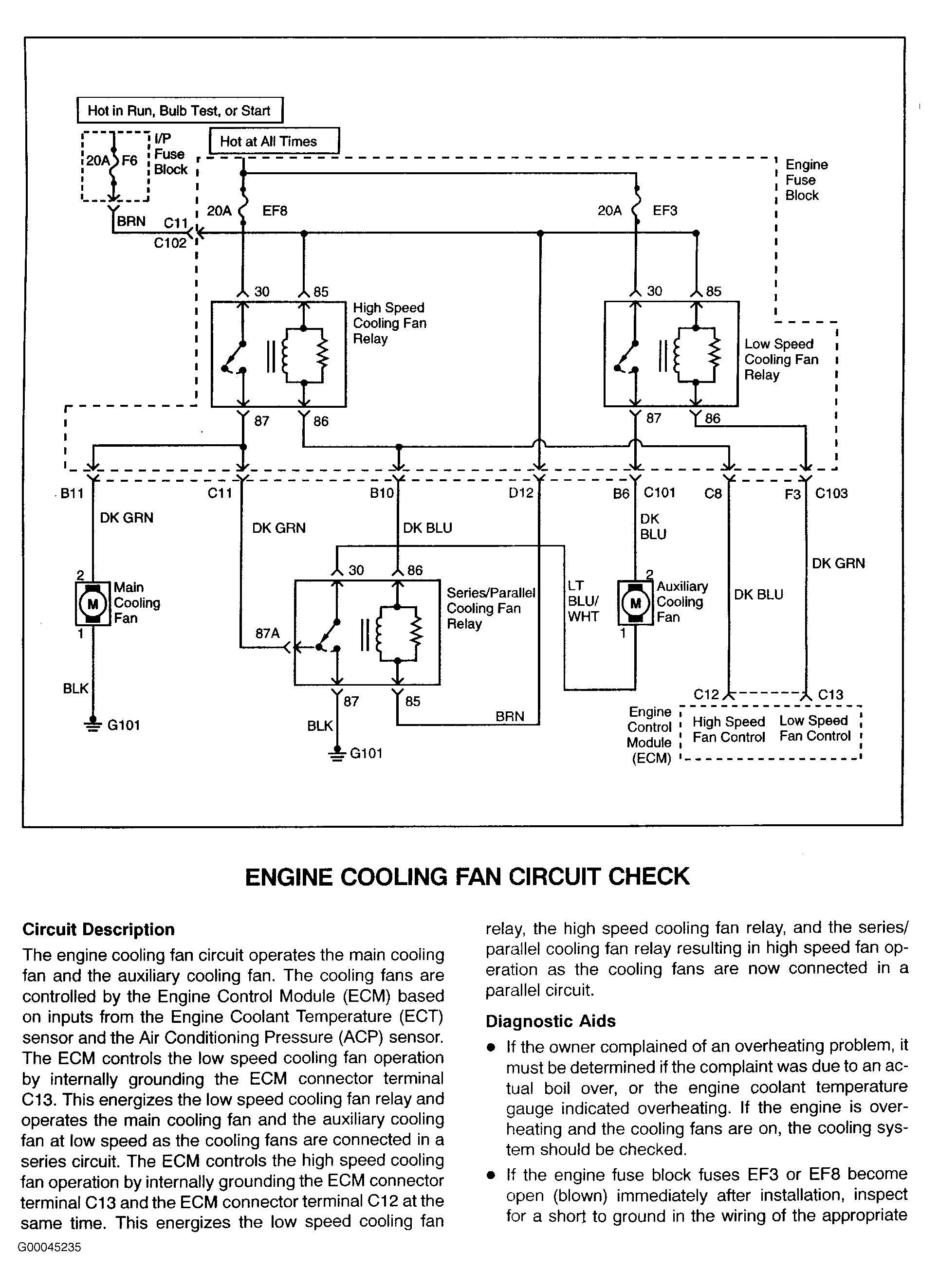

Fig 1: Engine Cooling Fan Circuit Check (1 Of 7)

Courtesy of DAEWOO MOTOR AMERICA, INC.

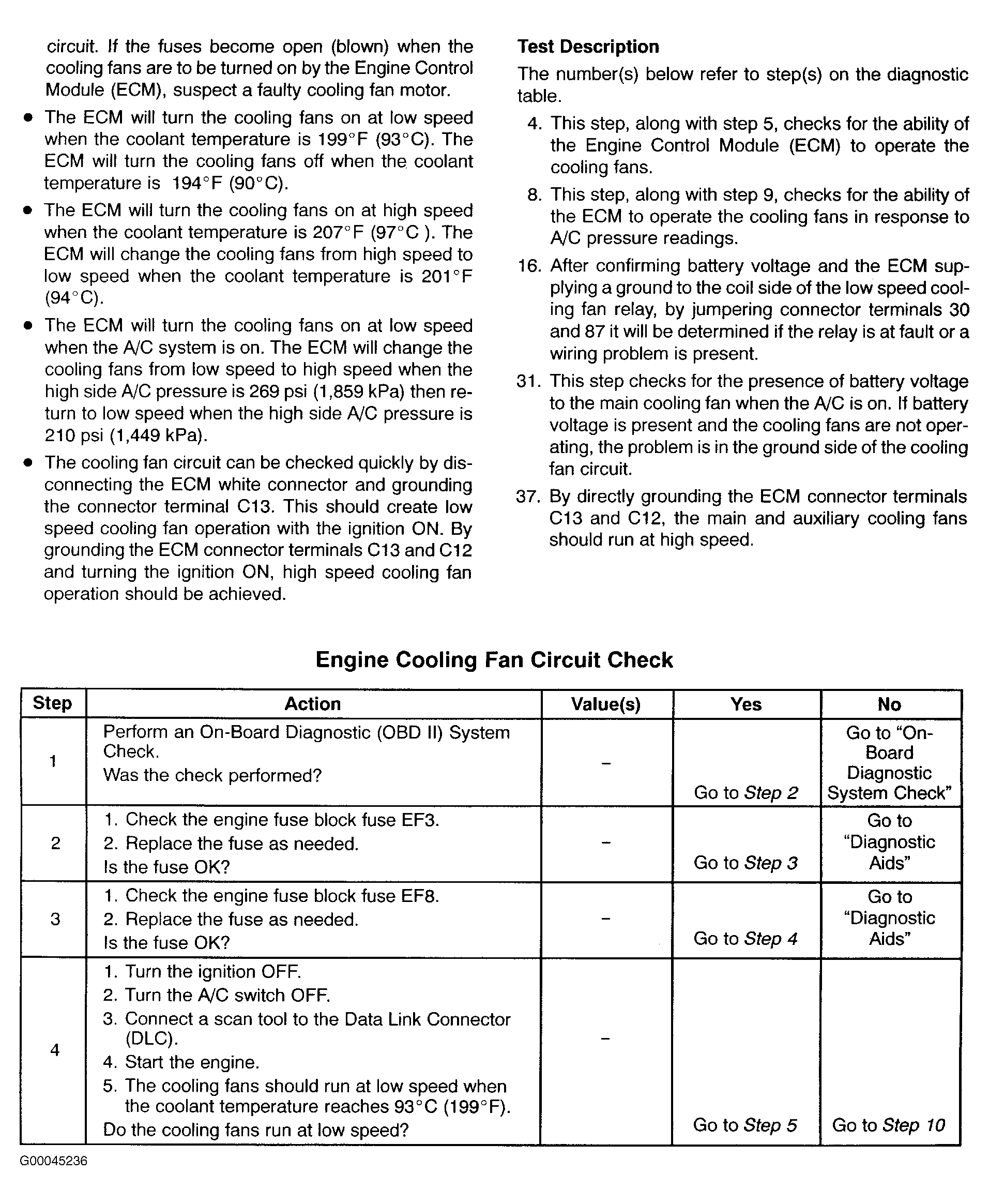

Fig 2: Engine Cooling Fan Circuit Check (2 Of 7)

Courtesy of DAEWOO MOTOR AMERICA, INC.

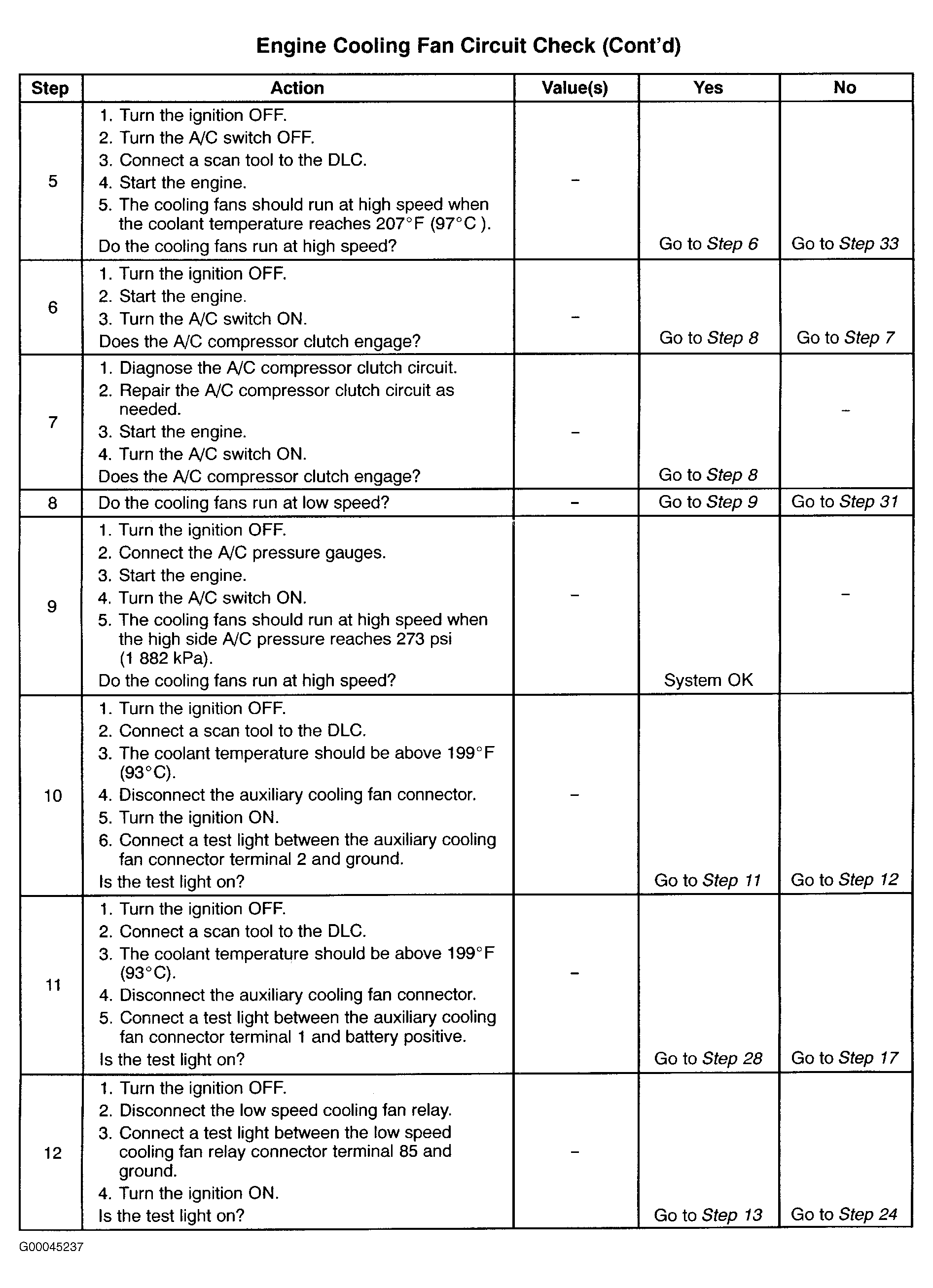

Fig 3: Engine Cooling Fan Circuit Check (3 Of 7)

Courtesy of DAEWOO MOTOR AMERICA, INC.

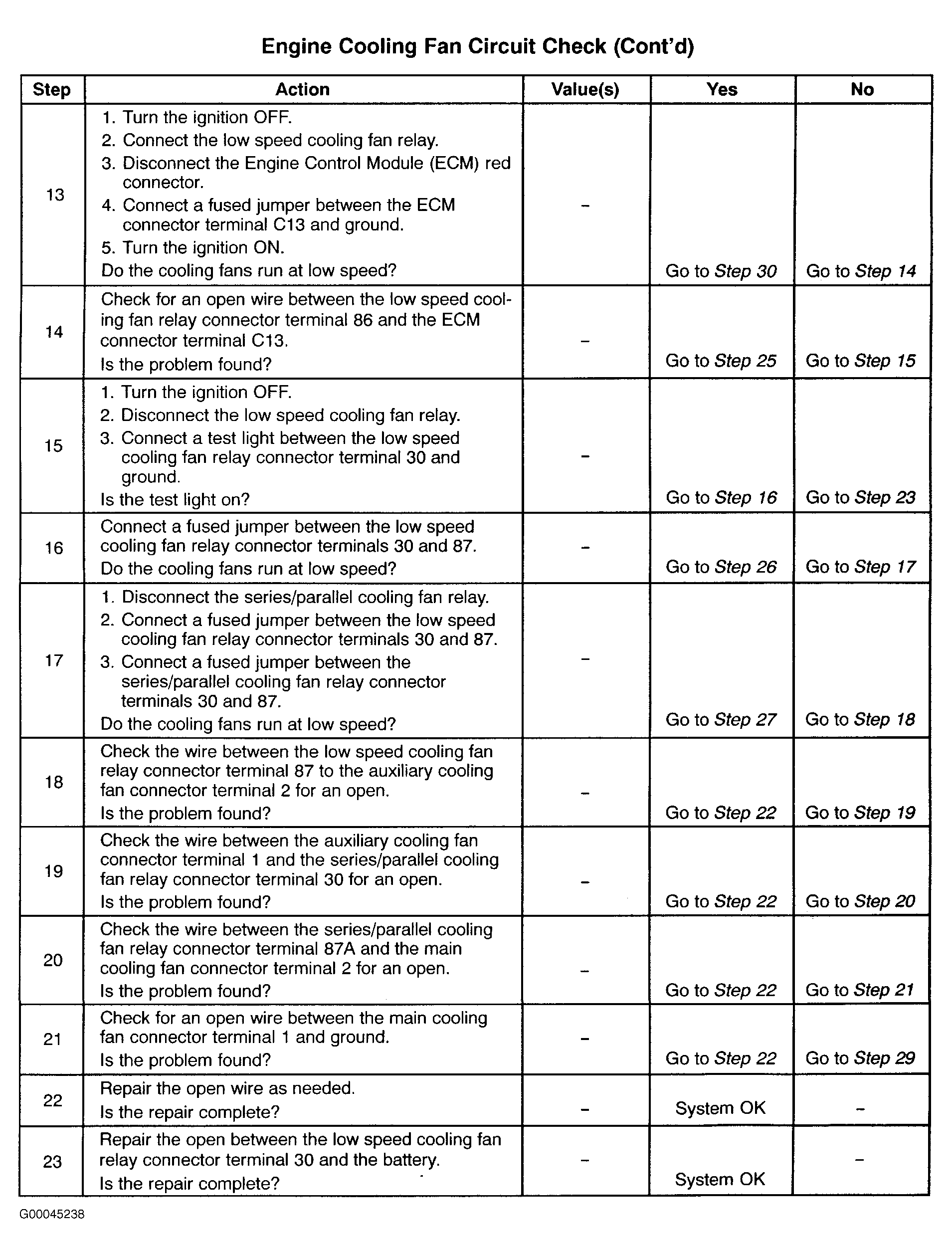

Fig 4: Engine Cooling Fan Circuit Check (4 Of 7)

Courtesy of DAEWOO MOTOR AMERICA, INC.

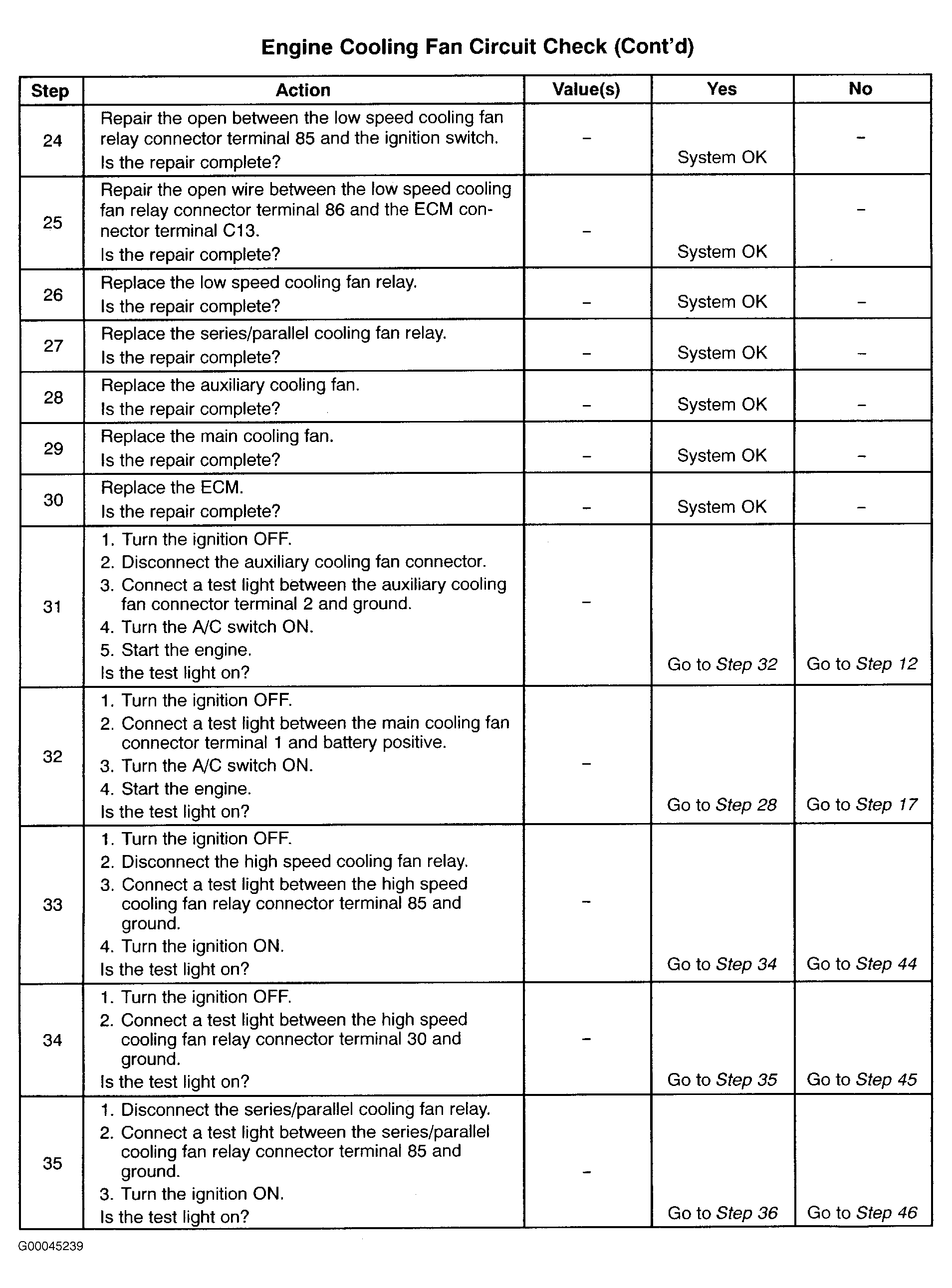

Fig 5: Engine Cooling Fan Circuit Check (5 Of 7)

Courtesy of DAEWOO MOTOR AMERICA, INC.

Fig 6: Engine Cooling Fan Circuit Check (6 Of 7)

Courtesy of DAEWOO MOTOR AMERICA, INC.

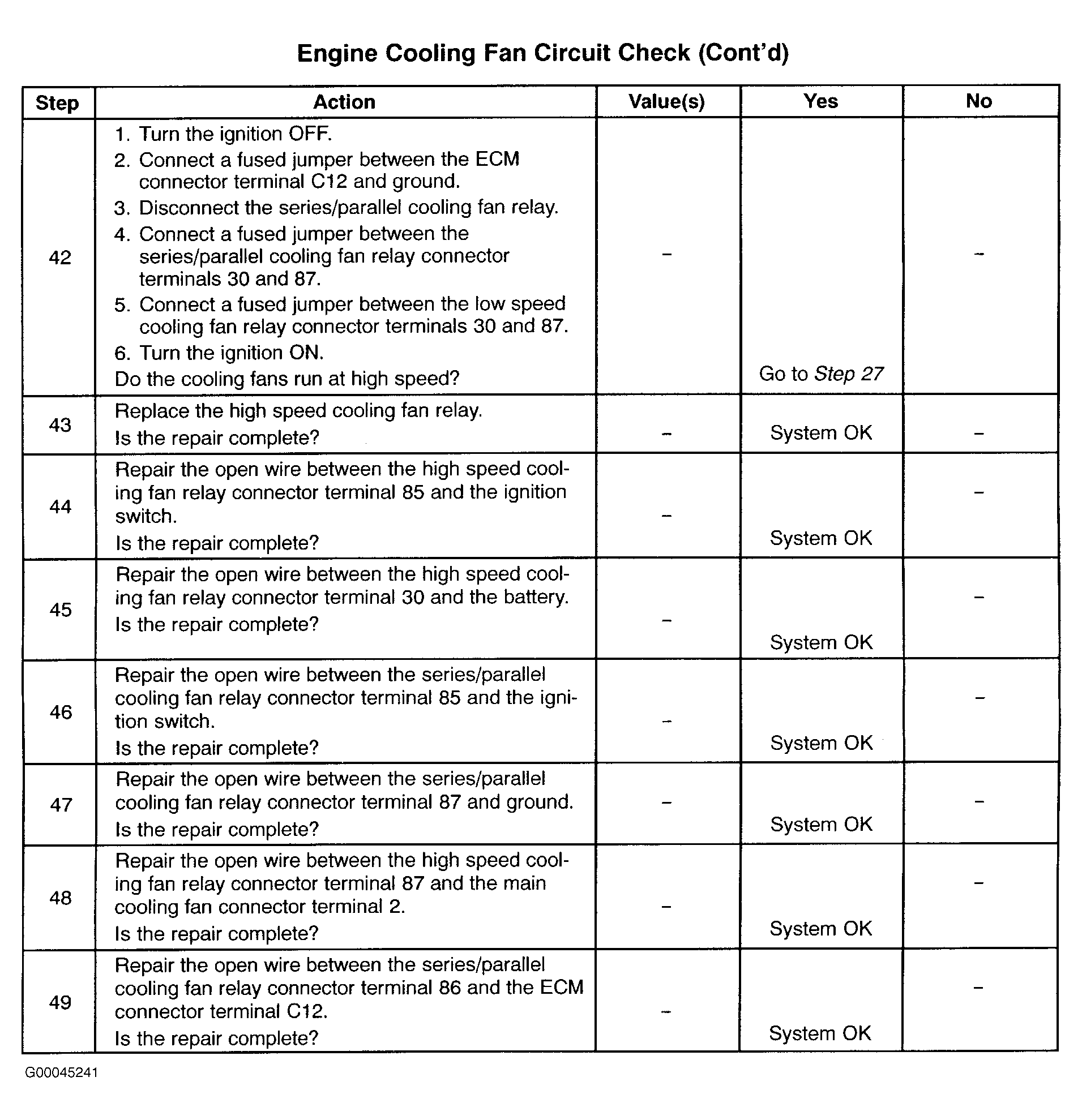

Fig 7: Engine Cooling Fan Circuit Check (7 Of 7)

Courtesy of DAEWOO MOTOR AMERICA, INC.
