Fuel System Diagnosis

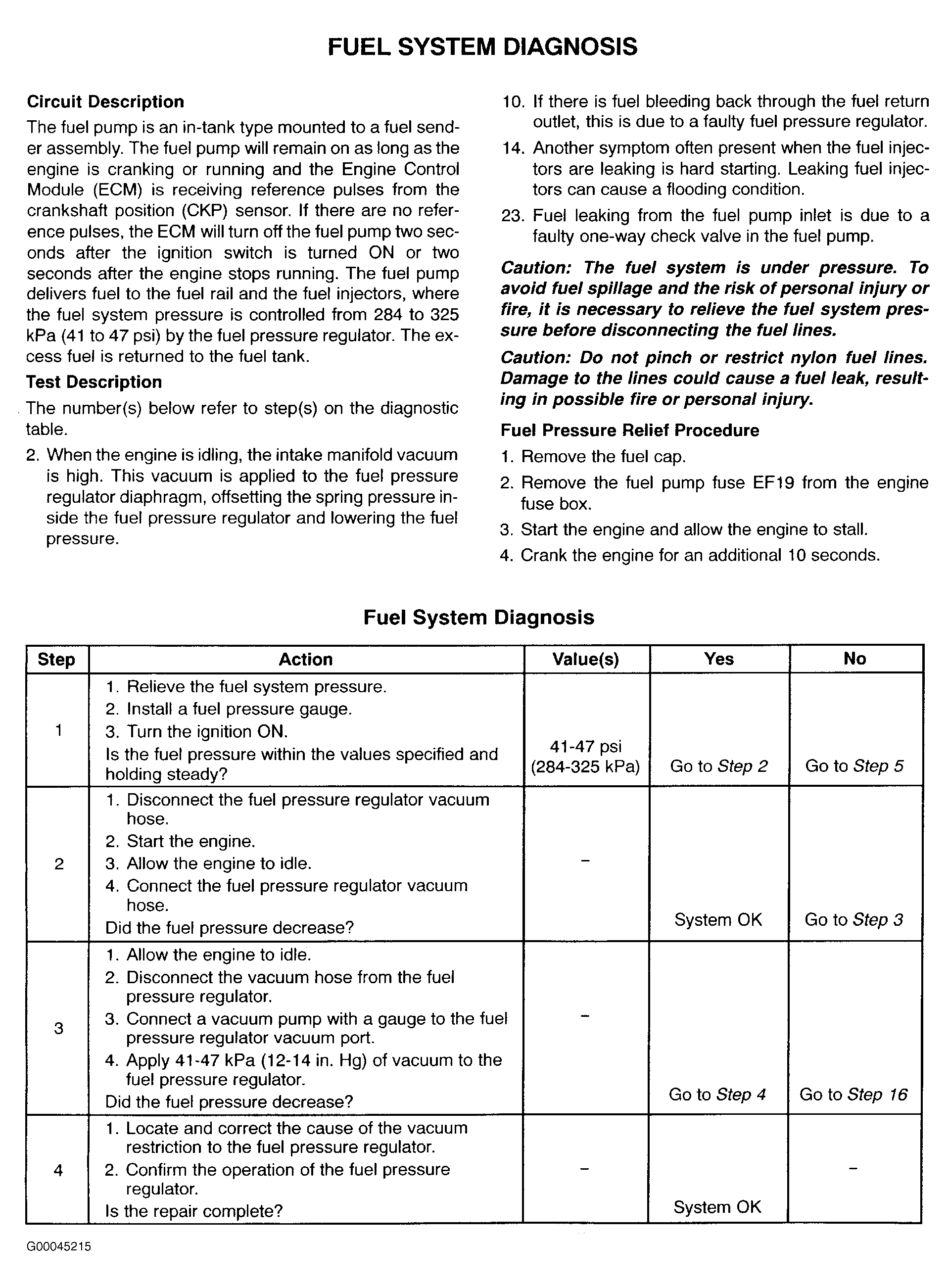

Fig 1: Fuel System Diagnosis (1 Of 3)
Courtesy of DAEWOO MOTOR AMERICA, INC.

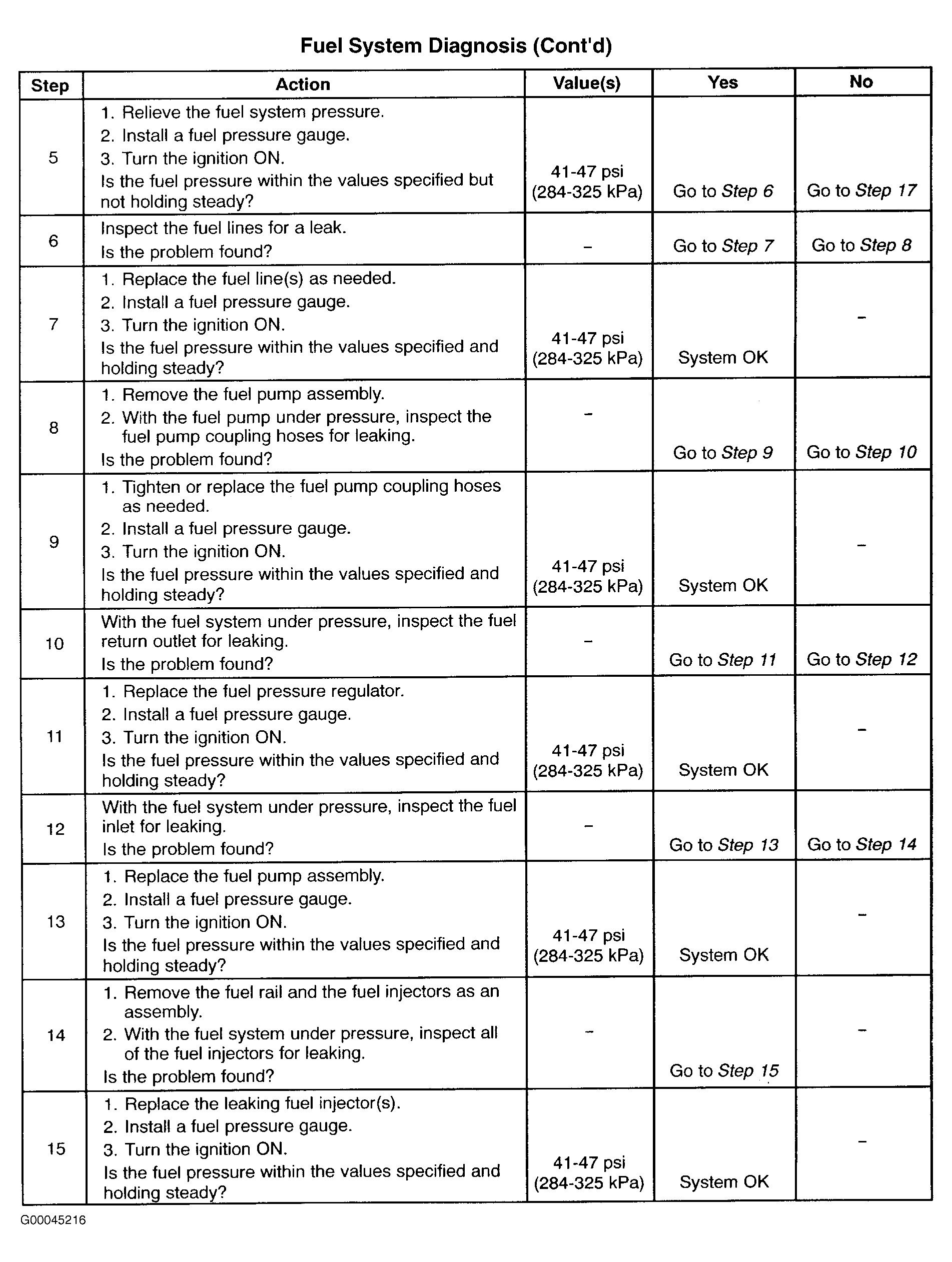

Fig 2: Fuel System Diagnosis (2 Of 3)
Courtesy of DAEWOO MOTOR AMERICA, INC.

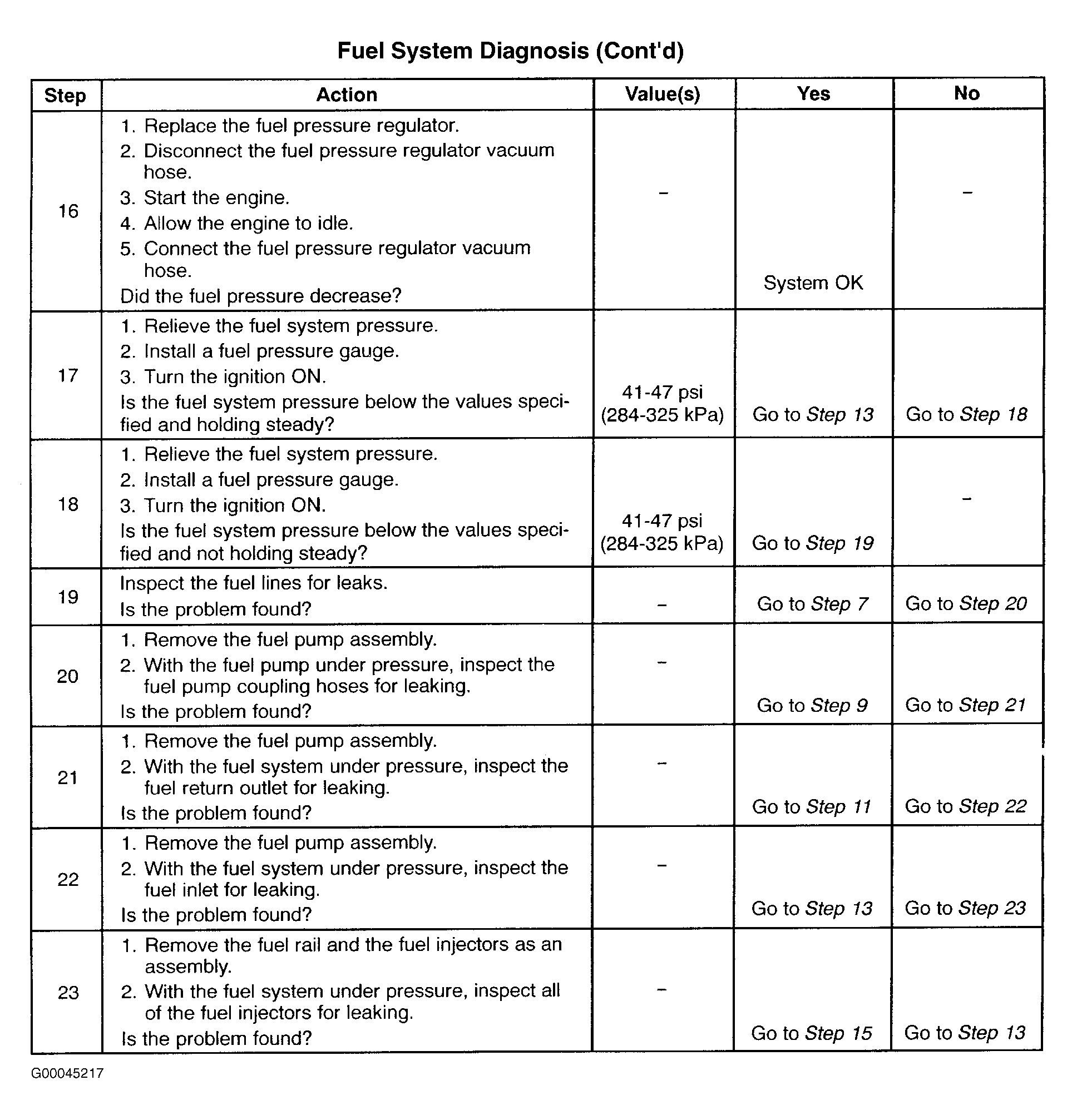

Fig 3: Fuel System Diagnosis (3 Of 3)
Courtesy of DAEWOO MOTOR AMERICA, INC.
Courtesy of DAEWOO MOTOR AMERICA, INC.
Courtesy of DAEWOO MOTOR AMERICA, INC.
Courtesy of DAEWOO MOTOR AMERICA, INC.
