EBD Failure Matrix
EBD Failure Matrix

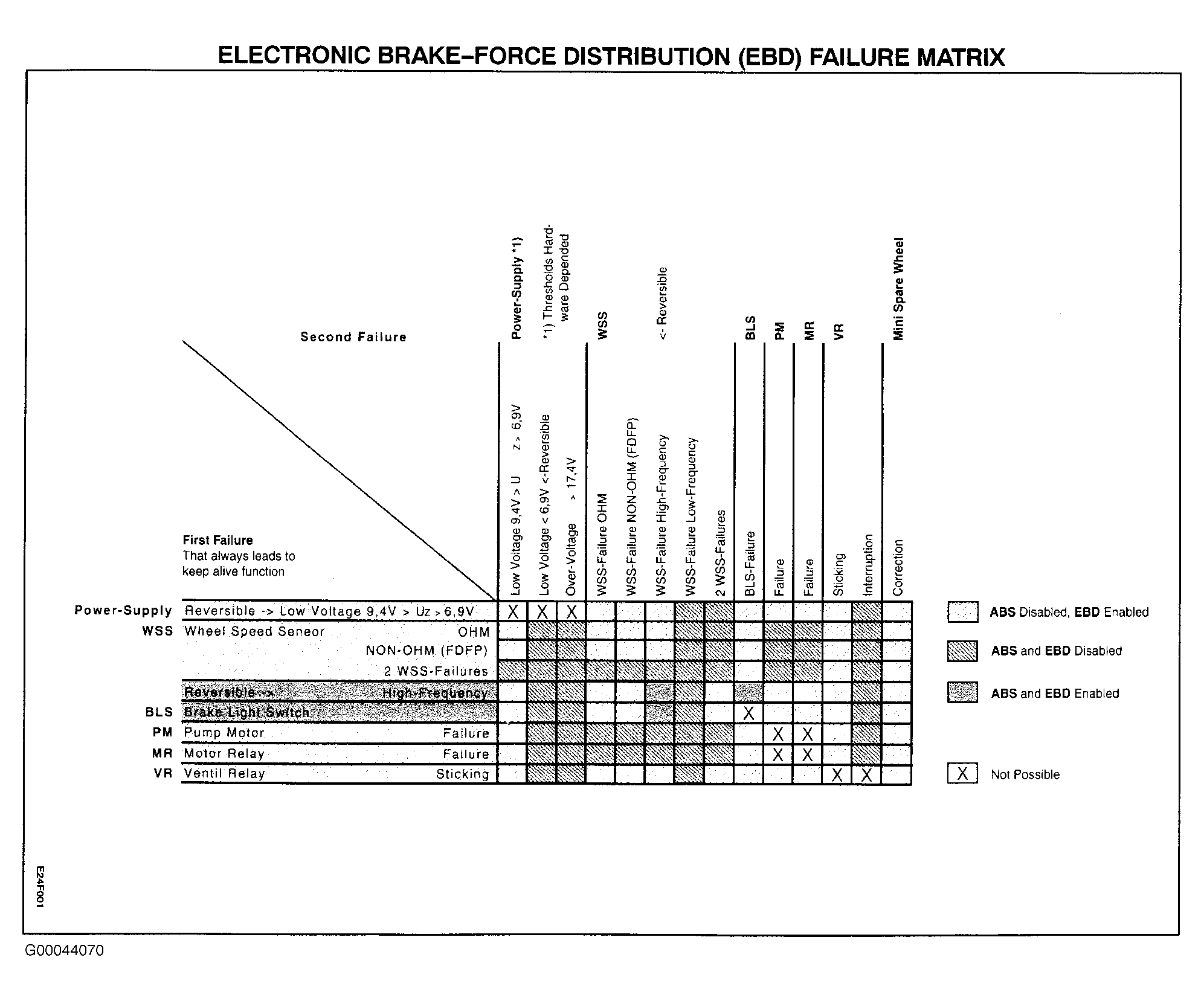

Fig 1: EBD Failure Matrix
Courtesy of DAEWOO MOTOR AMERICA, INC.
Courtesy of DAEWOO MOTOR AMERICA, INC.
