EVAP Control System Diagnosis

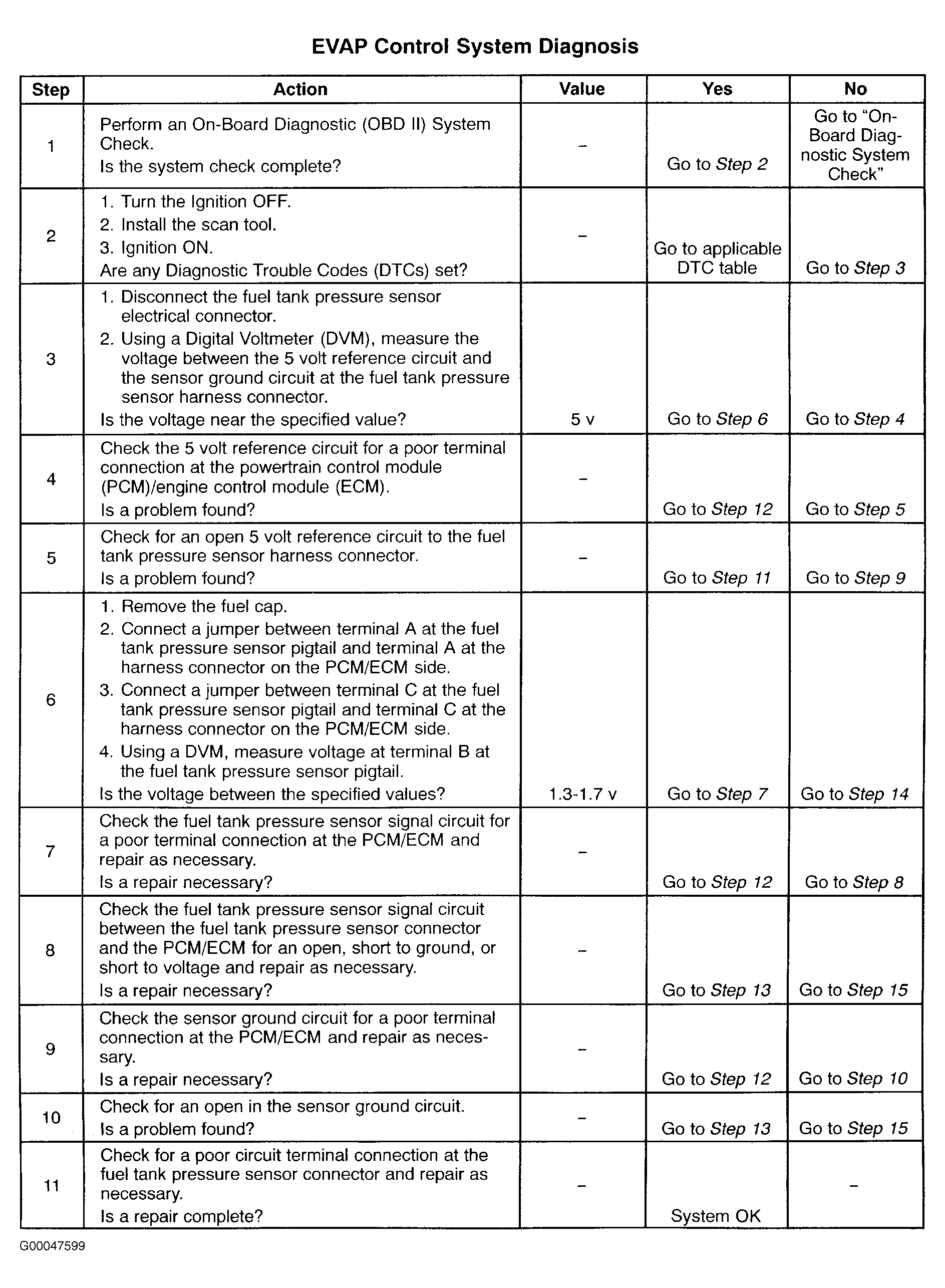

Fig 1: EVAP Control System Diagnosis (1 Of 3)

Courtesy of DAEWOO MOTOR AMERICA, INC.

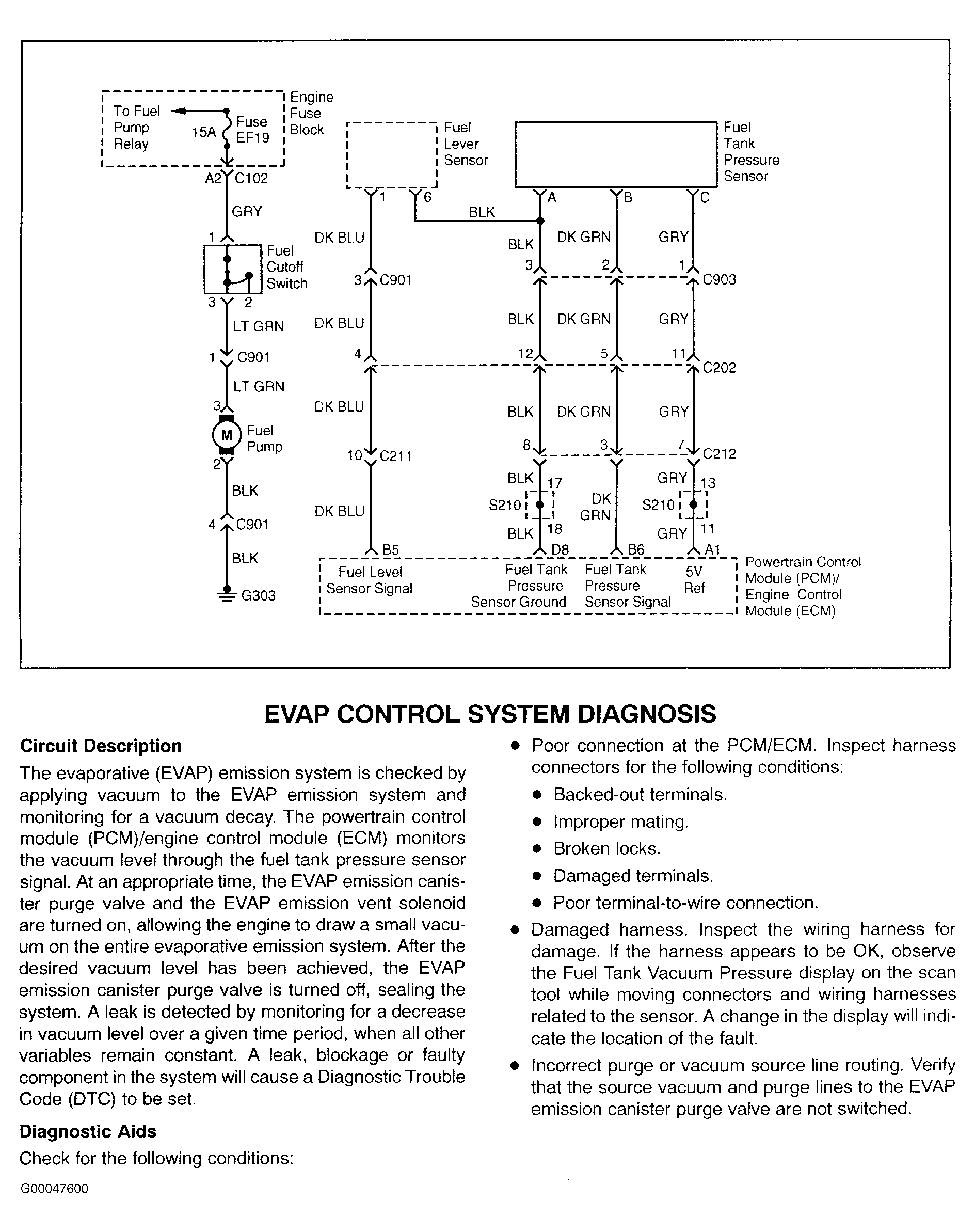

Fig 2: EVAP Control System Diagnosis (2 Of 3)

Courtesy of DAEWOO MOTOR AMERICA, INC.

Fig 3: EVAP Control System Diagnosis (3 Of 3)

Courtesy of DAEWOO MOTOR AMERICA, INC.
