Daihatsu
›
1988
›
Charade CSX, G102
›
Repair and Diagnosis
›
Maintenance
›
Procedures
›
Maintenance Information
›
Service Point Locations
Service Point Locations

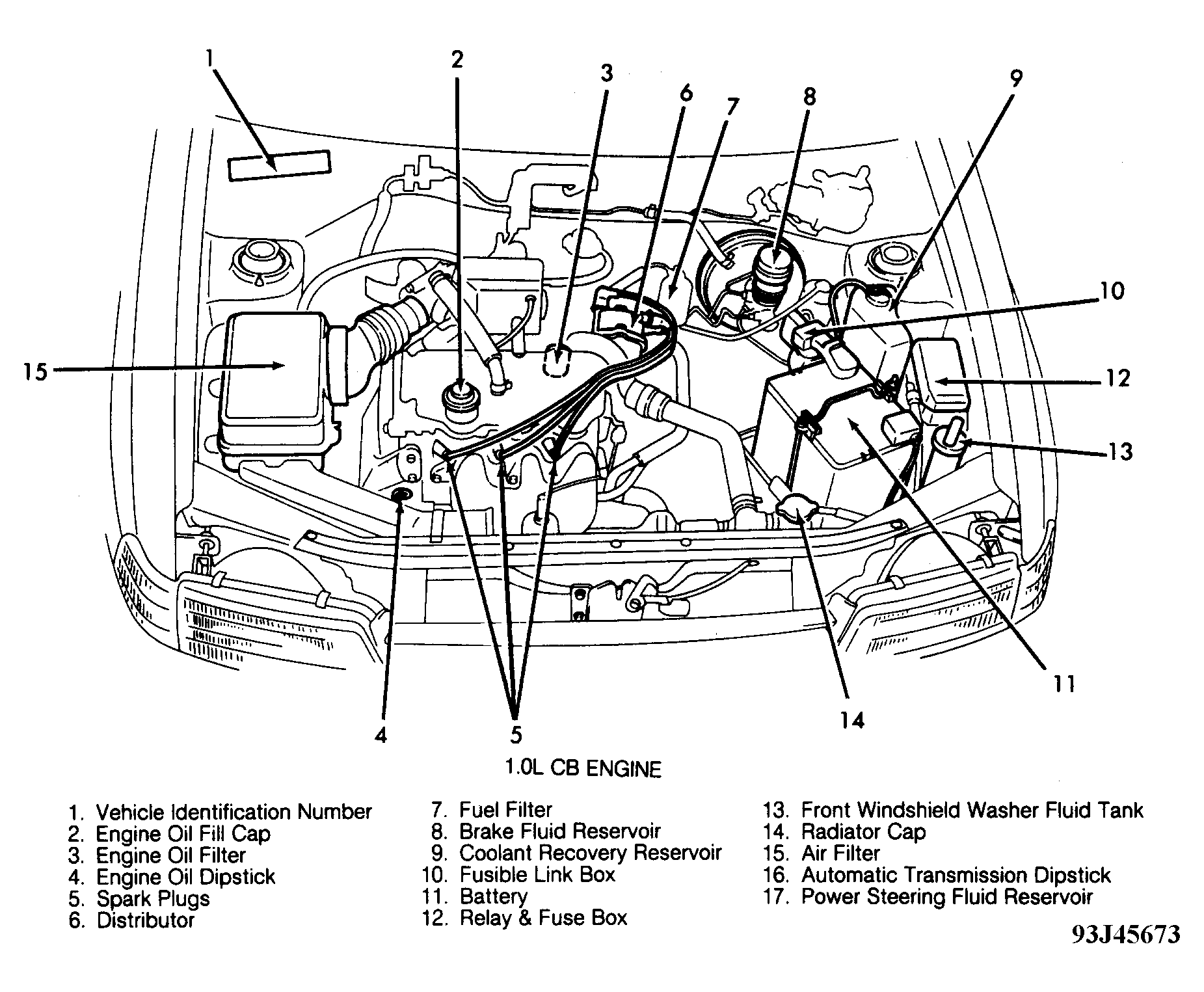

Fig 1: Service Point Locations (1.0L CB Engine)
Courtesy of DAIHATSU MOTOR CO., LTD.

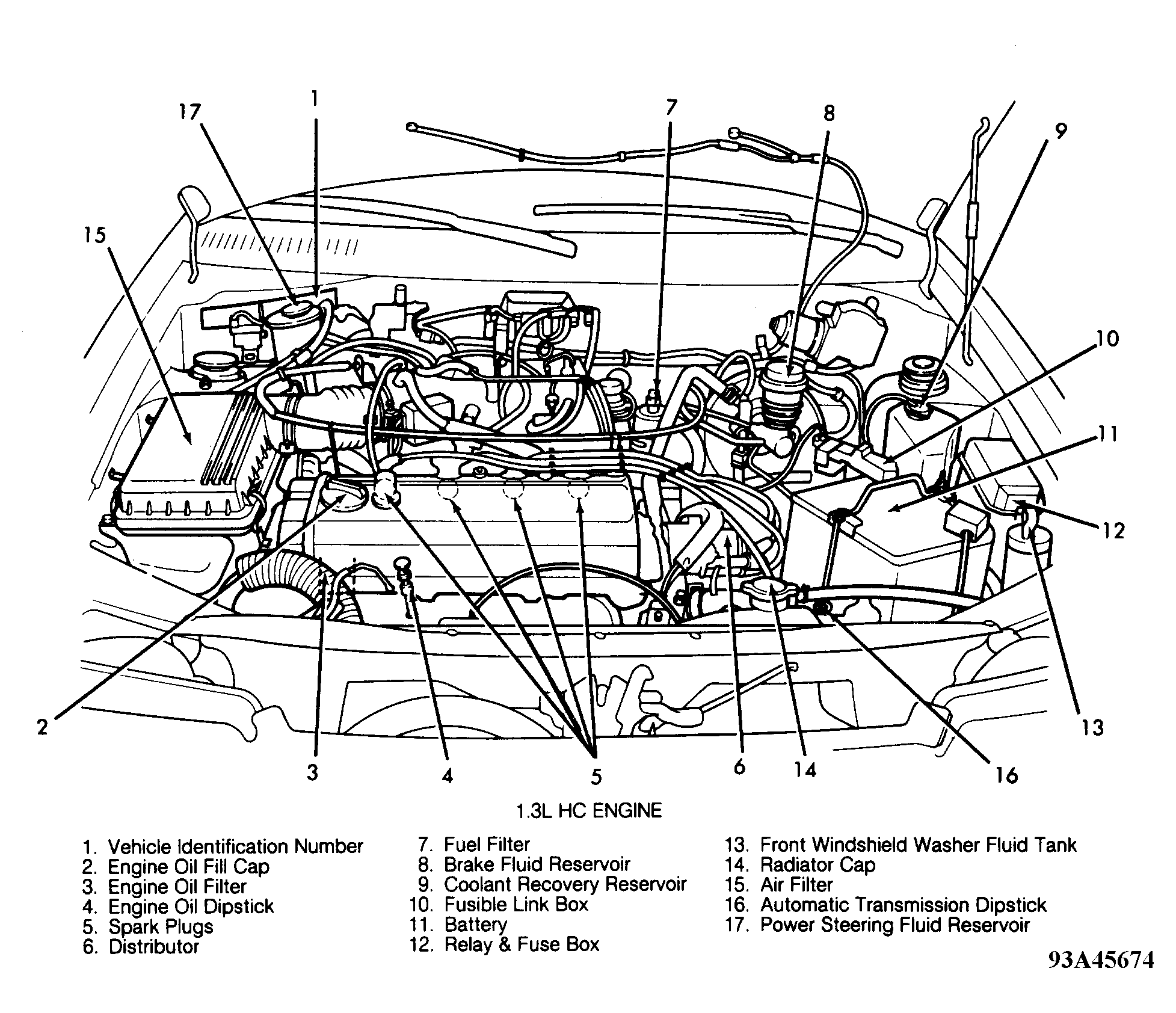

Fig 2: Service Point Locations (1.3L HC Engine)
Courtesy of DAIHATSU MOTOR CO., LTD.
Courtesy of DAIHATSU MOTOR CO., LTD.
Courtesy of DAIHATSU MOTOR CO., LTD.
