Evaporative Emissions System: Maintenance

The only service normally required for system is to replace filter located in bottom of charcoal canister every 12 months or 12,-000 miles. Replace more often if vehicle is driven in dusty areas.

NOTE: Hoses used in this system must be fuel resistant.

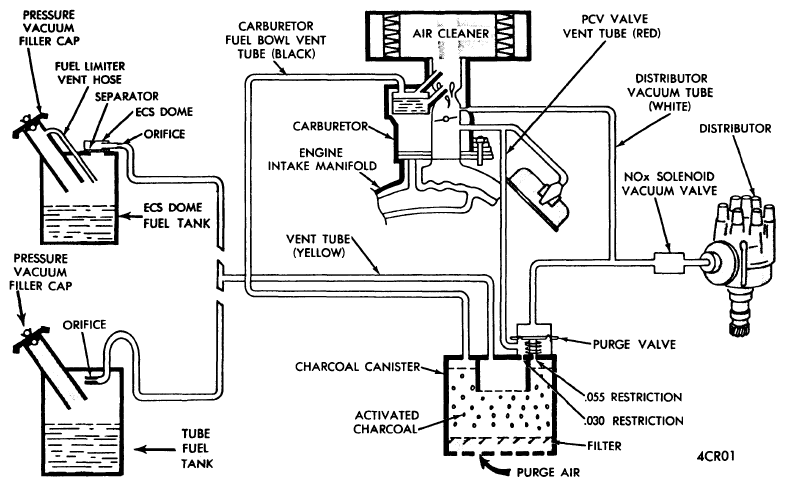

Fig 1: EVAPORATION CONTROL SYSTEM (HEAVY DUTY SHOWN, OTHERS TYPICAL)
G09325263Courtesy of CHRYSLER GROUP, LLC
