Oxygen Sensor: Installation

Coat threads of new sensor with nickel-based anti-seize compound. Do not use graphite or other compounds. Start sensor by hand, then tighten to 35 ft. lbs. Install air cleaner and connect battery cable.

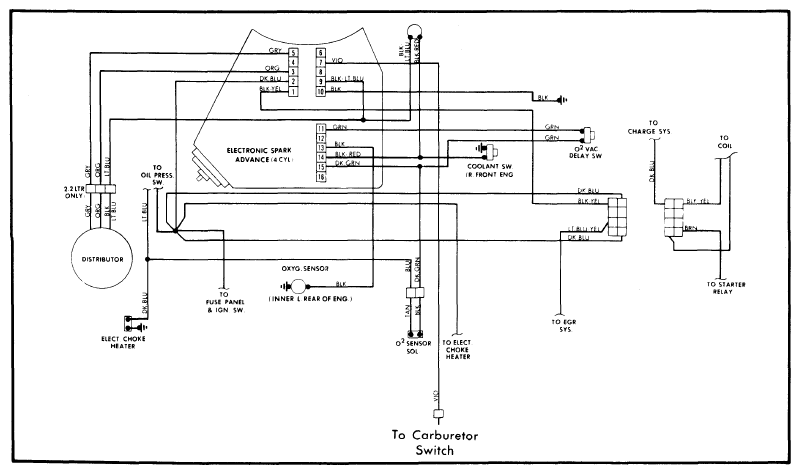

Fig 1: Wiring Diagram for 1.7L and 2.2L EFC System
G09340154Courtesy of CHRYSLER GROUP, LLC
