CONTROL UNITS LOCATION
Component
Location
Intermittent Wiper Control Unit
Under instrument panel, right side of steering column.
Spark Control Computer (2.2L)

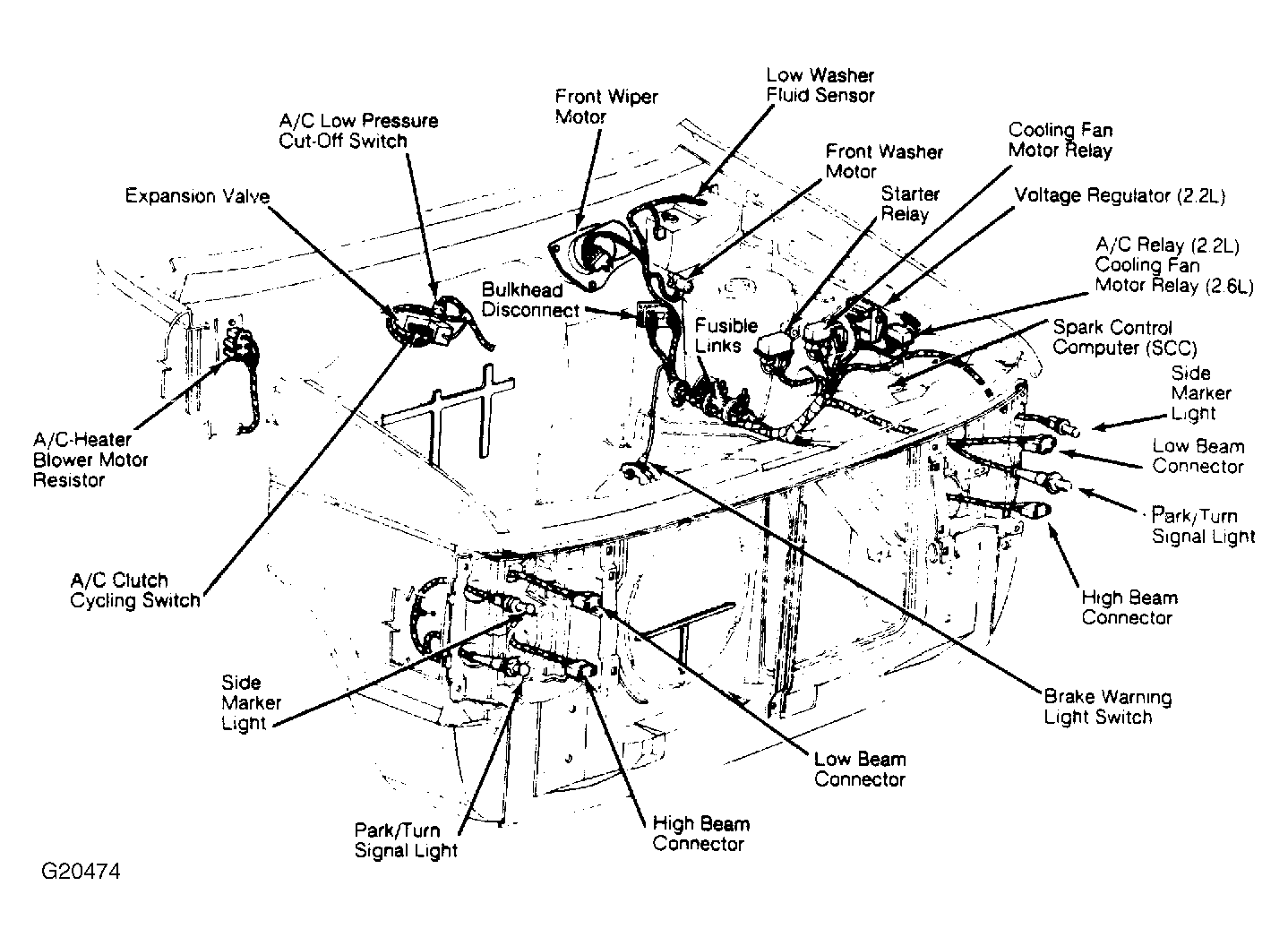

In left front corner of engine bay. See
Figure
.
Spark Control Computer (2.2L)
In left front corner of engine bay. See
Figure
.
