2.5L Turbo CEC Testing
›
Speed Control Test Information
›
SP3 - Testing Speed Control Switch
SP3 - Testing Speed Control Switch

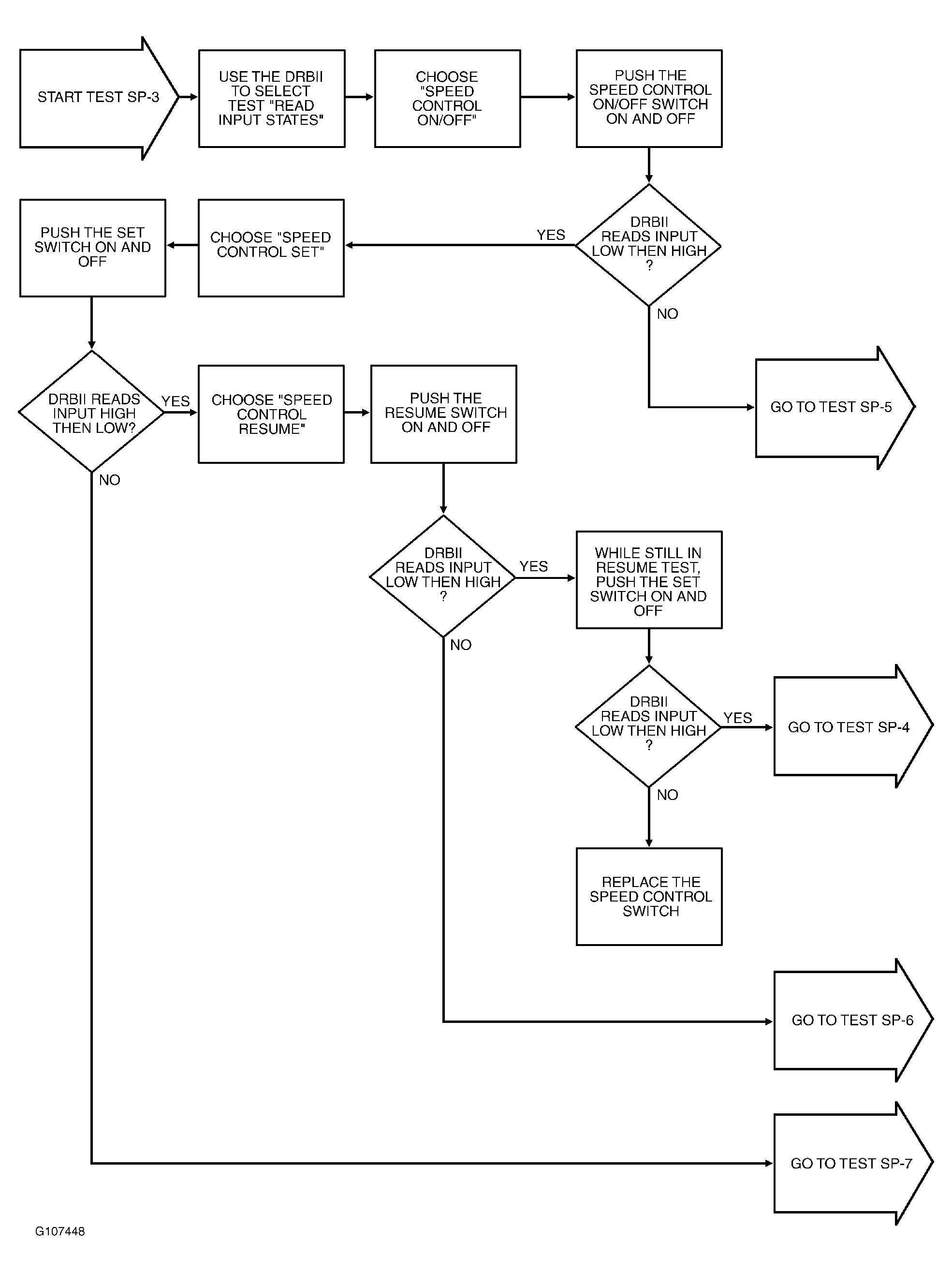

Fig 1: SP3 - Testing Speed Control Switch
