Test 36B - Checking For Key In Lamp Circuit Short
Test 36B - Checking For Key In Lamp Circuit Short

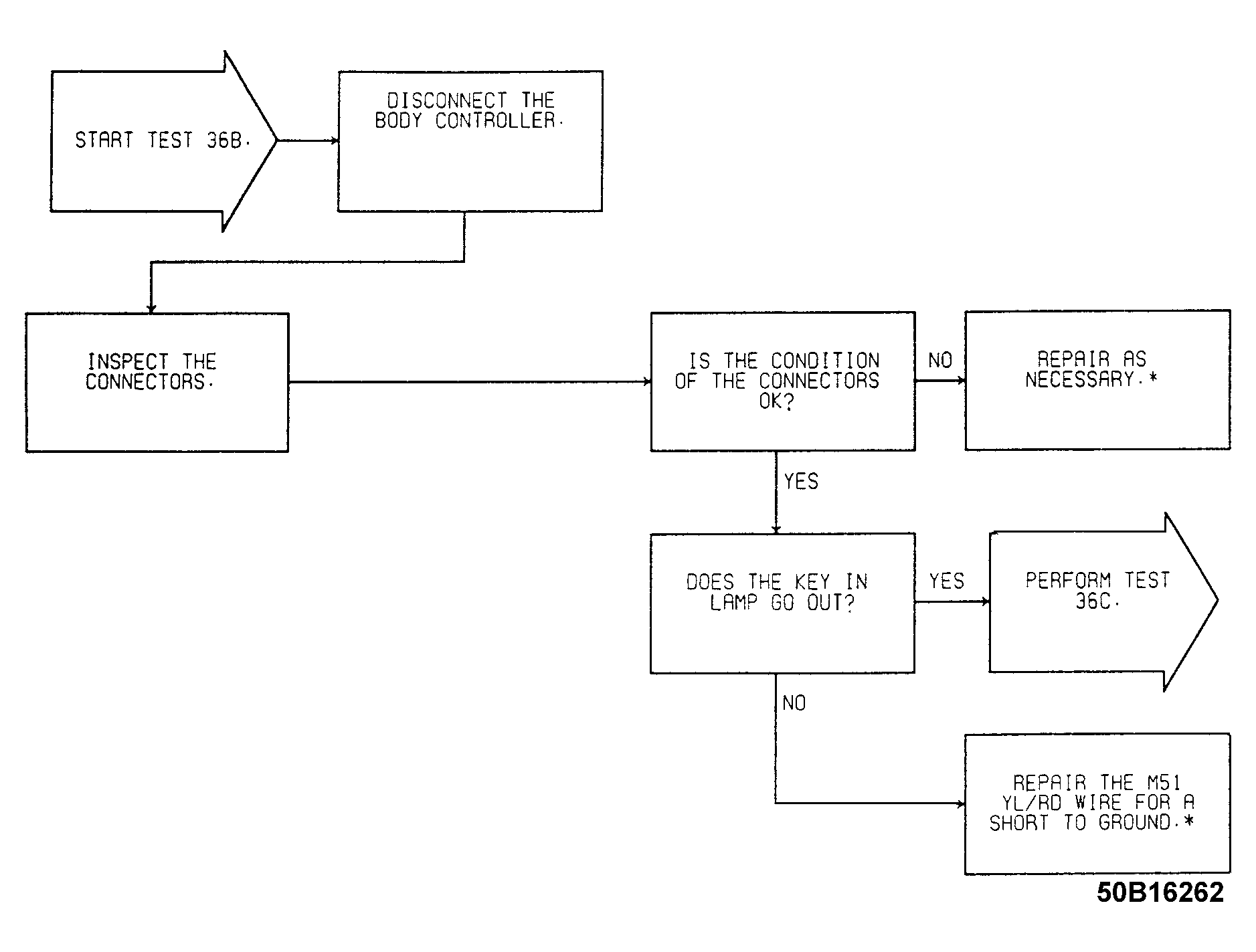

Fig 1: Test 36B Flow Chart - Checking For Key In Lamp Circuit Short
