Test 54A - Testing For Short To 5 Volts On Bus
Test 54A - Testing For Short To 5 Volts On Bus

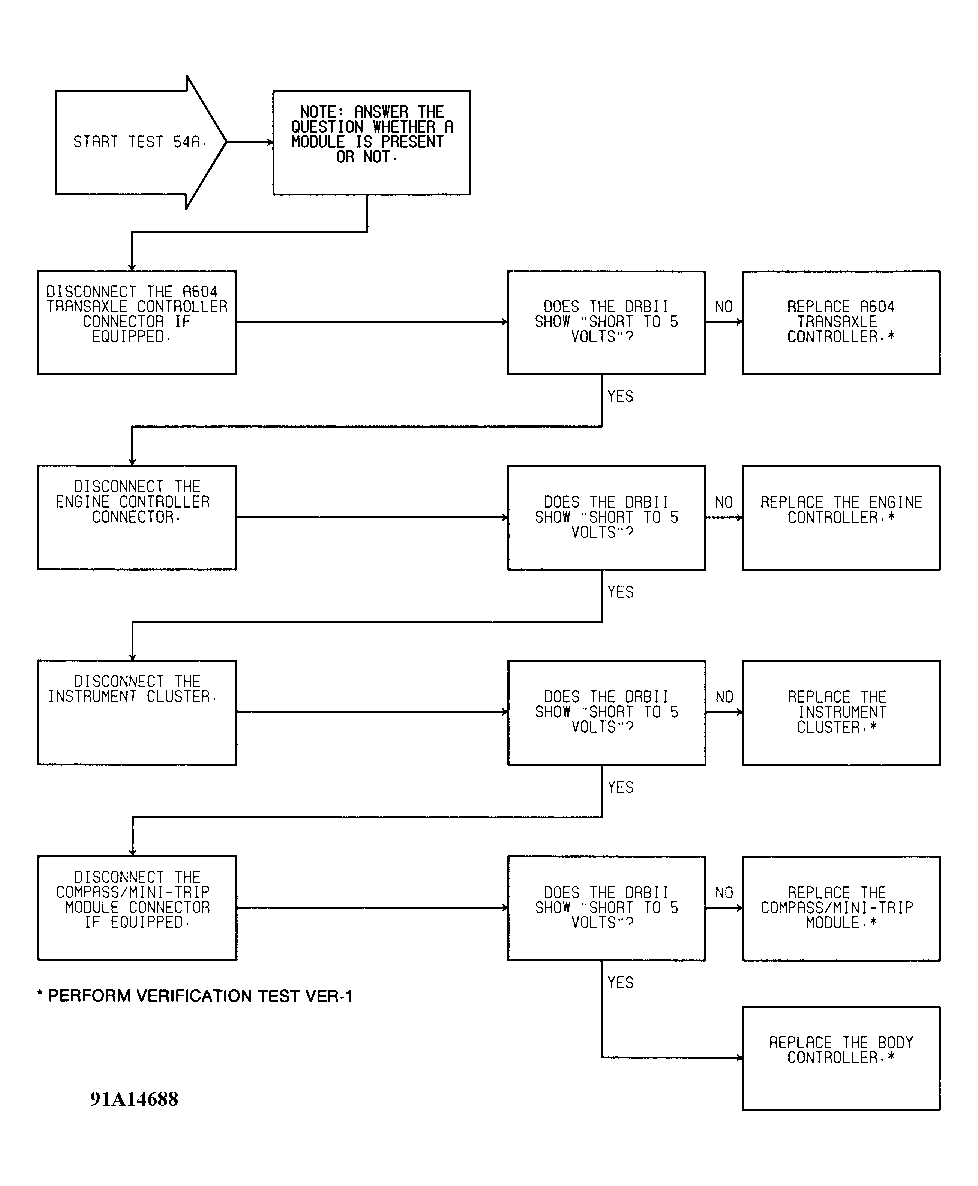

Fig 1: Test 54A - Testing For Short To 5 Volts On Bus
