Test 68A - Testing A-604 Controller For No Response

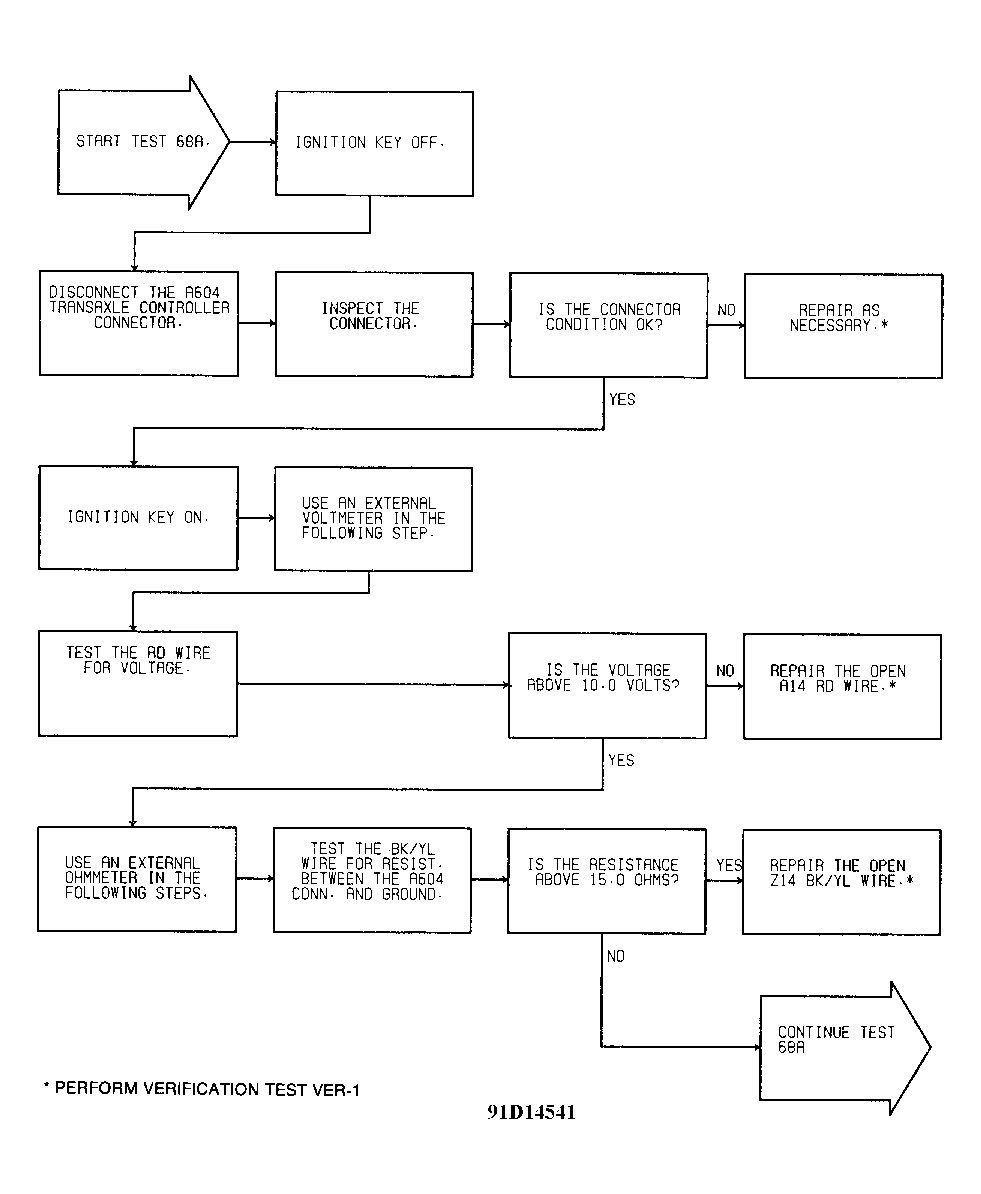

Fig 1: Test 68A (1 of 2) - Testing A-604 Controller For No Response

G91D14541

Fig 2: Test 68A (1 of 2) - Testing A-604 Controller For No Response

G91E14542
