Test 34C - Checking Liftgate Latch Switch & Wiring For Open

Fig 1: Test 34C Schematic - Checking Liftgate Latch Switch & Wiring For Open

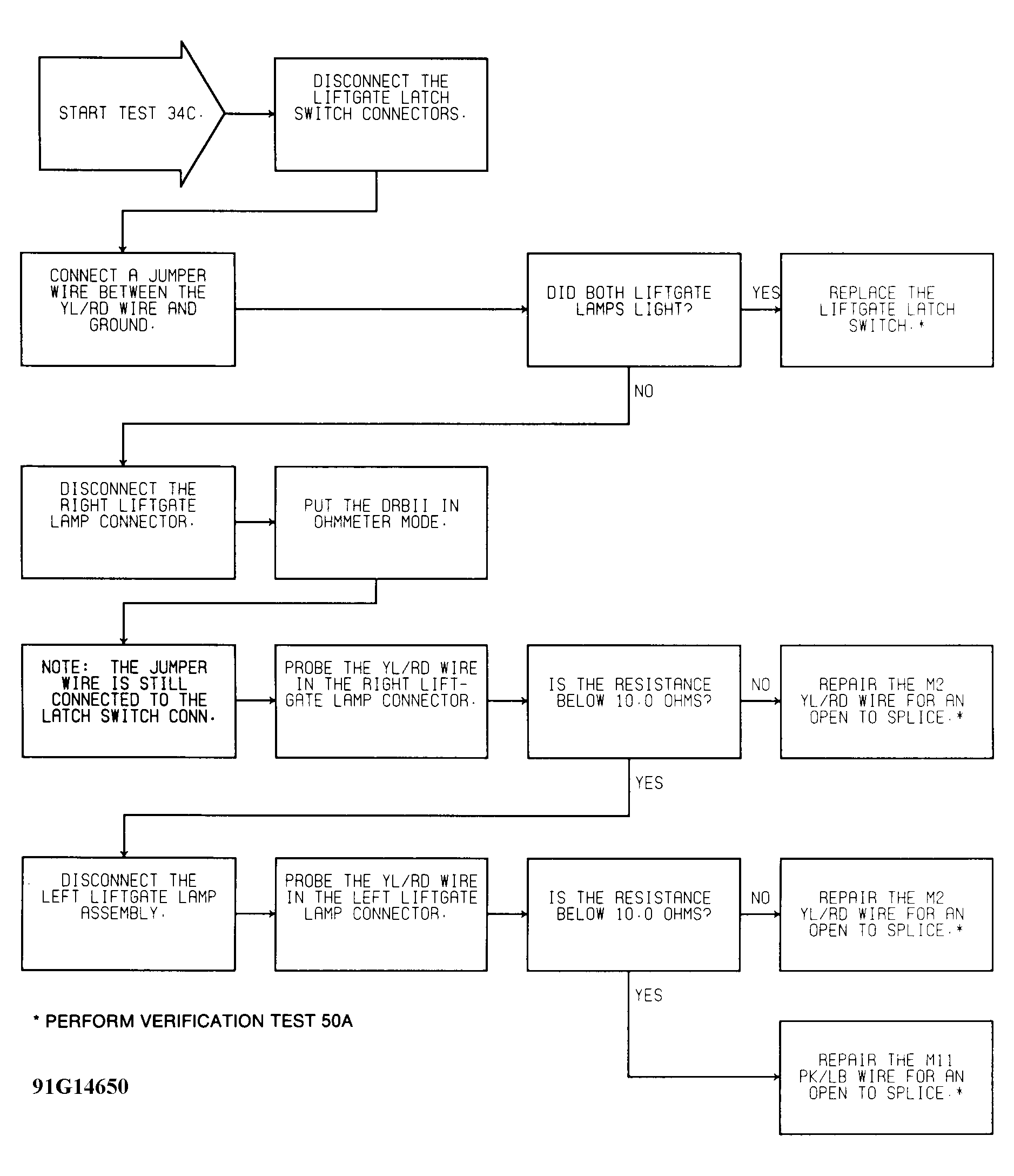

Fig 2: Test 34C Flow Chart - Checking Liftgate Latch Switch & Wiring For Open
