Test 10: Repair CCD Bus System For Short To GRN
Test 10: Repair CCD Bus System For Short To GRN

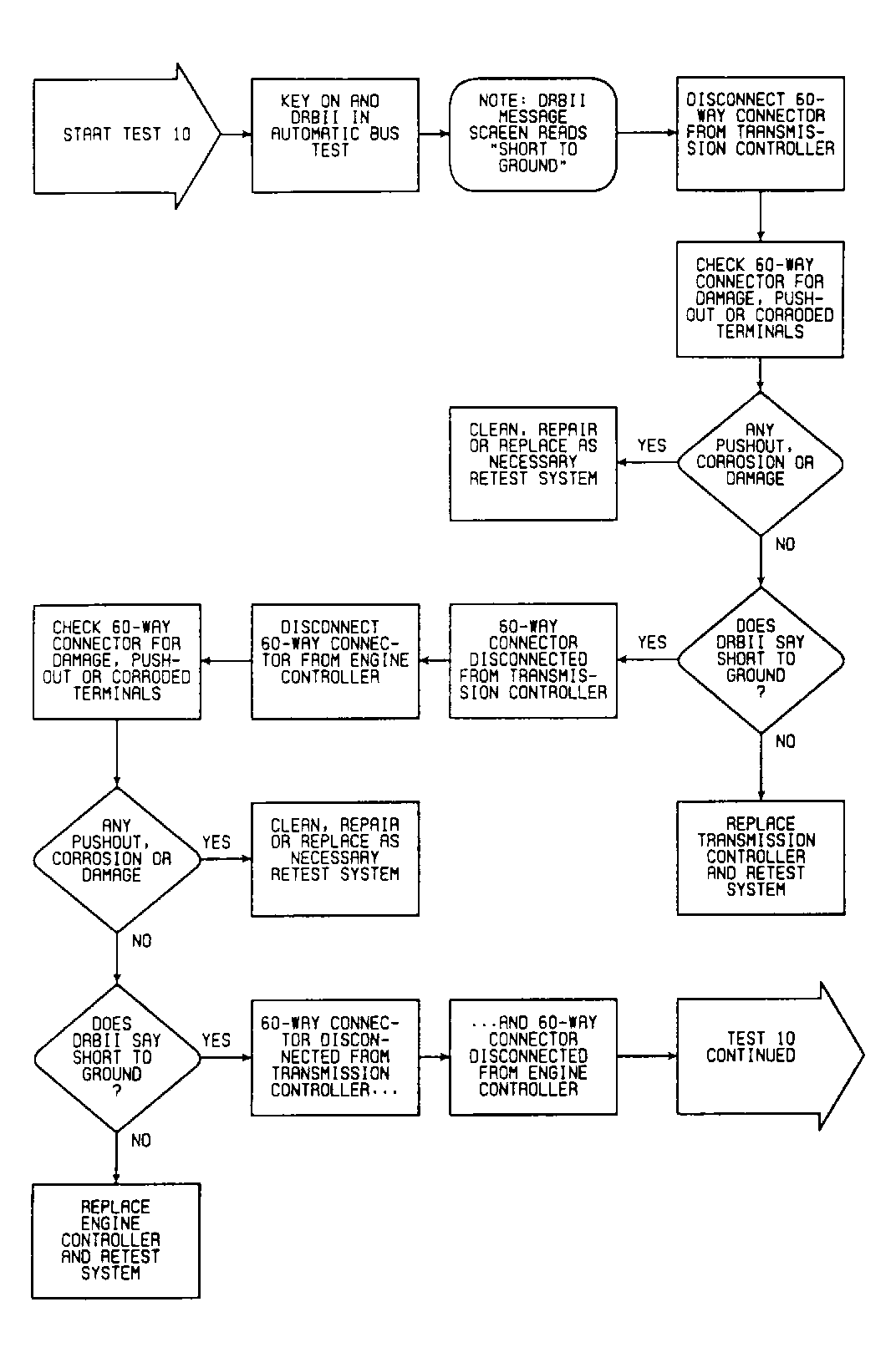

Fig 1: Test 10 Flow Chart (1 of 2)

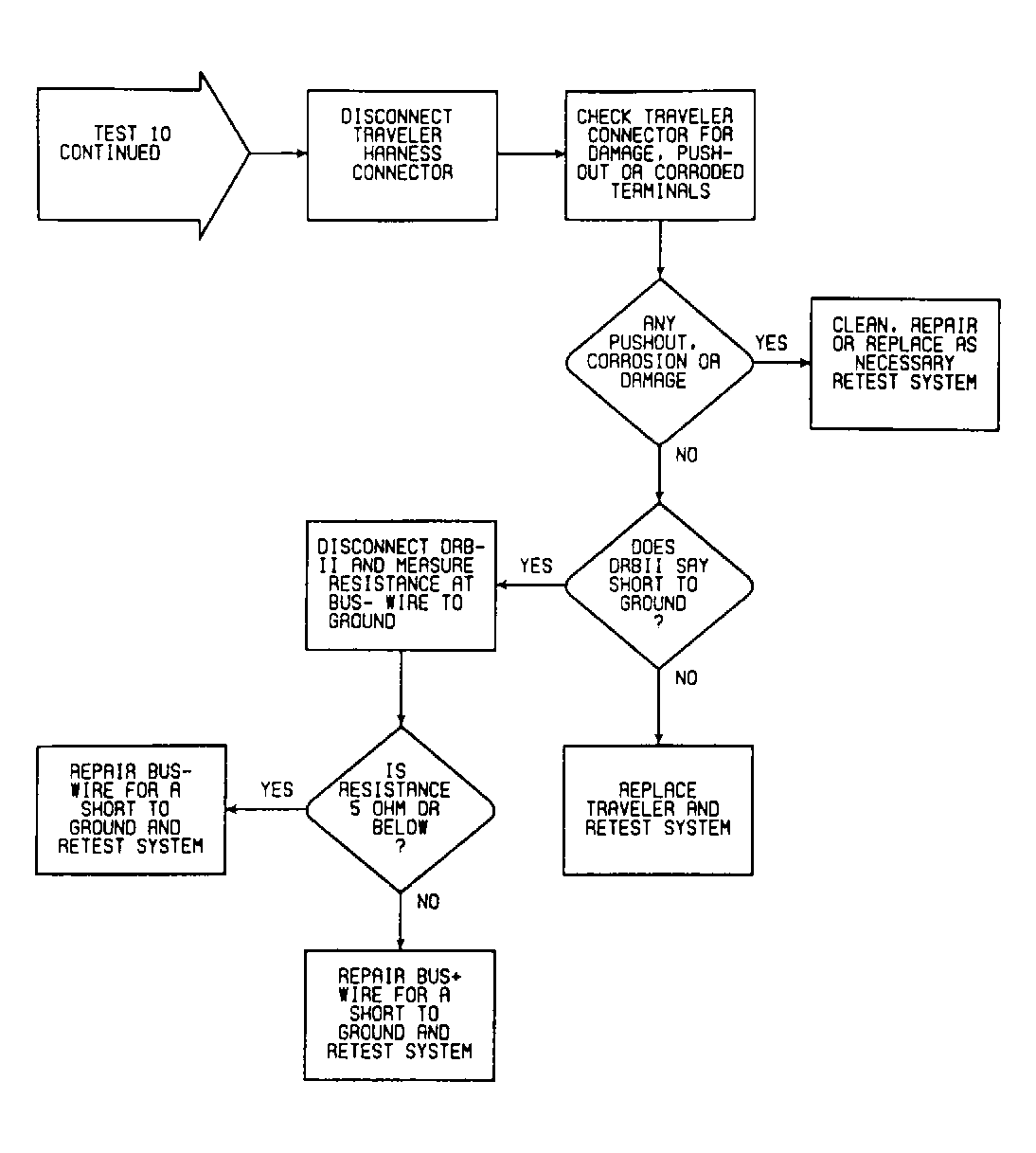

Fig 2: Test 10 Flow Chart (2 of 2)
