Engine Controls - Tests W/O Codes - BCC
›
Test 14: Check For No Response From Engine Controller
Test 14: Check For No Response From Engine Controller

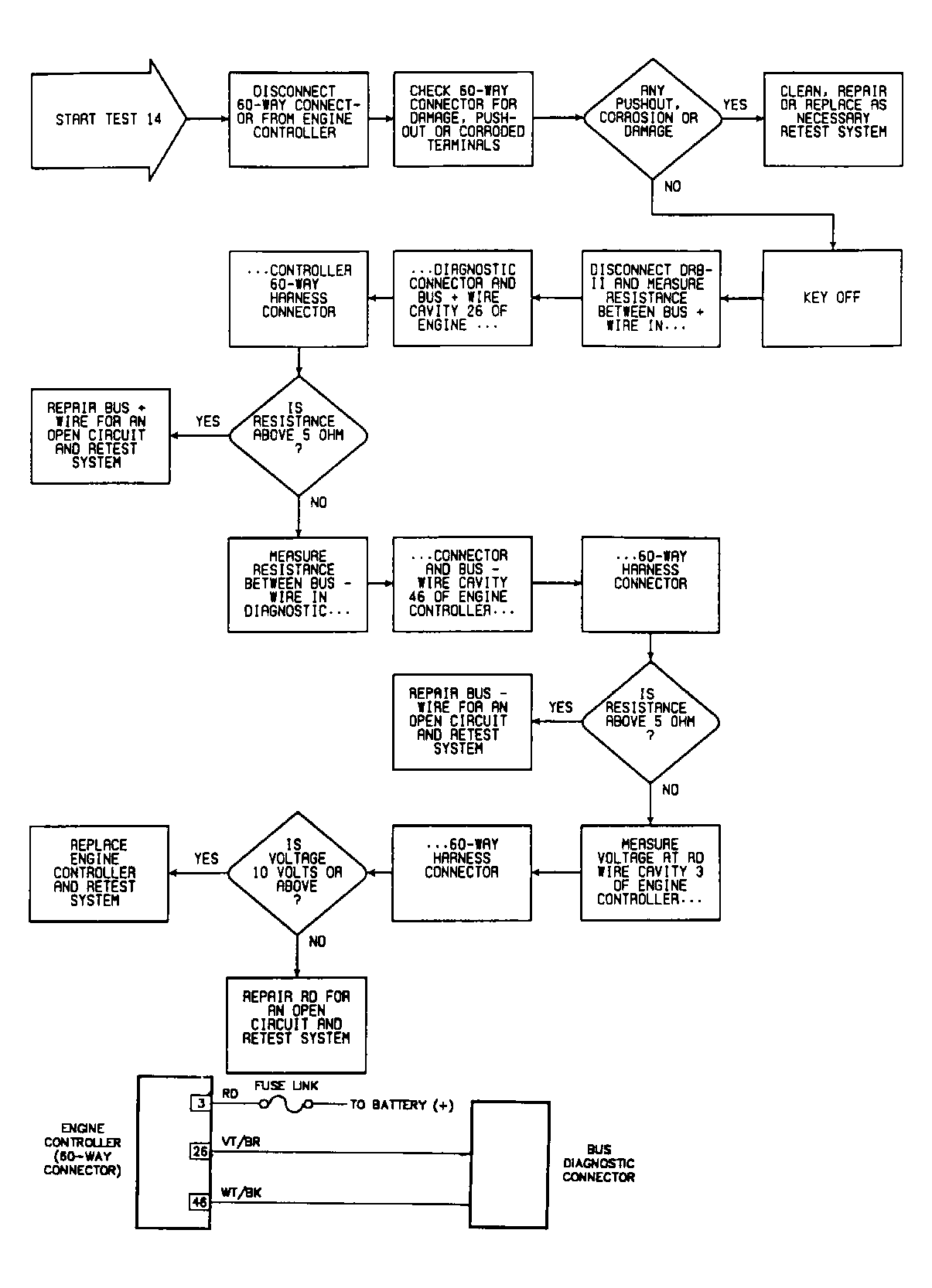

Fig 1: Test 14 Circuit Diagram & Flow Chart
