Lighting Switch

Remove the knee protector and column cover. Disconnect the column switch left connector (16 terminals) and check the continuity between the terminals for each switch. See Fig 1 .

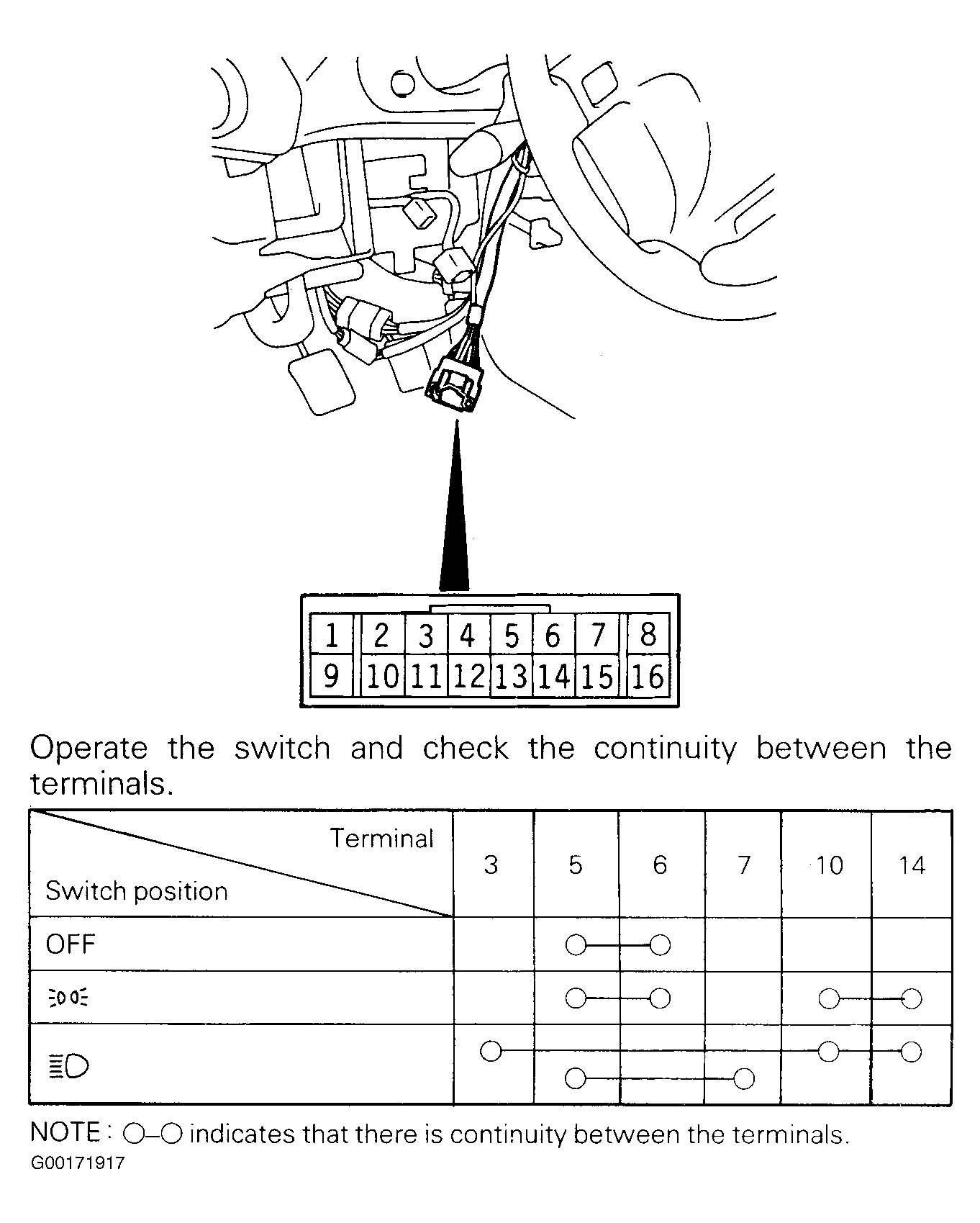

Fig 1: Inspecting Lighting Switch

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
