Dr-12: Code 41, Fuel Injector Circuit

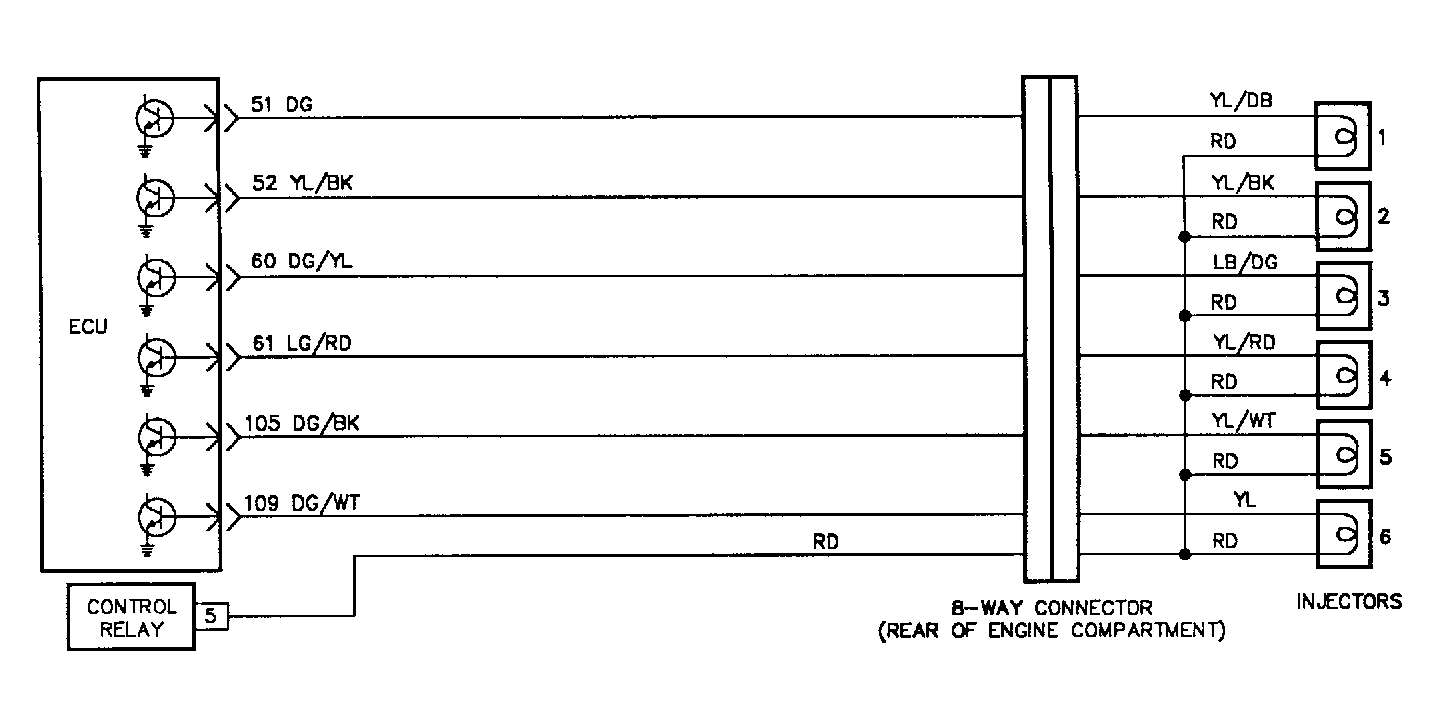

Fig 1: Test DR-12 Schematic - Code 41 Fuel Injector Circuit

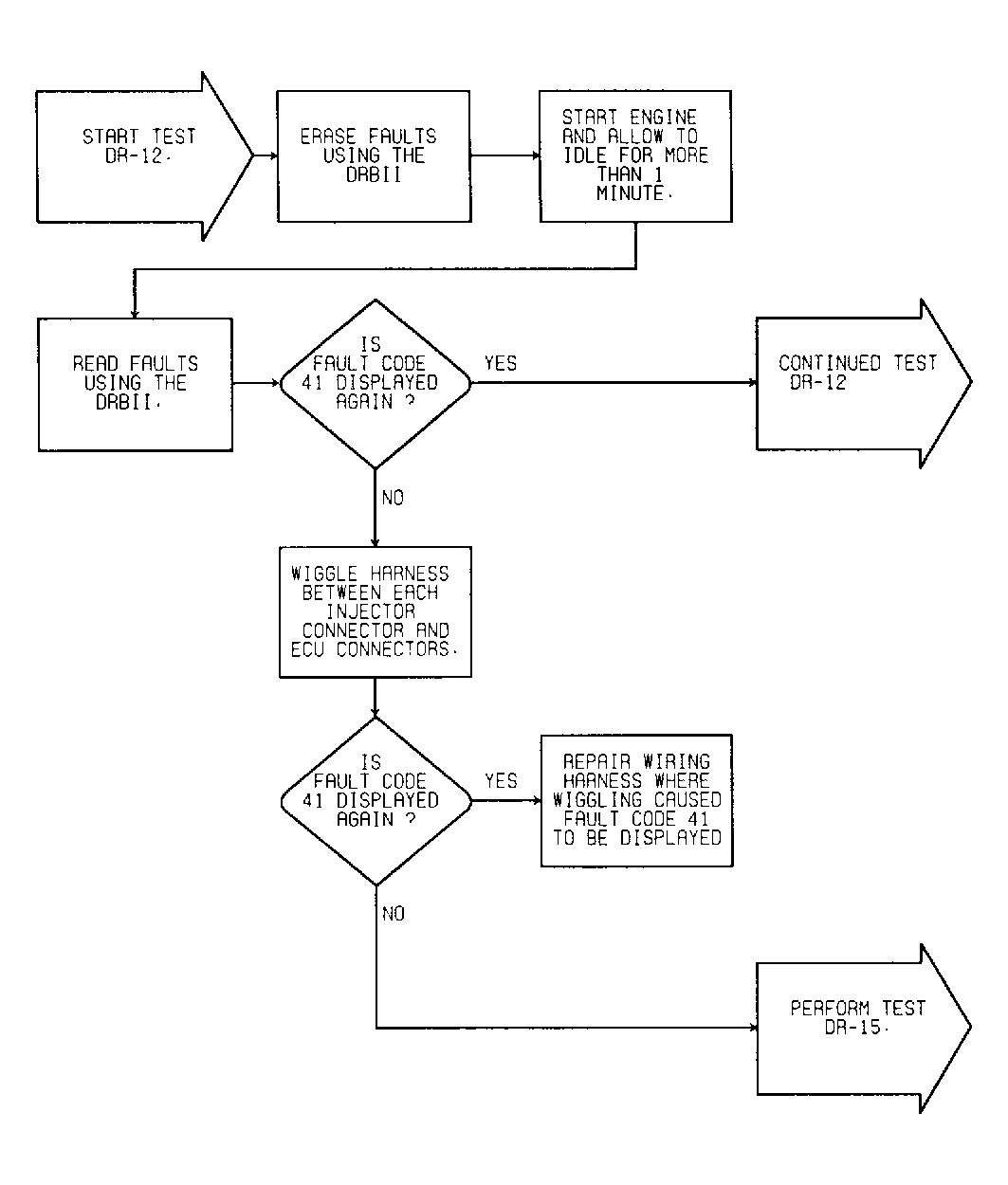

Fig 2: Test DR-12 Flow Chart - Code 41 (1 Of 7) Fuel Injector Circuit

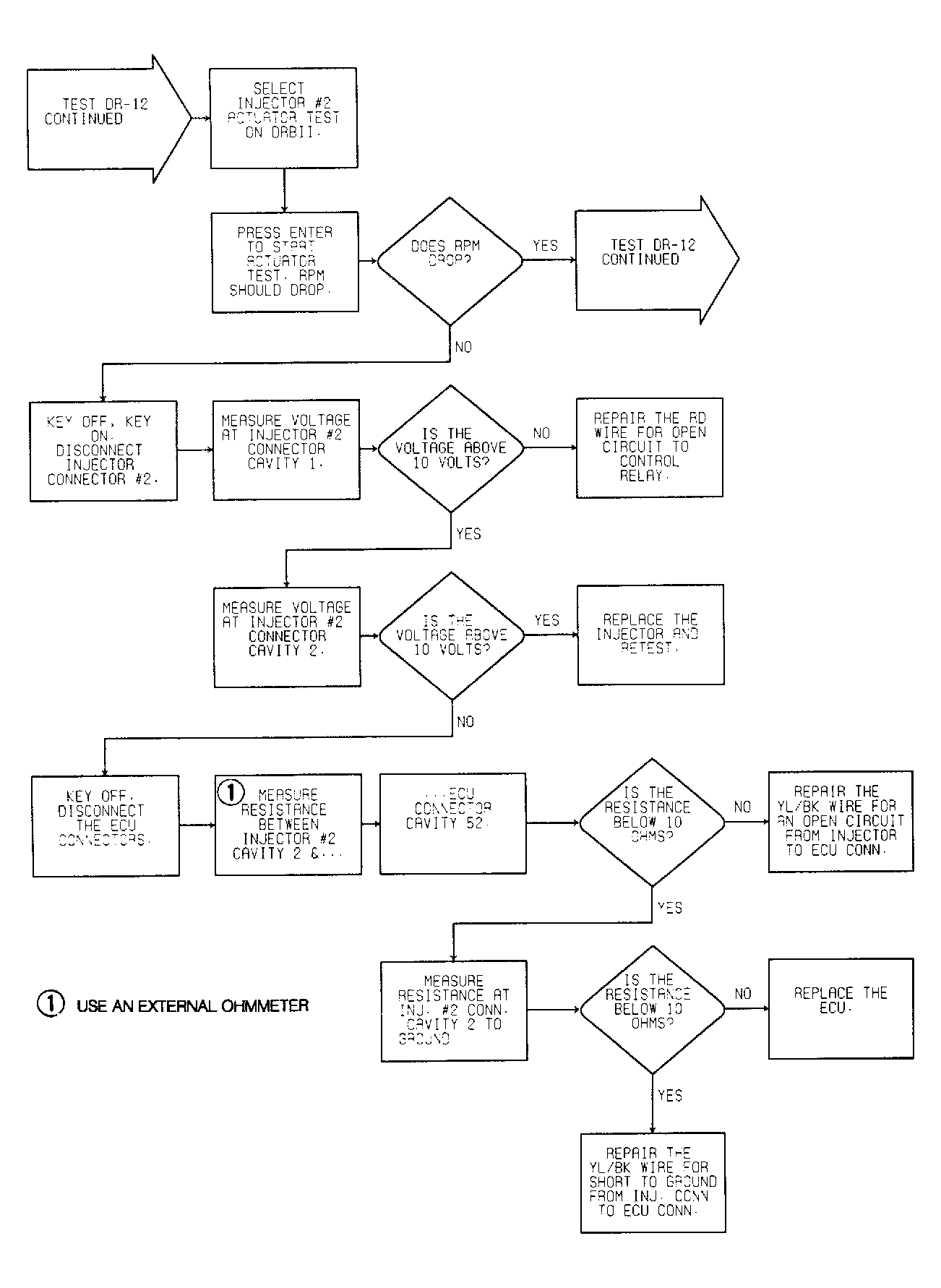

Fig 3: Test DR-12 Flow Chart - Code 41 (2 Of 7) Fuel Injector Circuit

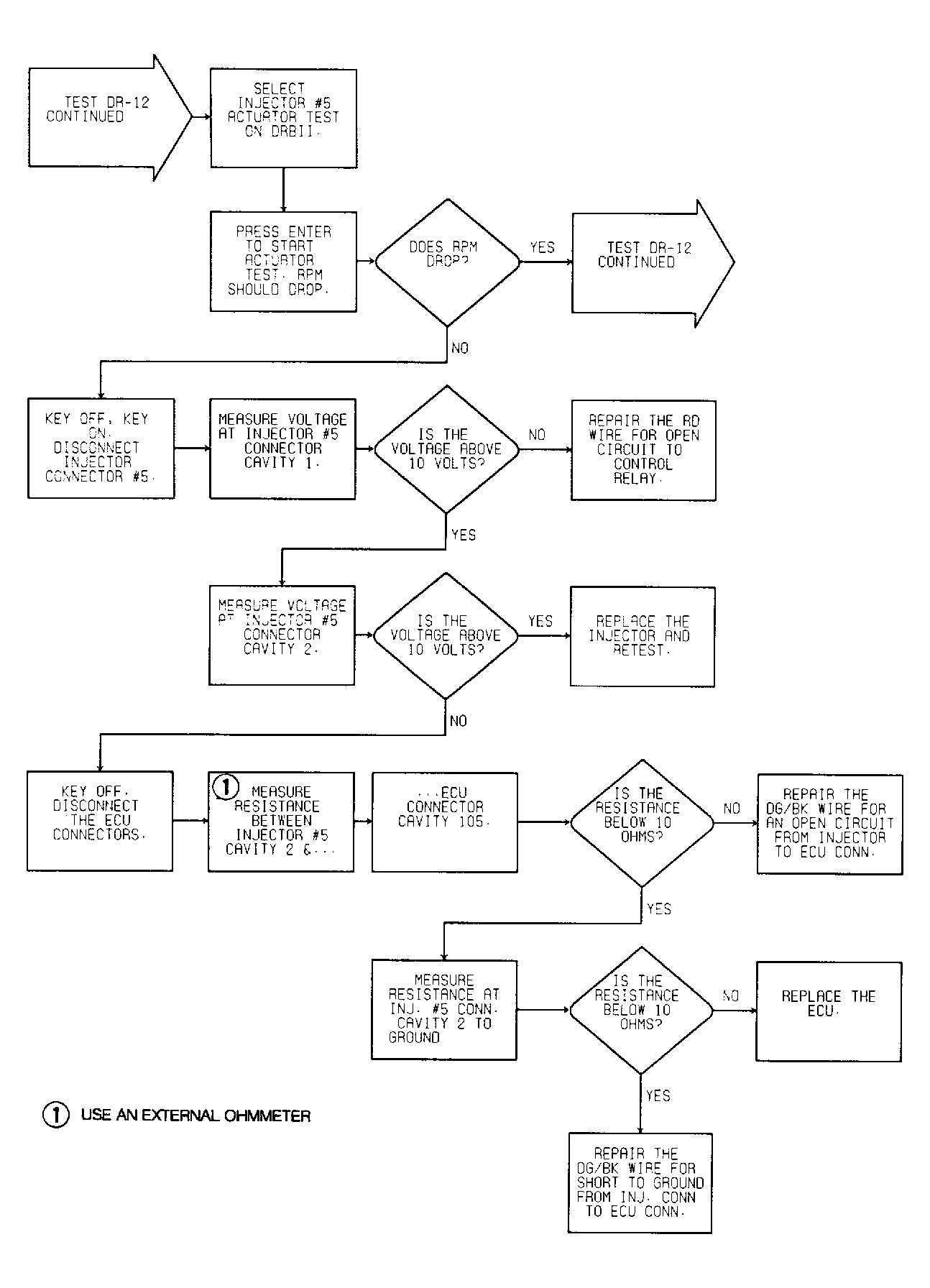

Fig 4: Test DR-12 Flow Chart - Code 41 (3 Of 7) Fuel Injector Circuit

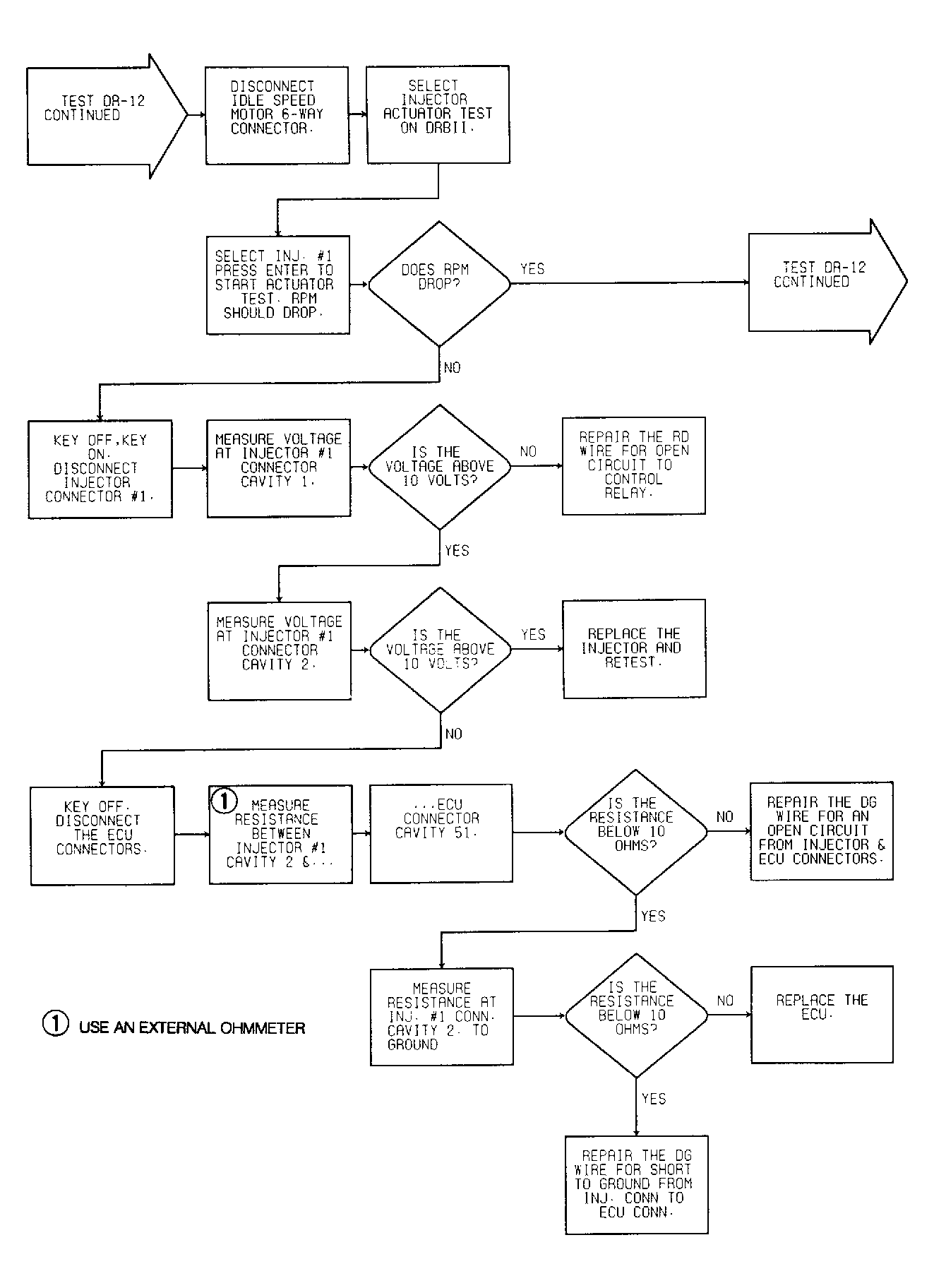

Fig 5: Test DR-12 Flow Chart - Code 41 (4 Of 7) Fuel Injector Circuit

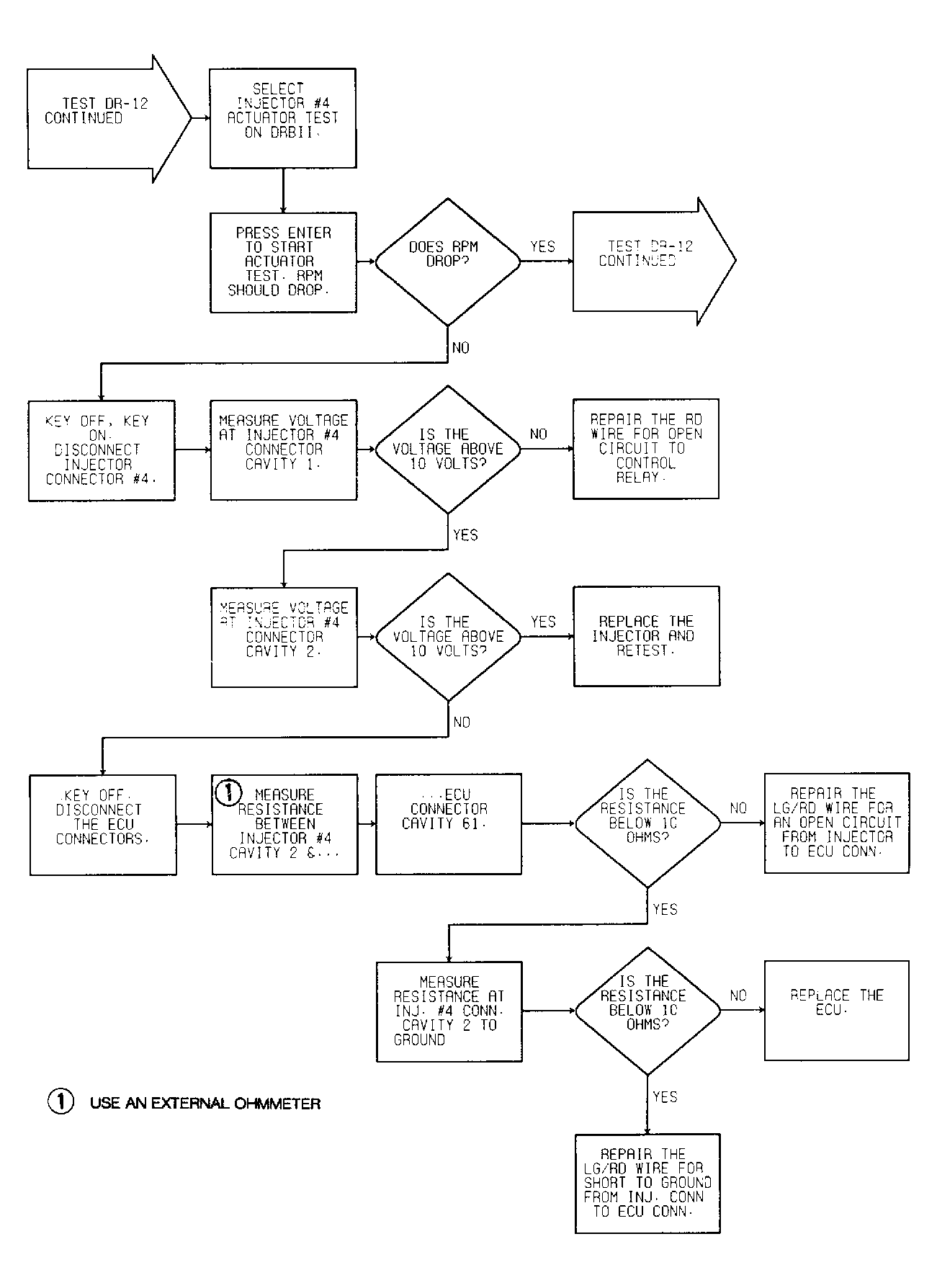

Fig 6: Test DR-12 Flow Chart - Code 41 (5 Of 7) Fuel Injector Circuit

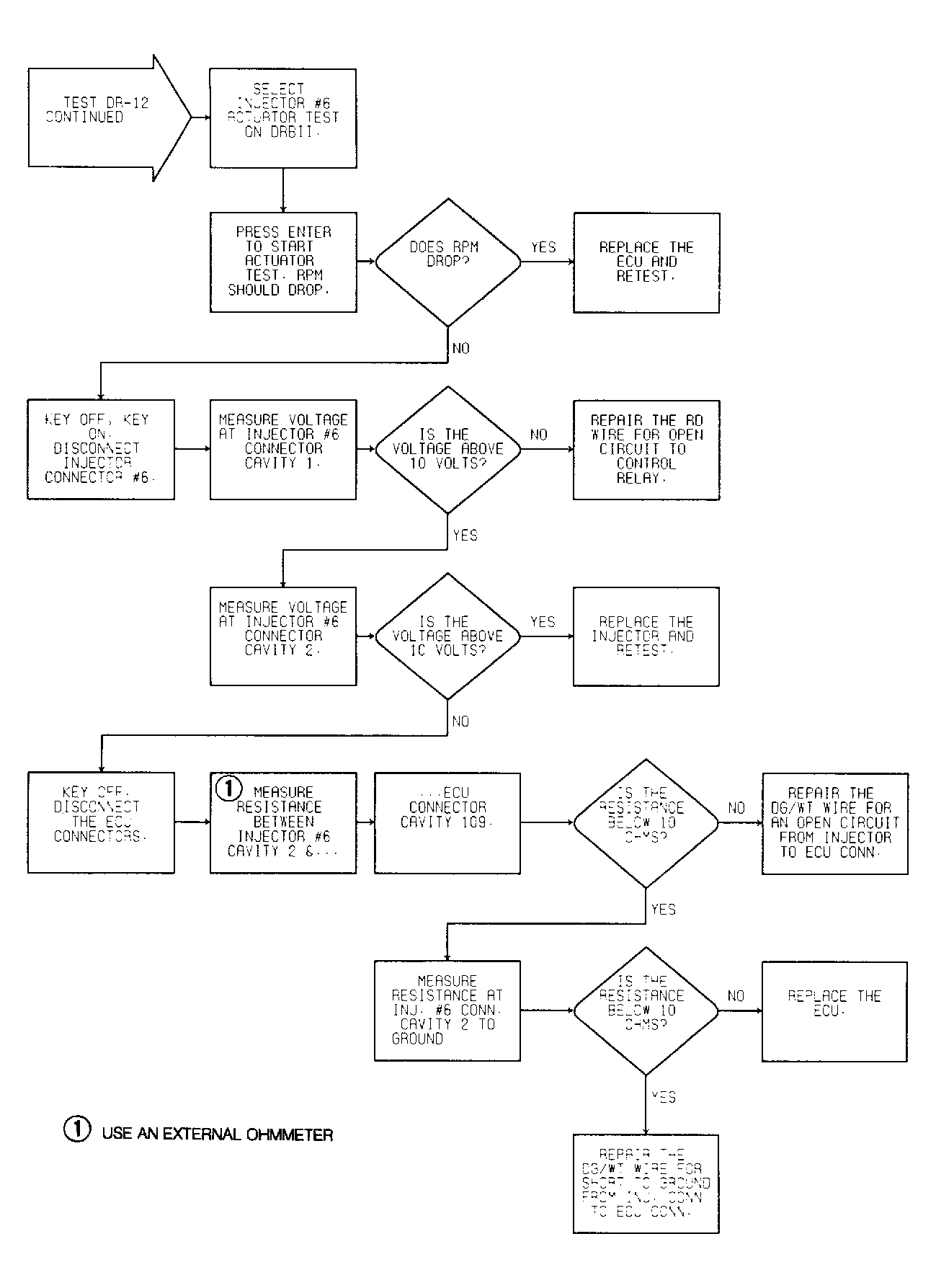

Fig 7: Test DR-12 Flow Chart - Code 41 (6 Of 7) Fuel Injector Circuit

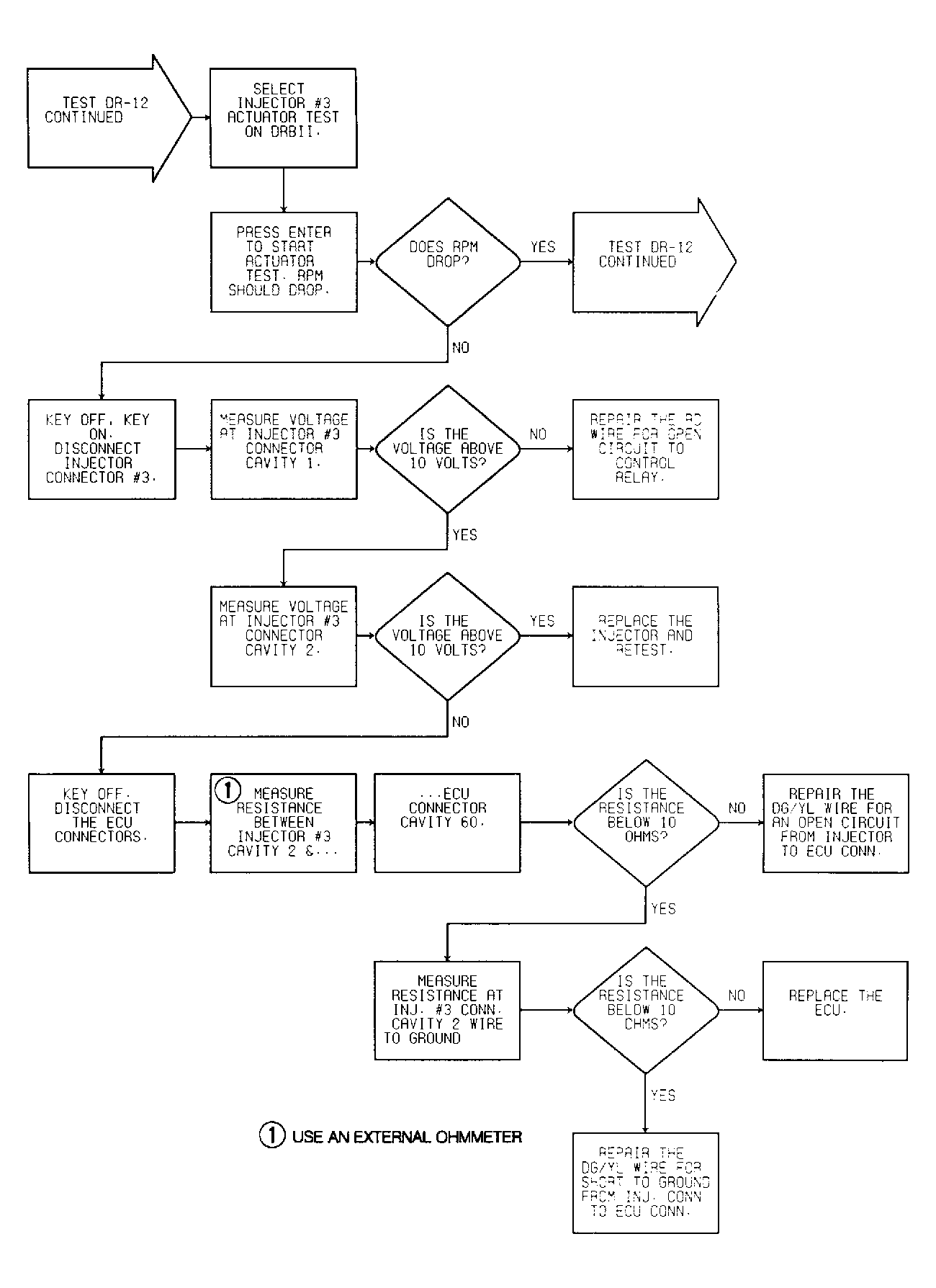

Fig 8: Test DR-12 Flow Chart - Code 41 (7 Of 7) Fuel Injector Circuit
