Dr-15: No Fault Code Switch Tests

Fig 1: Test DR-15 Schematic No Fault Code Switch Tests

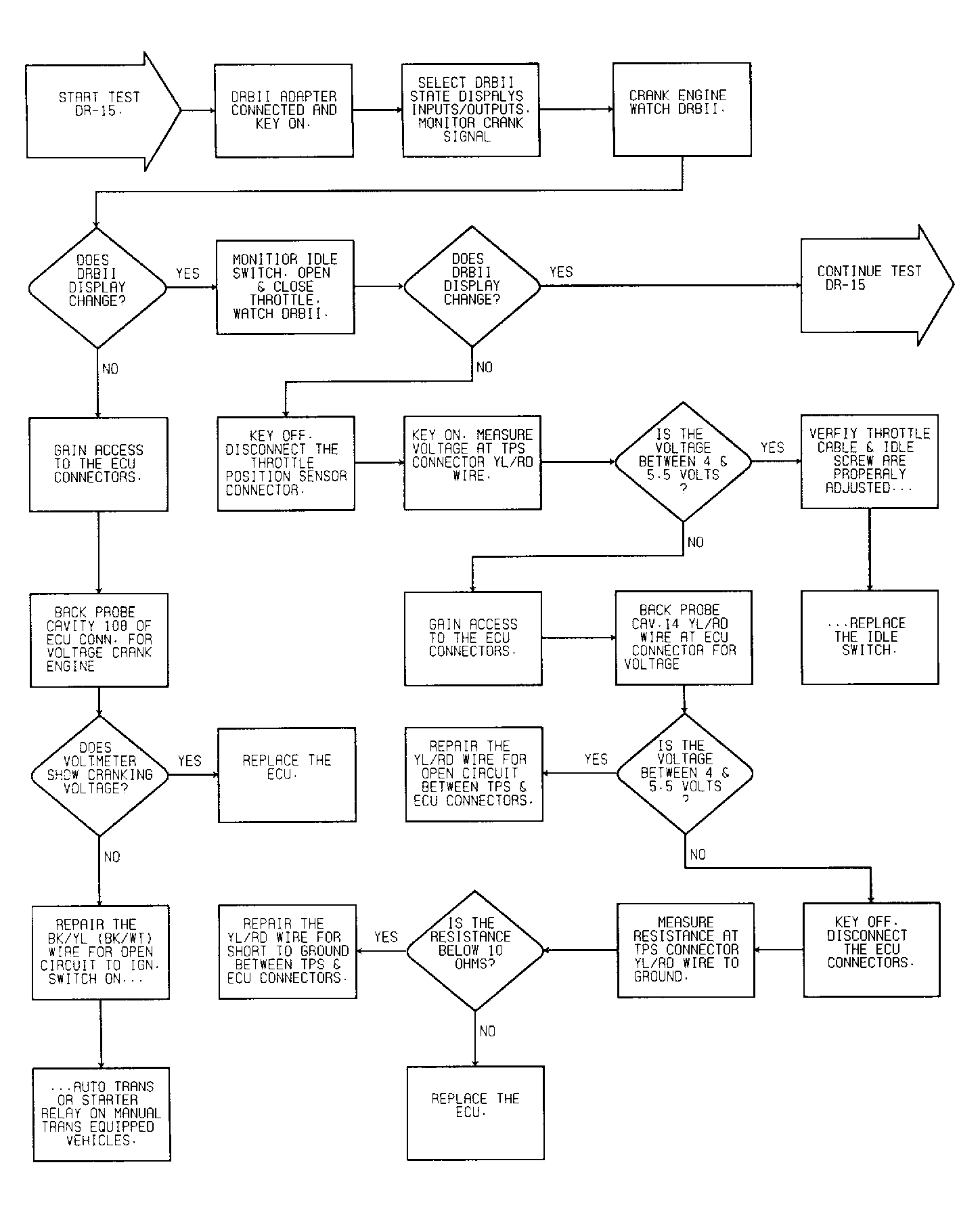

Fig 2: Test DR-15 Flow Chart (1 Of 3) No Fault Code Switch Tests

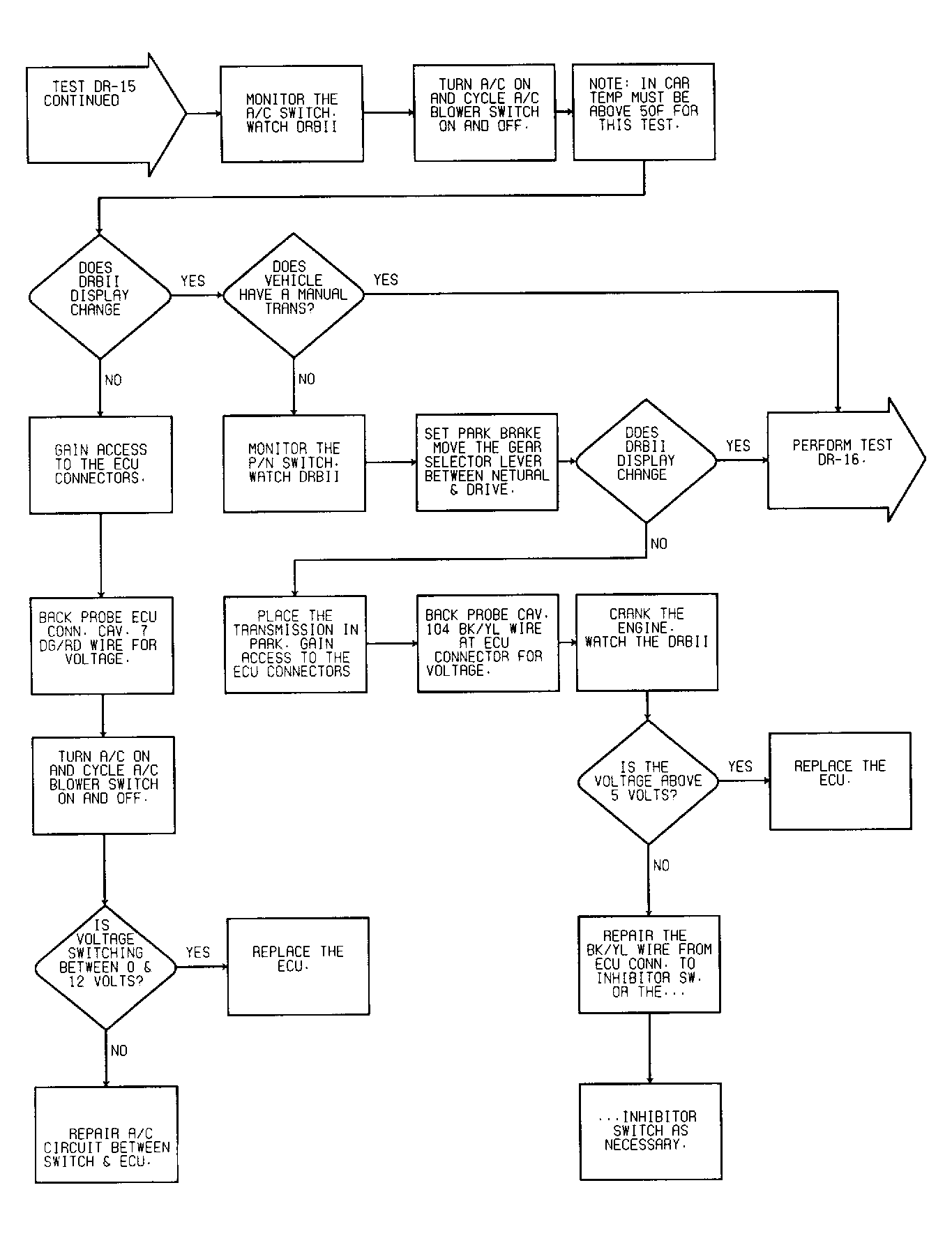

Fig 3: Test DR-15 Flow Chart (2 Of 3) No Fault Code Switch Tests

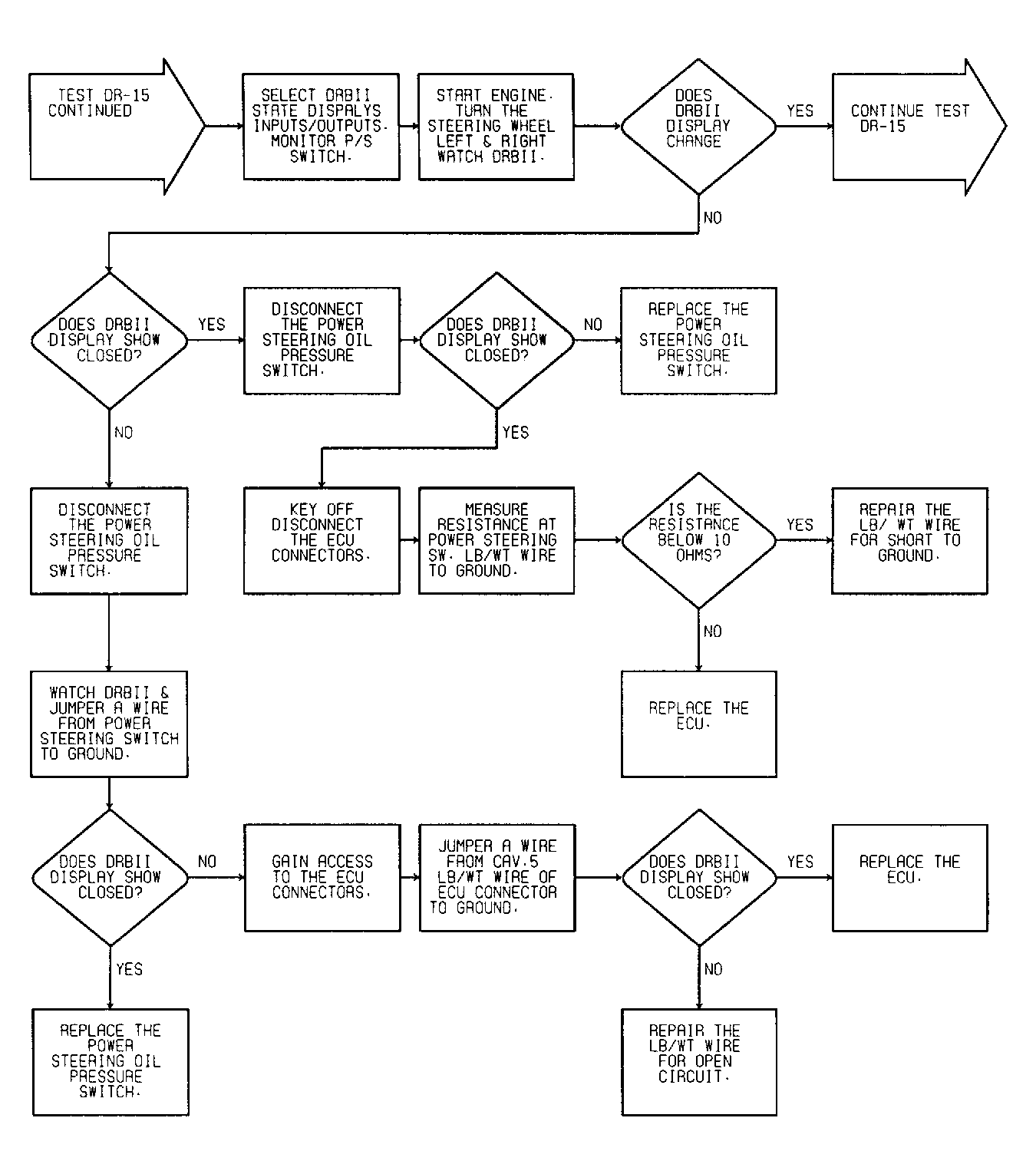

Fig 4: Test DR-15 Flow Chart (3 Of 3) No Fault Code Switch Tests
