NS-5: Testing Fuel Pump Circuit

Fig 1: Test NS-5 Schematic Testing Fuel Pump Circuit

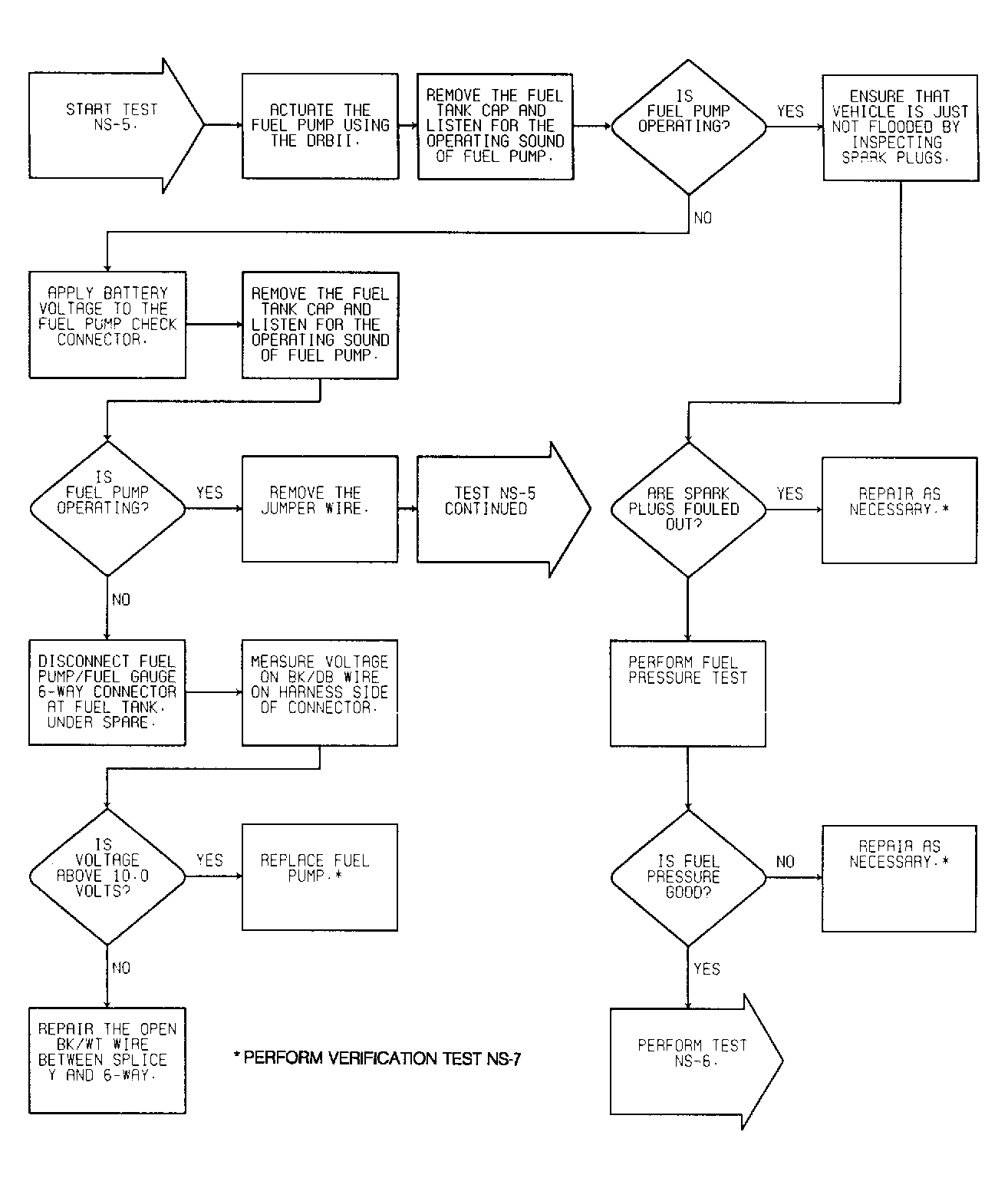

Fig 2: Test NS-5 Flow Chart (1 Of 2) Testing Fuel Pump Circuit

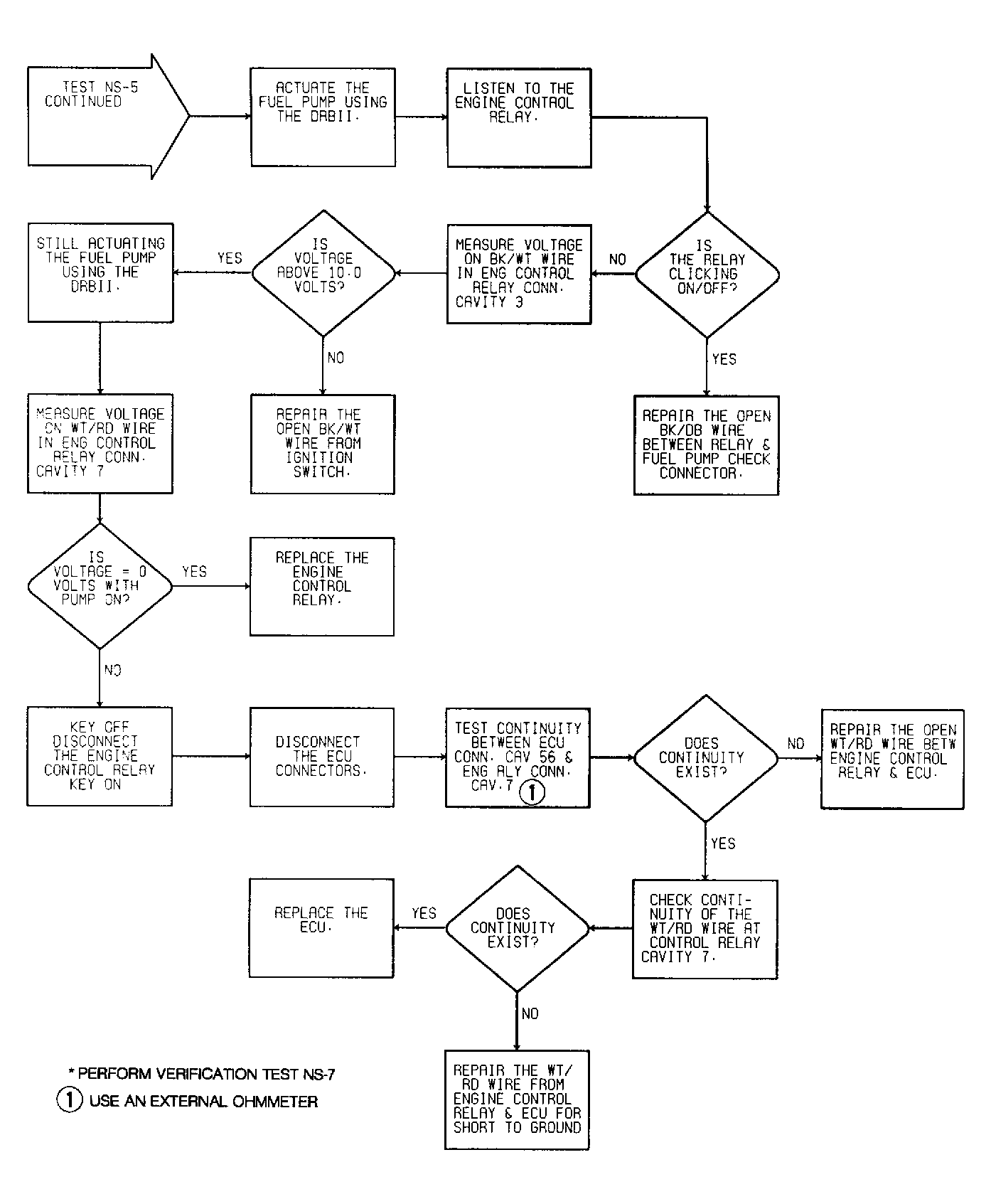

Fig 3: Test NS-5 Flow Chart (2 Of 2) Testing Fuel Pump Circuit
