Dr-1: Testing For Fault Codes

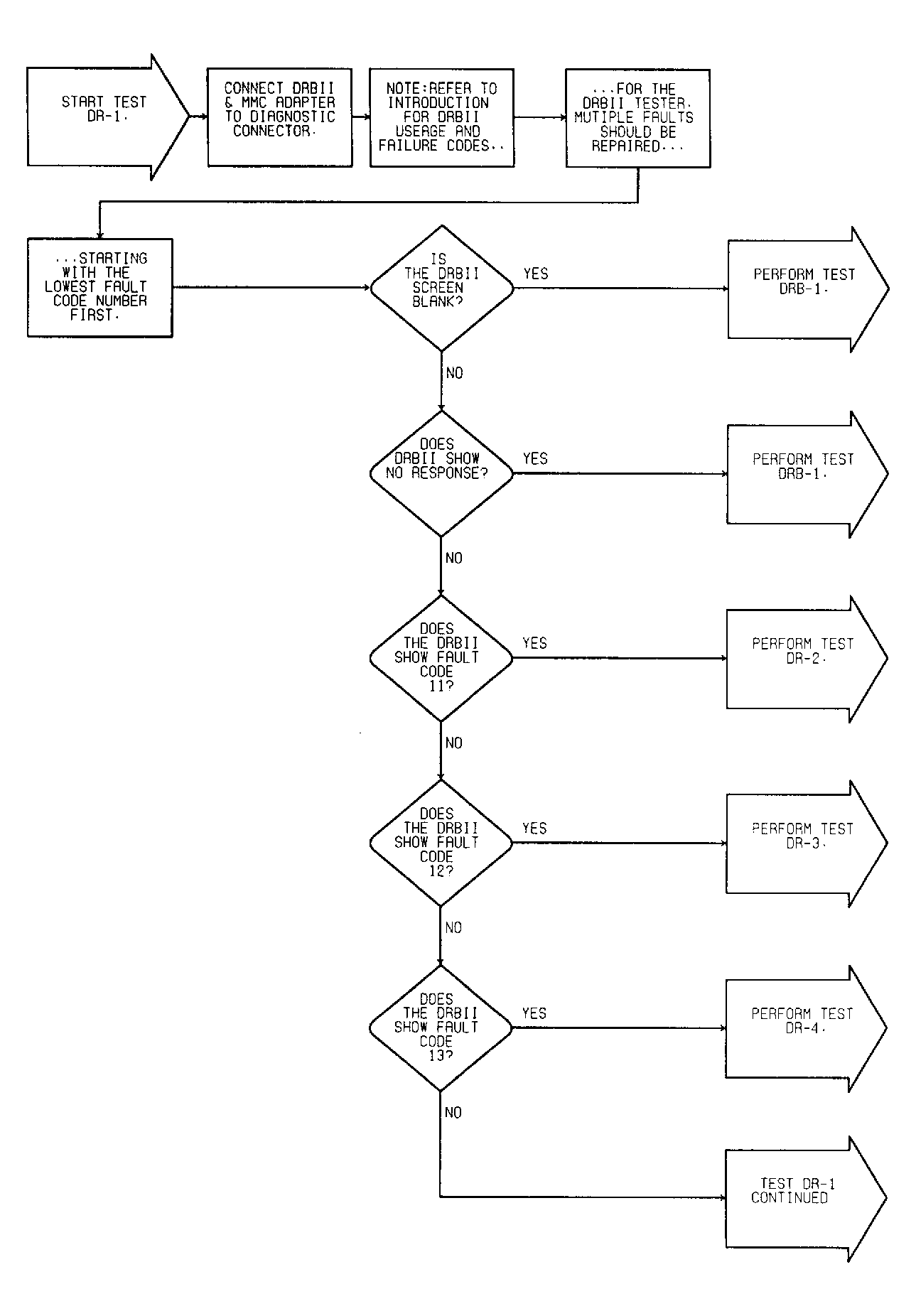

Fig 1: Test DR-1 Flow Chart (1 Of 2) Testing For Fault Codes

G92I26052

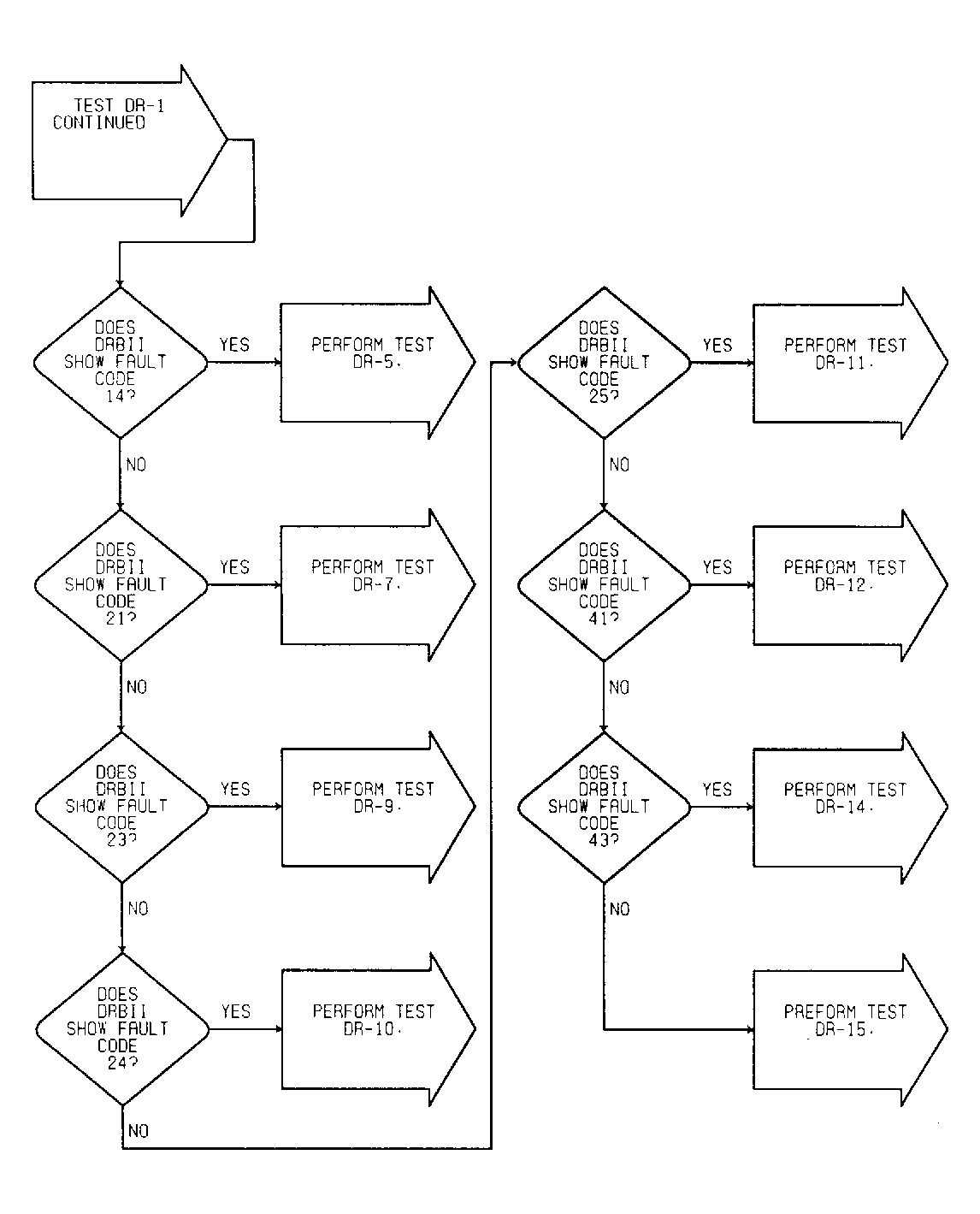

Fig 2: Test DR-1 Flow Chart (2 Of 2) Testing For Fault Codes

G92J26053
