Switch Test

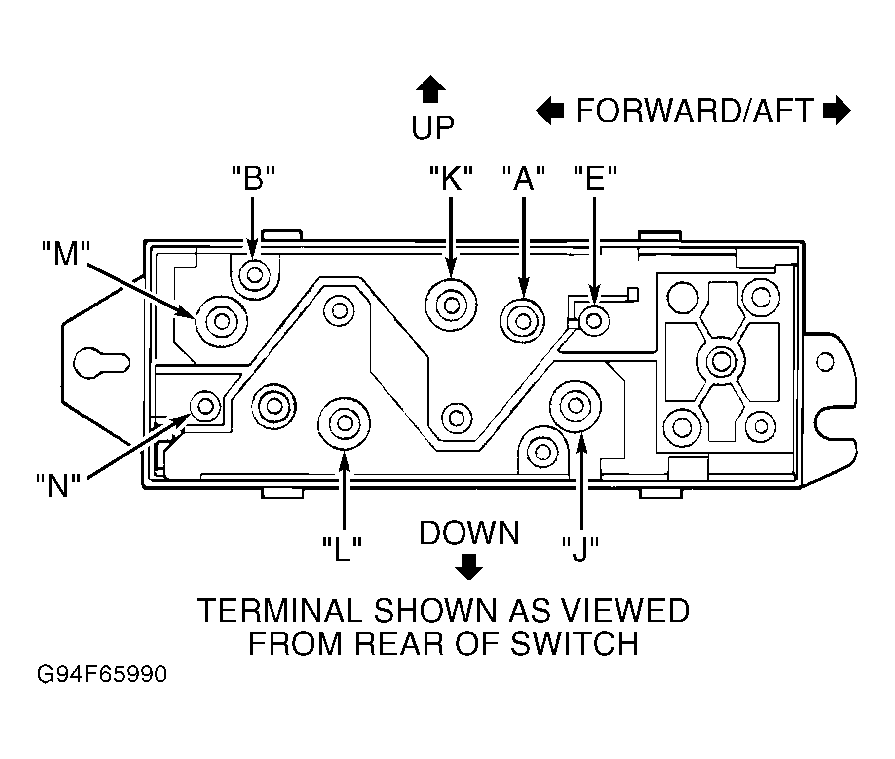

Remove switch from mounting position. See SWITCH under REMOVAL & INSTALLATION. Using an ohmmeter, check continuity between power seat switch terminals as indicated. See CONTINUITY SWITCH TEST table. See Fig 1 . If there is no continuity at any one of the switch positions, replace switch. If there is continuity at all switch positions, switch is okay.
CONTINUITY SWITCH TEST
| Switch Position | Continuity Between |
|---|---|
| Off | B-N, B-J, B-J, B-E, B-K, B-L |
| Vertical Up | B-M, B-E, A-N, A-J |
| Vertical Down | B-N, B-J, A-M, A-E |
| Horizontal Forward | B-K, A-L |
| Horizontal Aft | B-L, A-K |
| Front Tilt Up | B-M, A-N |
| Front Tilt Down | B-N, A-M |
| Rear Tilt Up | B-E, A-J |
| Rear Tilt Down | B-J, A-E |
