TC-25A: Injector Control Circuit

Fig 1: TC-25A: Injector Control Circuit (1 Of 3)

Courtesy of DAIMLERCHRYSLER CORPORATION

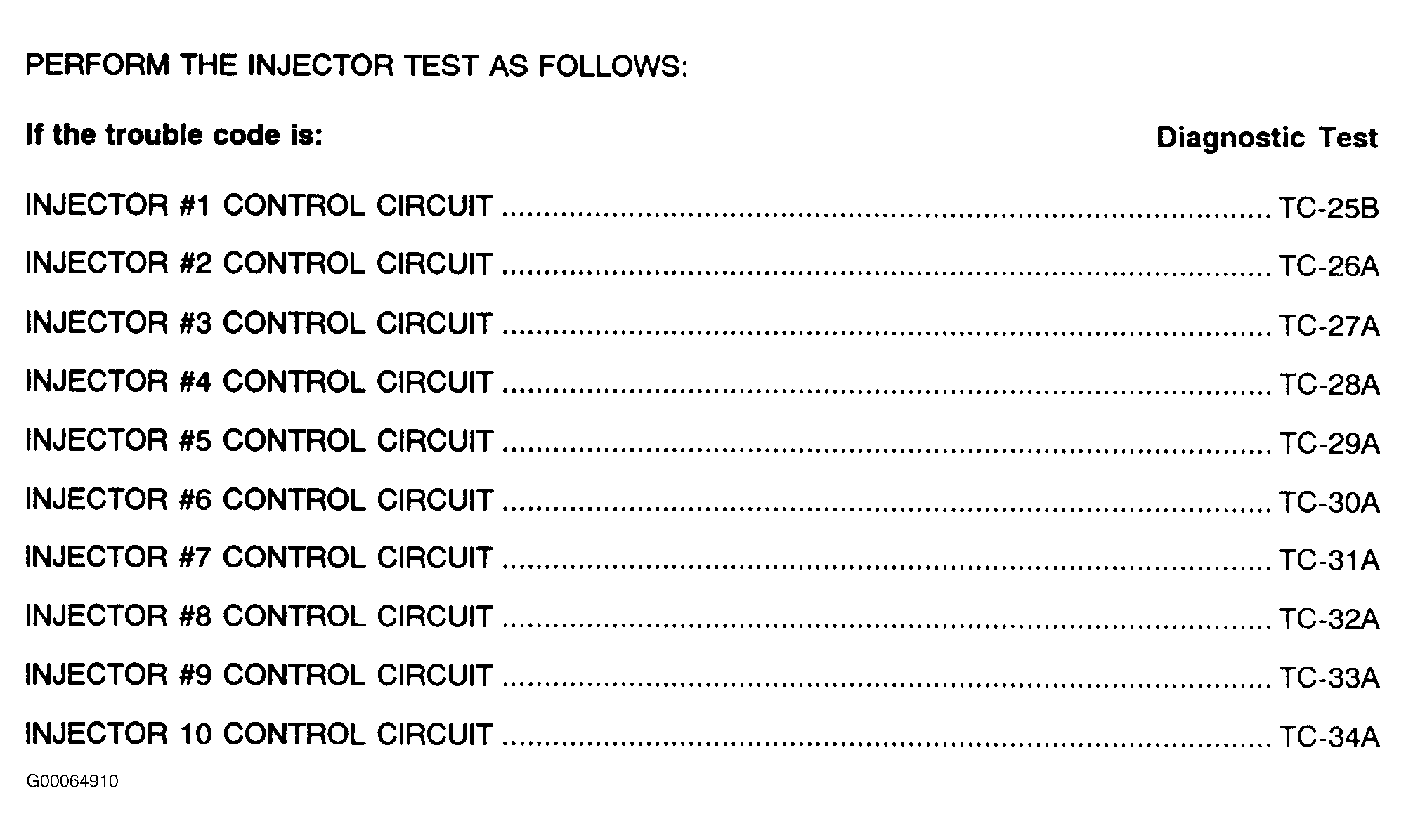

Fig 2: TC-25A: Injector Control Circuit (2 Of 3)

Courtesy of DAIMLERCHRYSLER CORPORATION

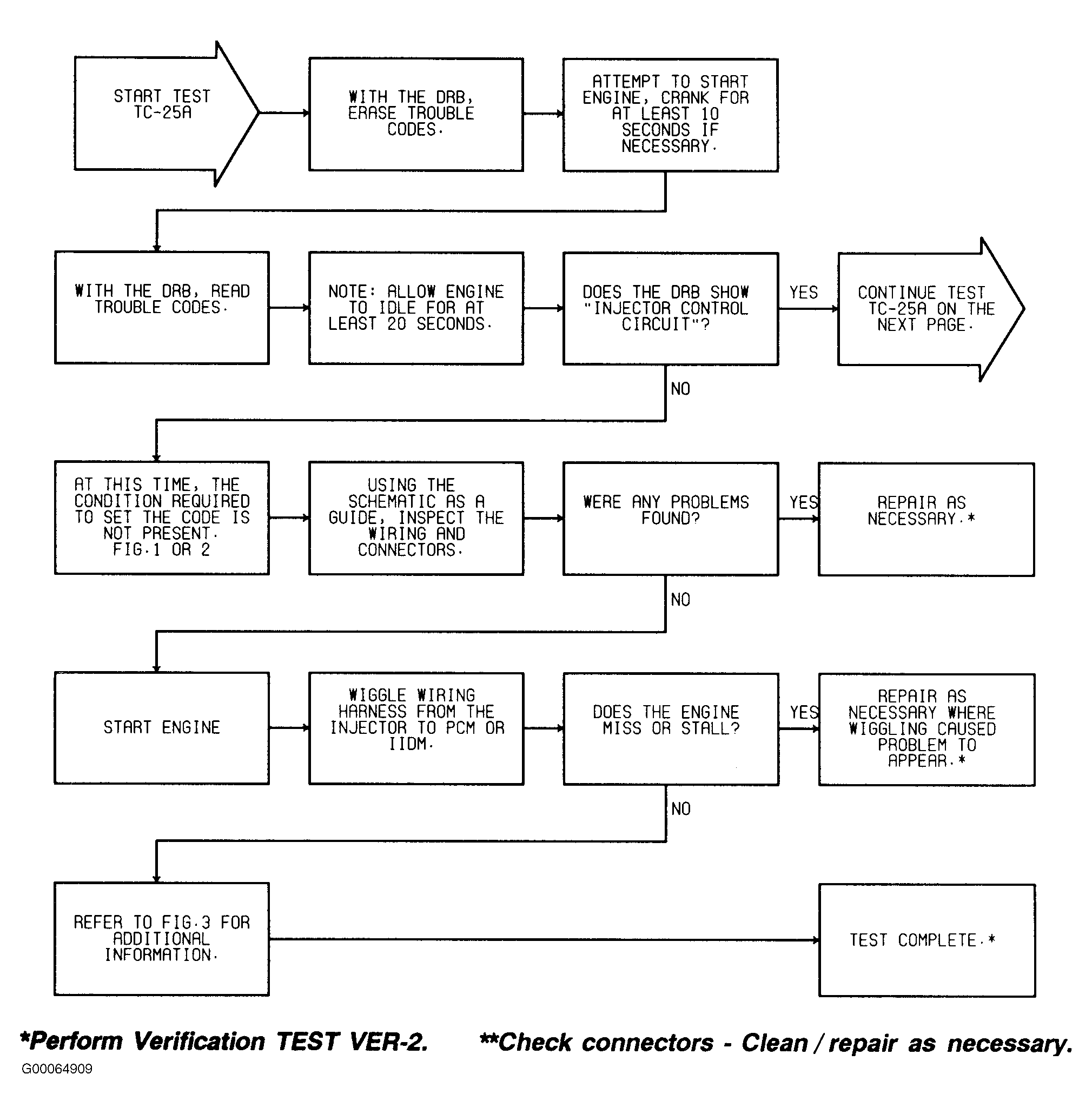

Fig 3: TC-25A: Injector Control Circuit (3 Of 3)

Courtesy of DAIMLERCHRYSLER CORPORATION
