Intake Air Temperature Sensor

The Intake Air Temperature Sensor threads into the air cleaner. The sensor measures air temperature. See Fig 1 . The intake air temperature sensor input is one of the inputs the PCM monitors to determine the required injector pulse width.

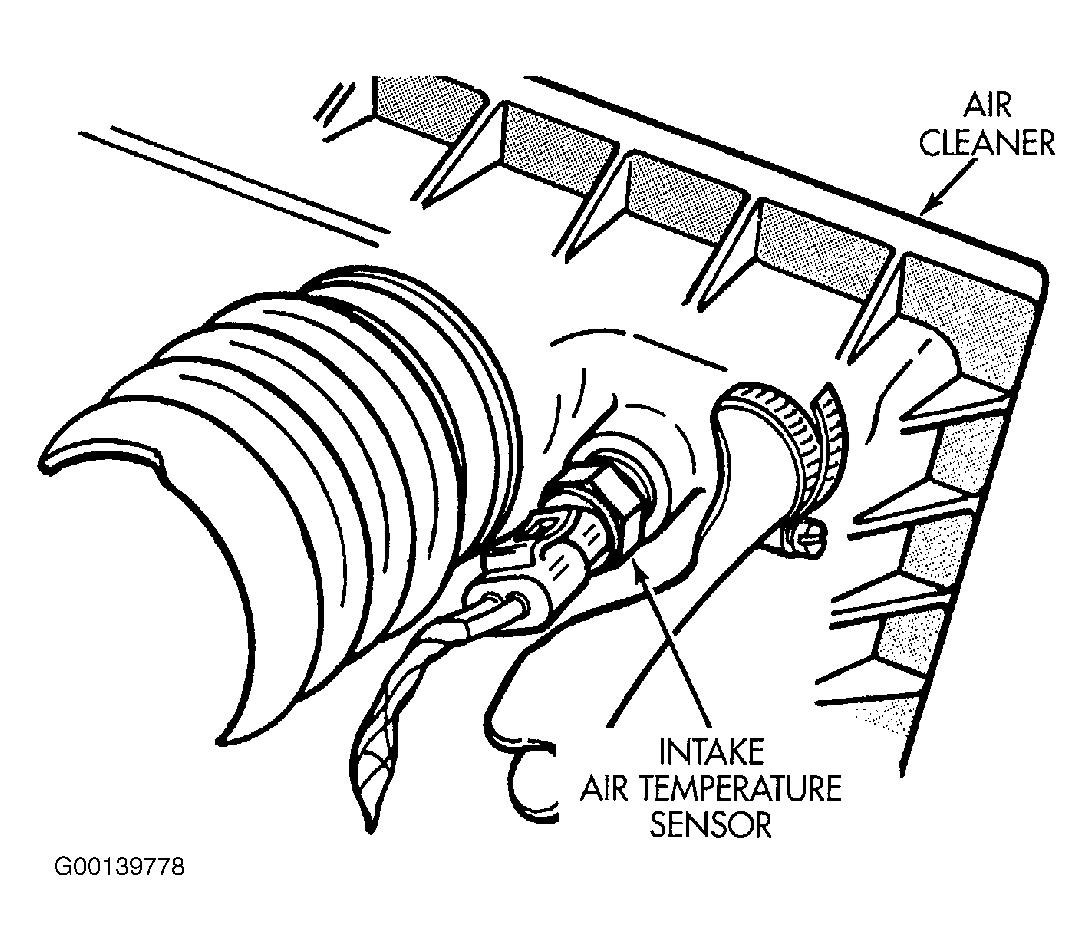

Fig 1: Identifying Air Intake Sensor

Courtesy of CHRYSLER CORP.
