Test 5A: Repairing Ignition Switch Output Circuit To VTSS Module (Run/Acc)

NOTE: Perform Test 1A  before proceeding. For Diagnostic flow chart, see Fig 1 and Fig 2 . For Figure references within flow charts, refer to Fig 3 and Fig 4 .

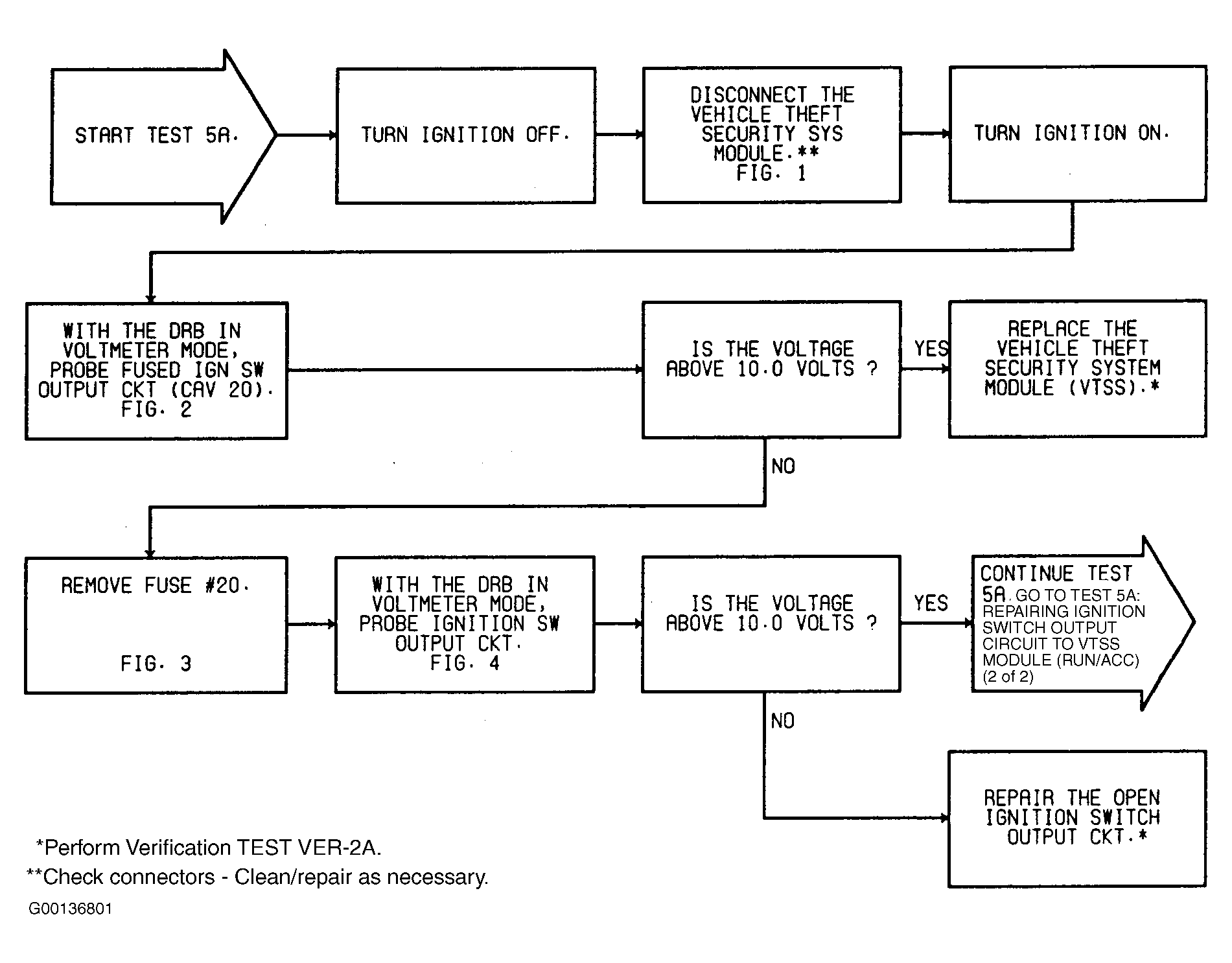

Fig 1: Test 5A: Repairing Ignition Switch Output Circuit To VTSS Module (RUN/ACC) Diagnostic Flow Chart (1 Of 2)

Courtesy of CHRYSLER CORP.

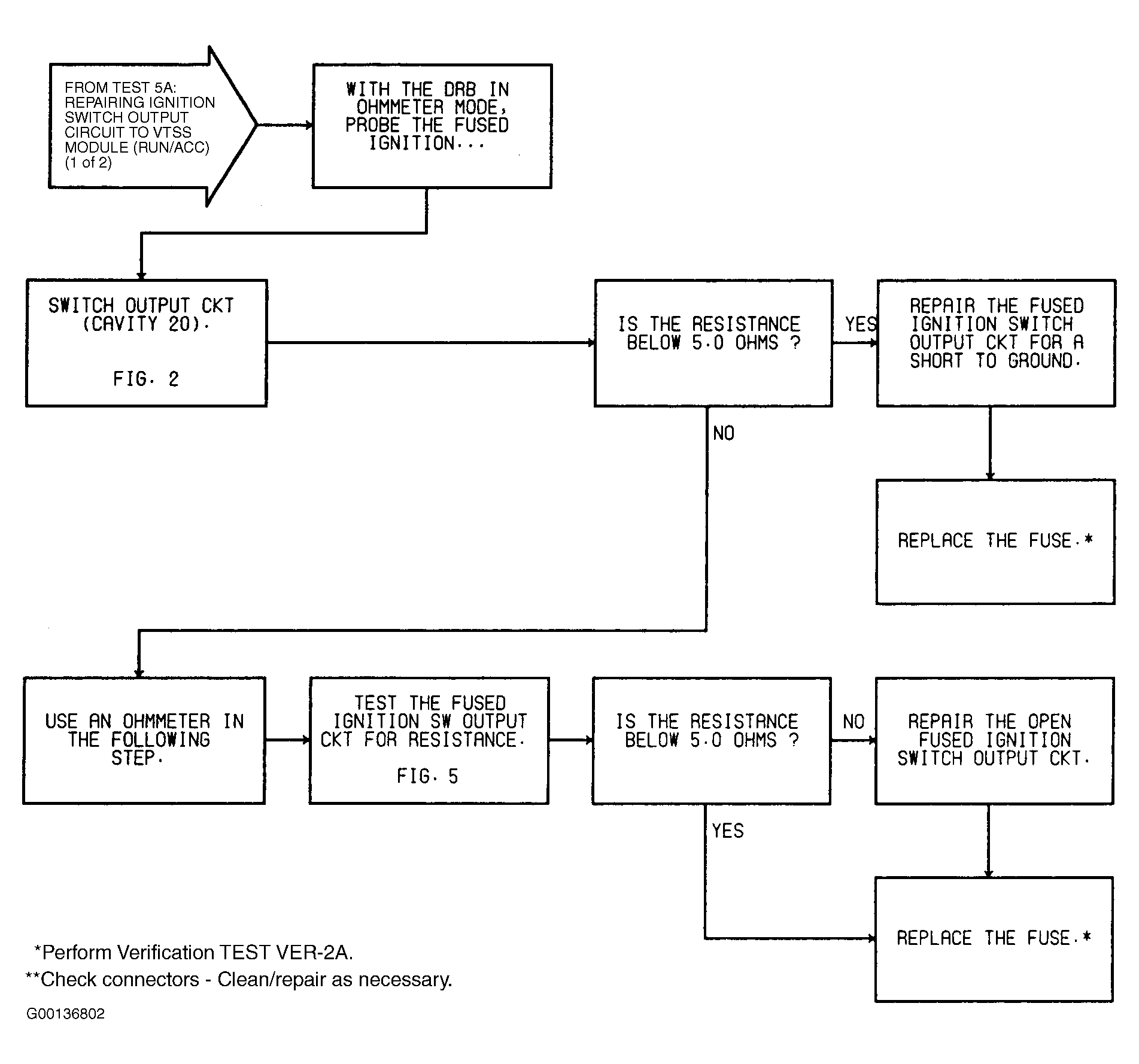

Fig 2: Test 5A: Repairing Ignition Switch Output Circuit To VTSS Module (RUN/ACC) Diagnostic Flow Chart (2 Of 2)

Courtesy of CHRYSLER CORP.

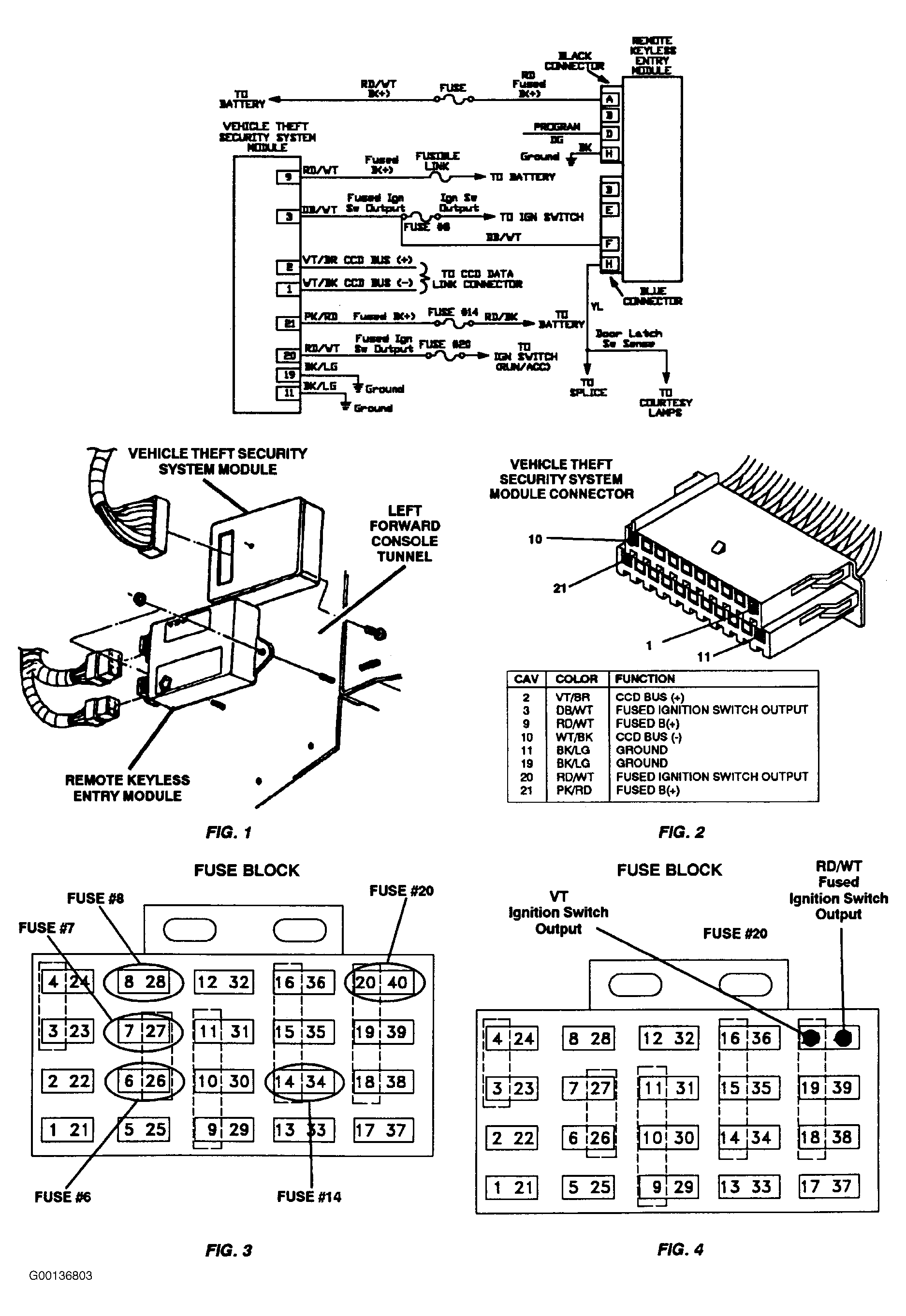

Fig 3: Test 5A: Circuit Connector Views & Component Locations (1 Of 2)

Courtesy of CHRYSLER CORP.

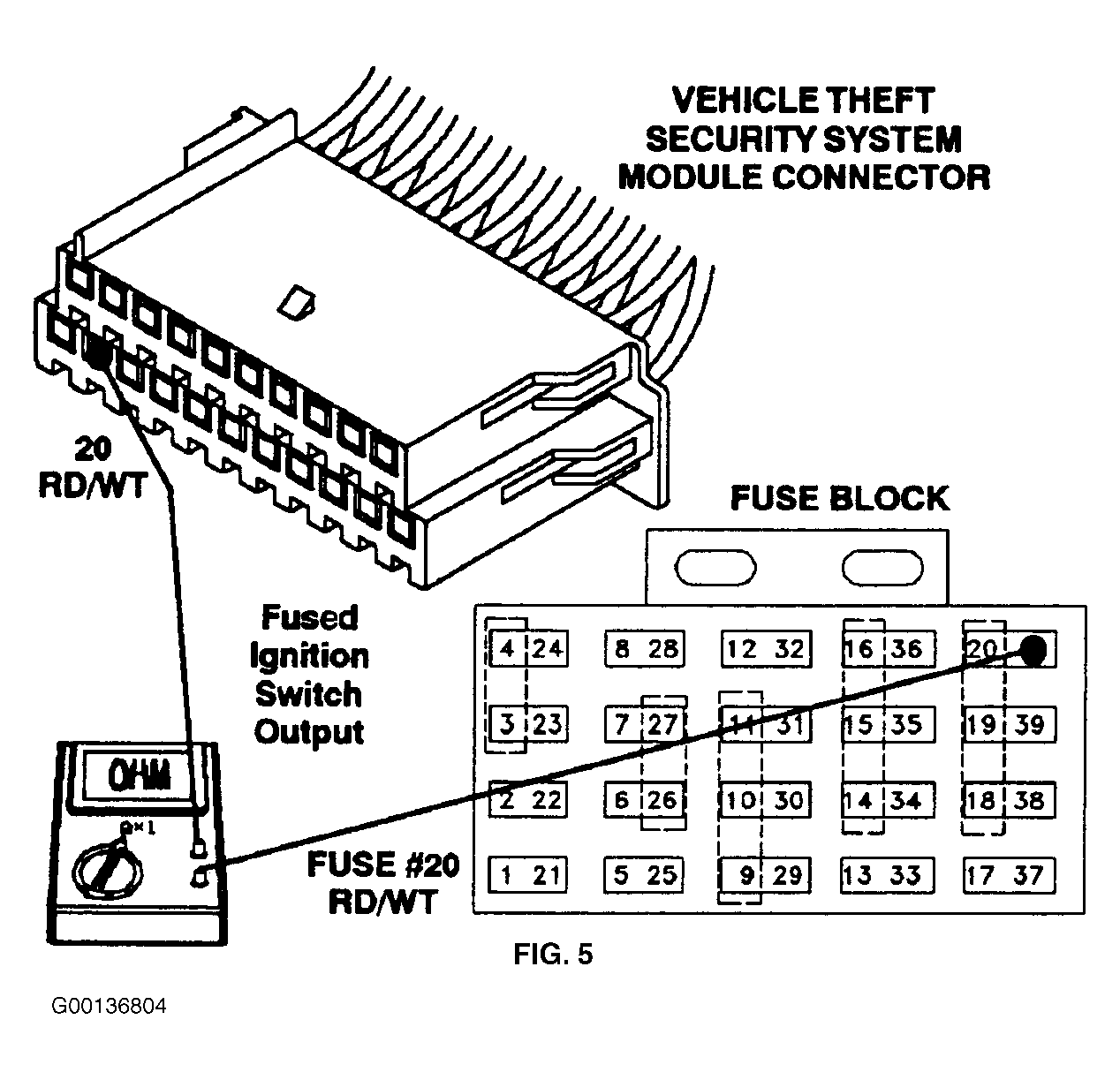

Fig 4: Test 5A: Circuit Connector Views & Component Locations

Courtesy of CHRYSLER CORP.
