Ignition/Injector Driver Module Connector

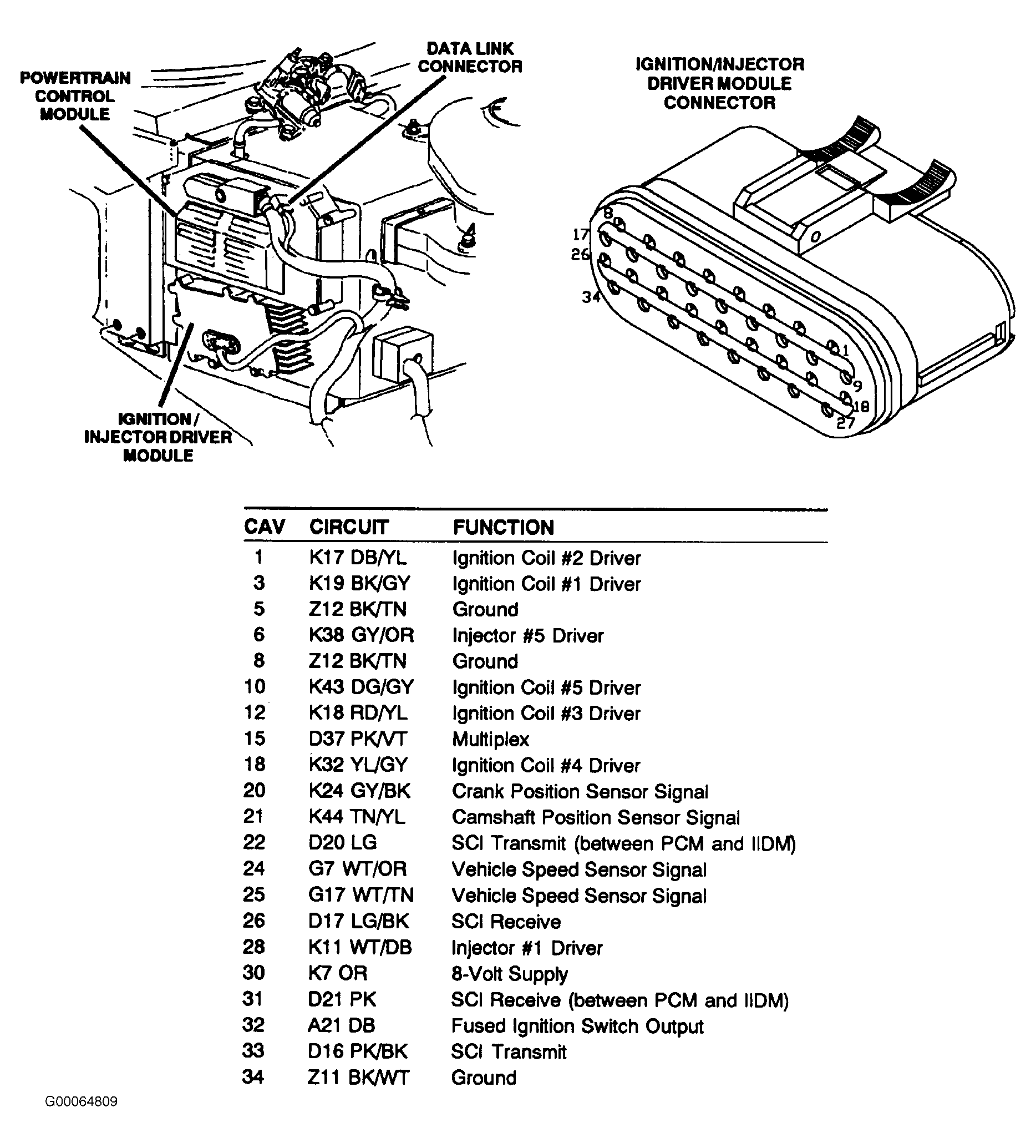

Fig 1: Ignition/Injector Driver Module Connector

G00064809

Courtesy of DAIMLERCHRYSLER CORPORATION
