Home › Dodge and Ram › 1994 › Viper › Repair and Diagnosis › Engine Performance › System › Engine Controls - Self-Diagnostics › Diagnostic Trouble Code Tests › TC-15A: Left O2S At Center

TC-15A: Left O2S At Center

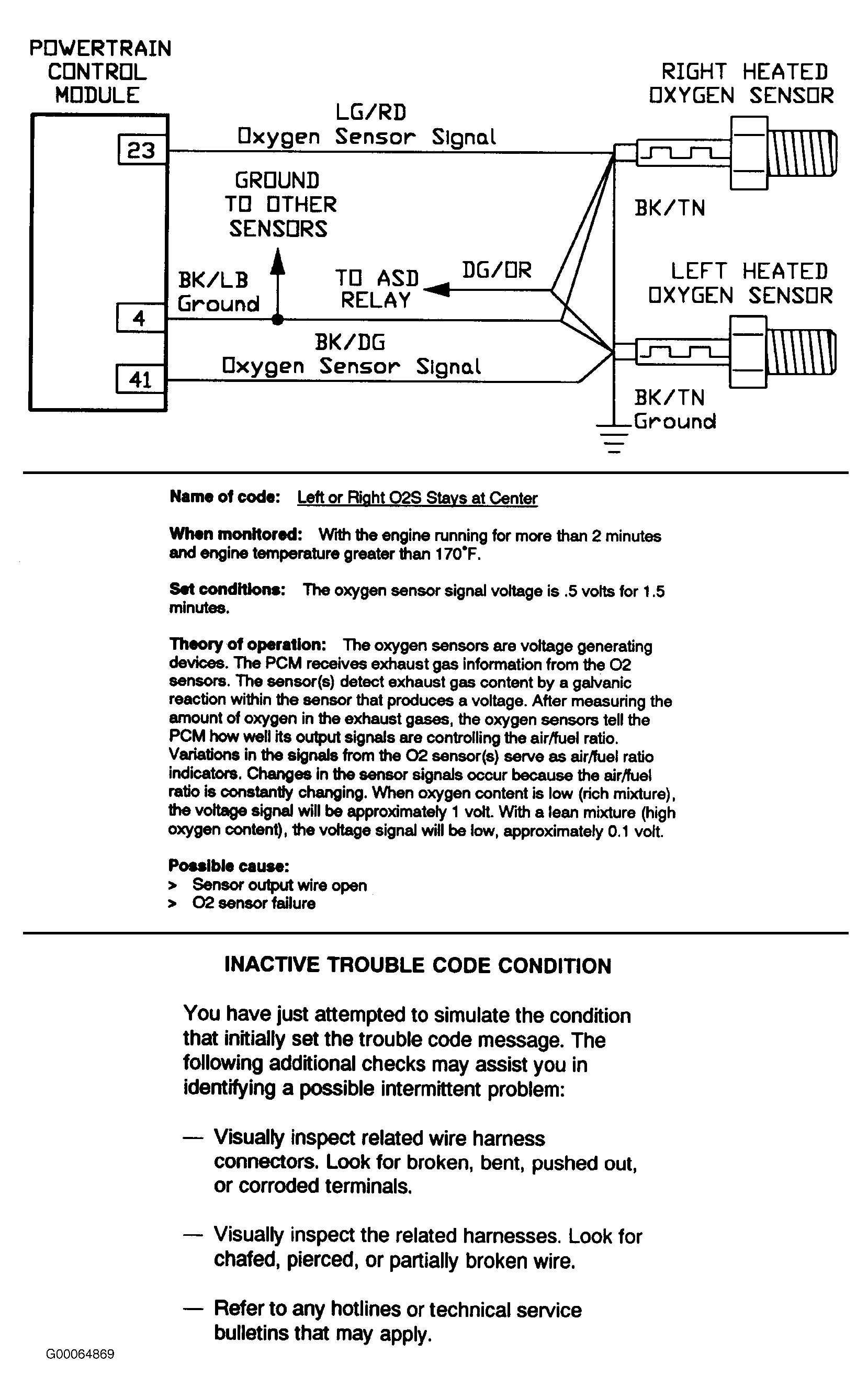

Fig 1: TC-15A: Left O2S At Center (1 Of 4)
G00064869Courtesy of DAIMLERCHRYSLER CORPORATION

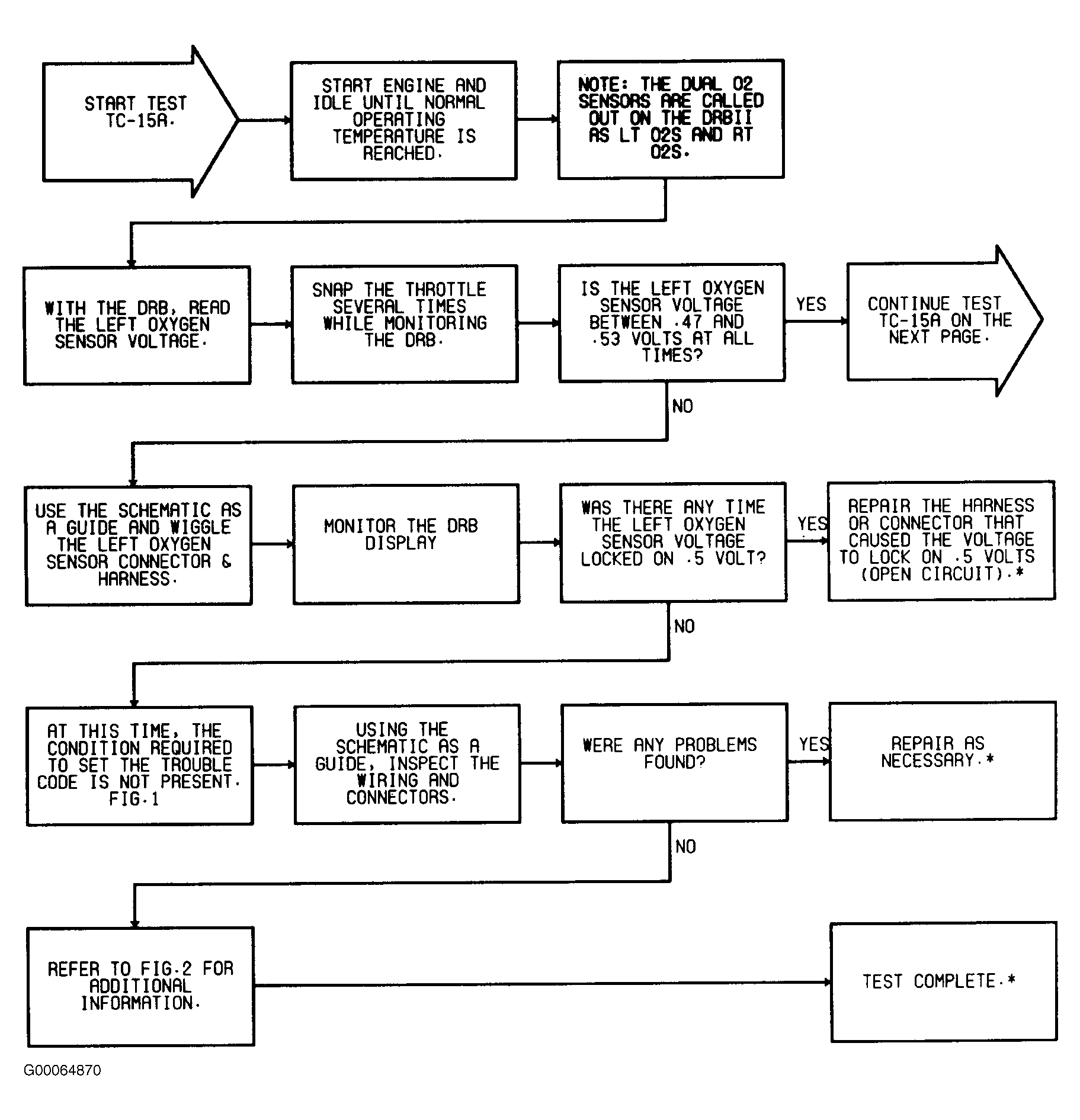

Fig 2: TC-15A: Left O2S At Center (2 Of 4)
G00064870Courtesy of DAIMLERCHRYSLER CORPORATION

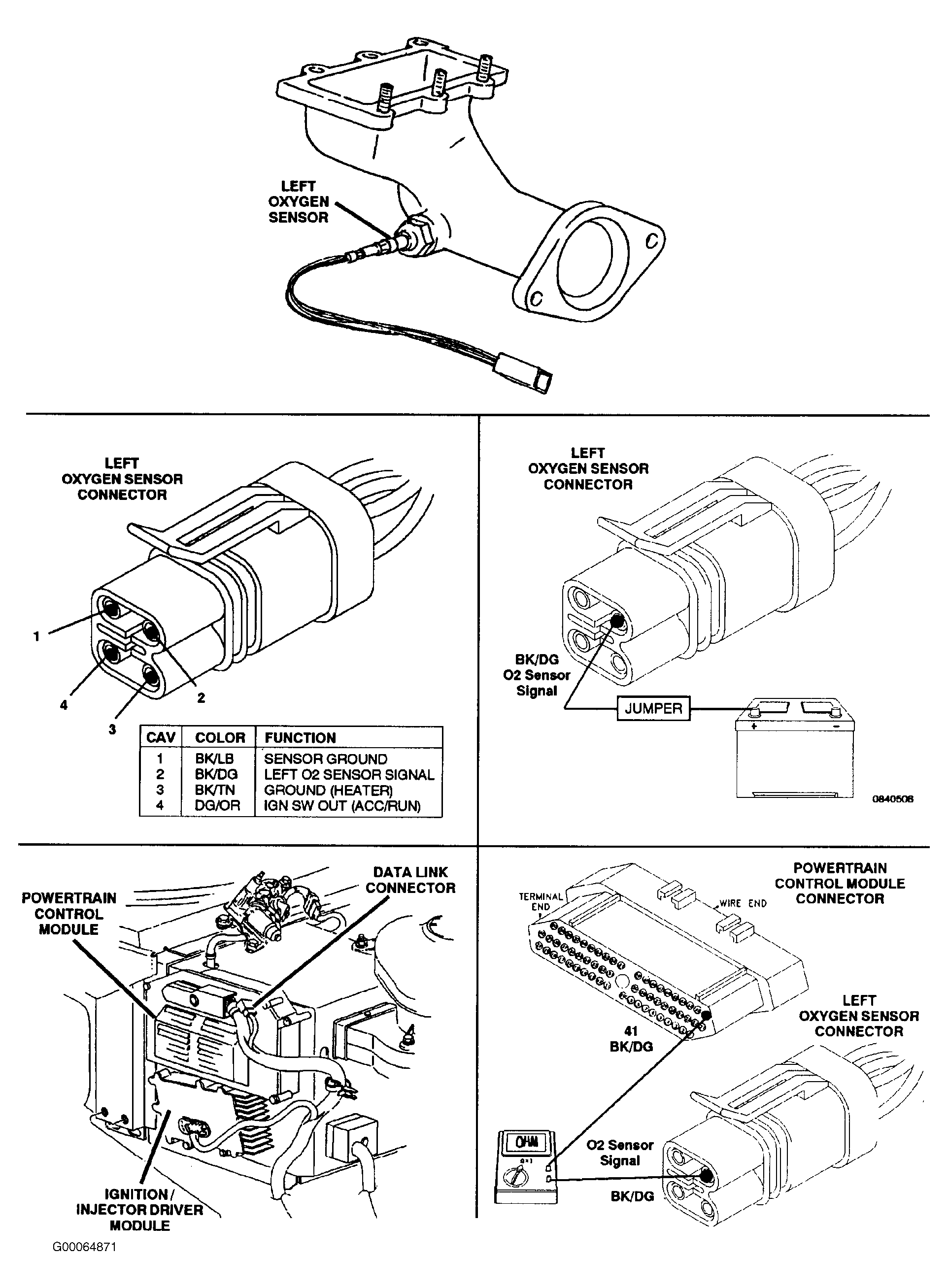

Fig 3: TC-15A: Left O2S At Center (3 Of 4)
G00064871Courtesy of DAIMLERCHRYSLER CORPORATION

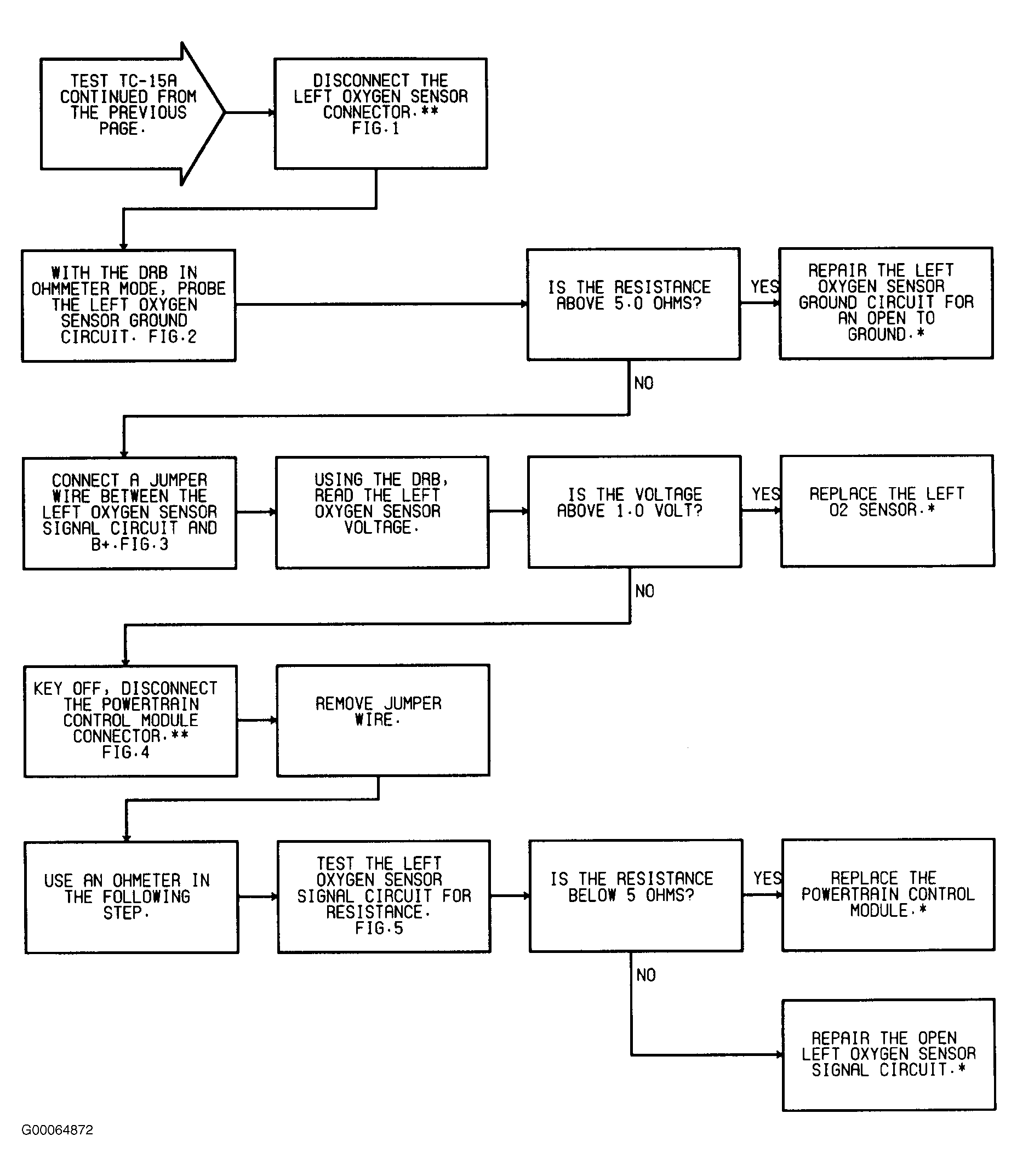

Fig 4: TC-15A: Left O2S At Center (4 Of 4)
G00064872Courtesy of DAIMLERCHRYSLER CORPORATION
