TC-41A: EVAP Solenoid Circuit

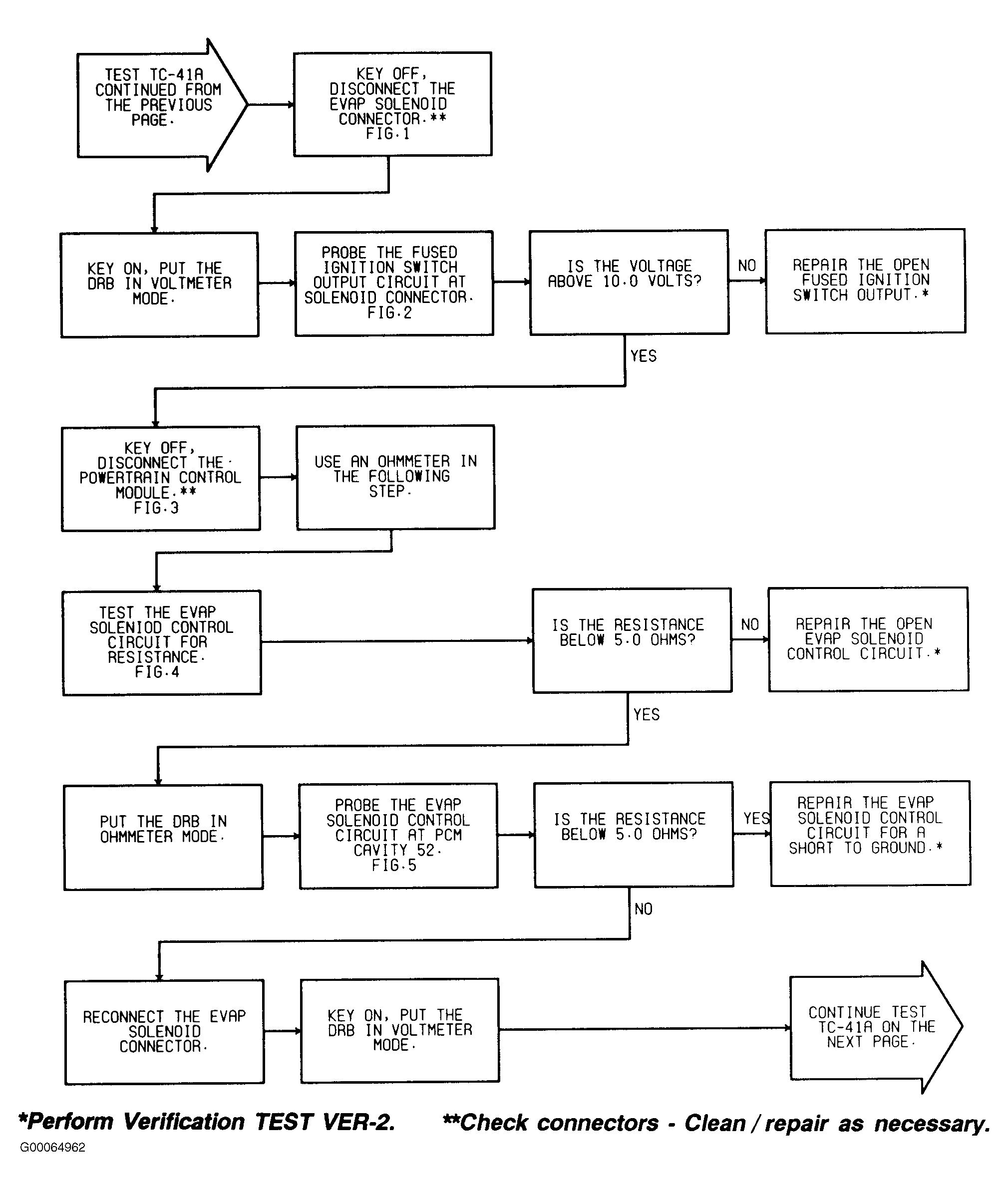

Fig 1: TC-41A: EVAP Solenoid Circuit (1 Of 6)

Courtesy of DAIMLERCHRYSLER CORPORATION

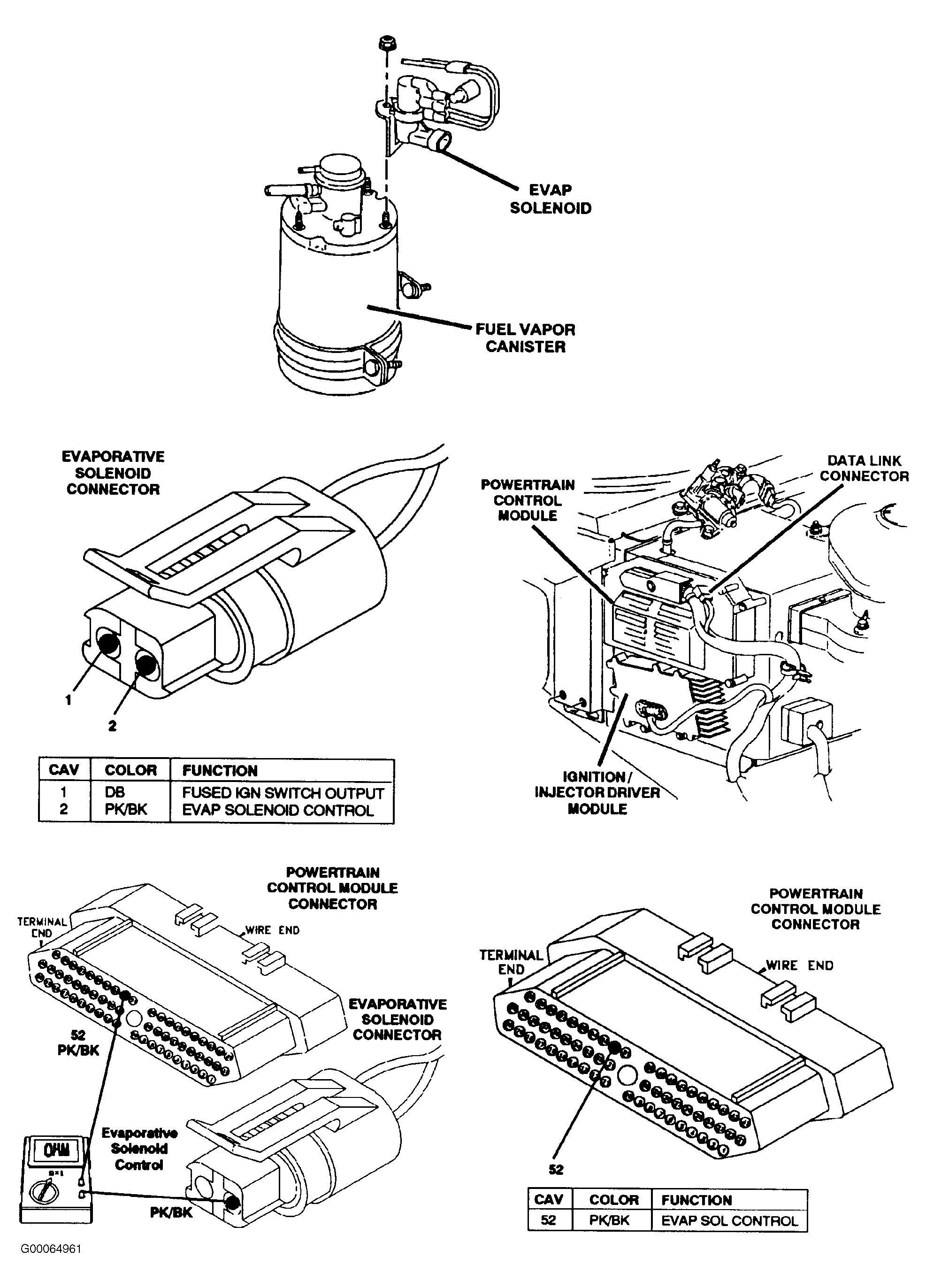

Fig 2: TC-41A: EVAP Solenoid Circuit (2 Of 6)

Courtesy of DAIMLERCHRYSLER CORPORATION

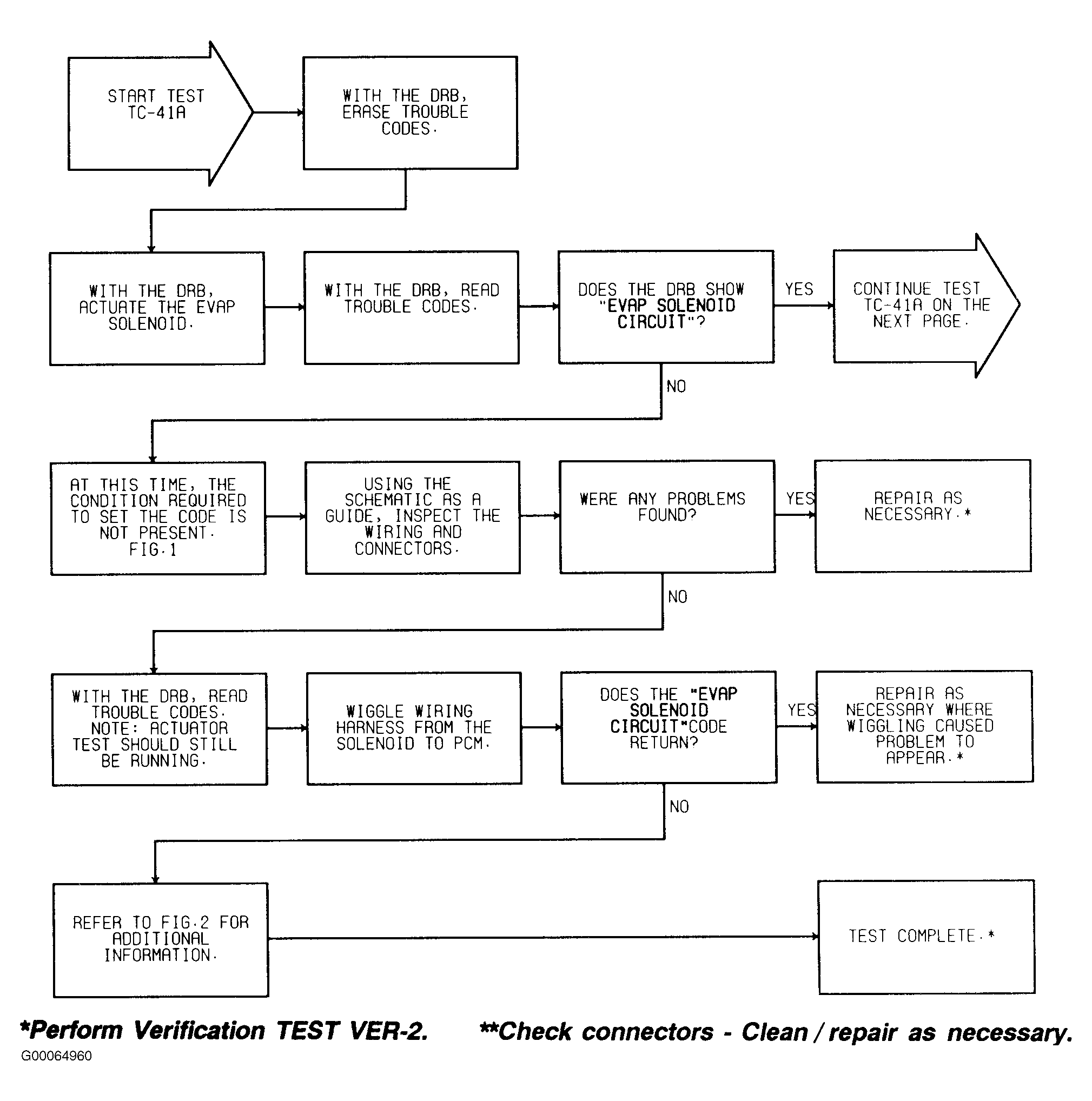

Fig 3: TC-41A: EVAP Solenoid Circuit (3 Of 6)

Courtesy of DAIMLERCHRYSLER CORPORATION

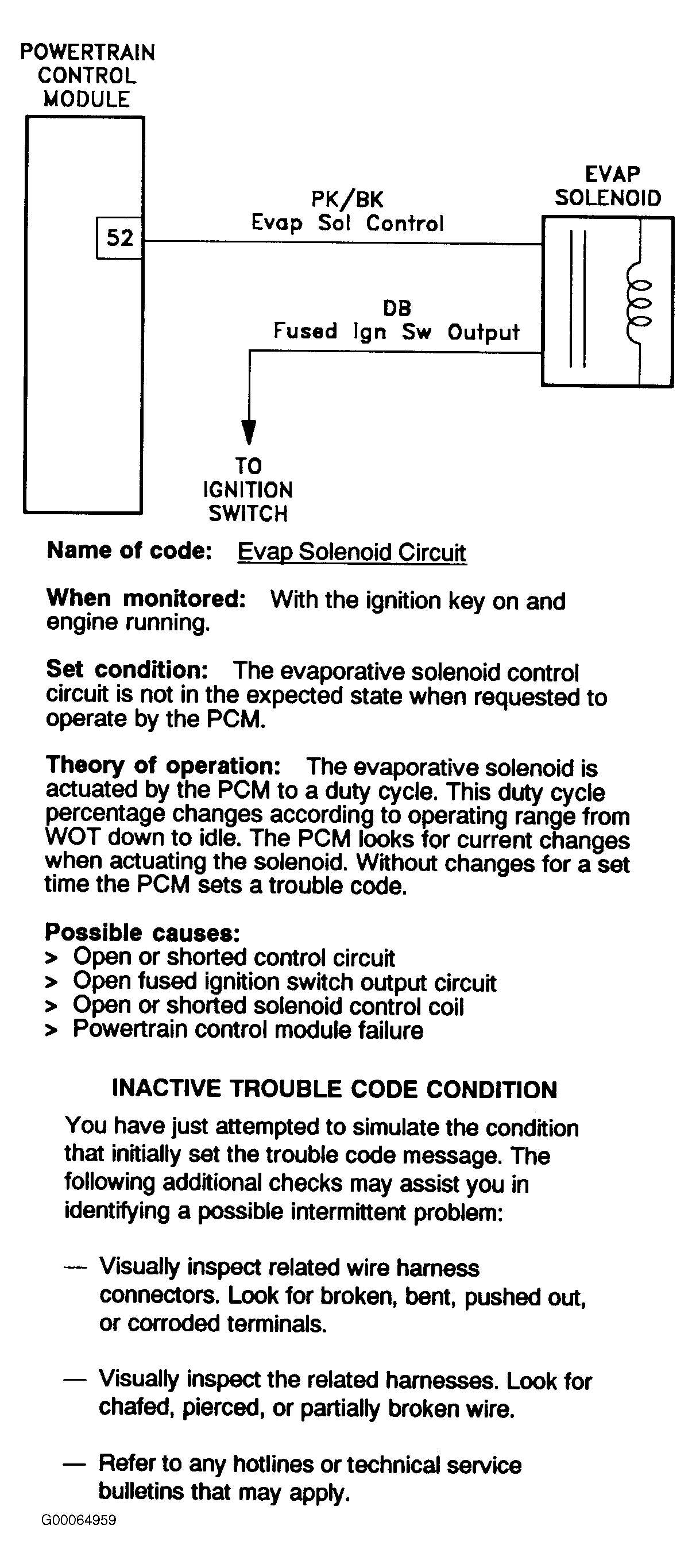

Fig 4: TC-41A: EVAP Solenoid Circuit (4 Of 6)

Courtesy of DAIMLERCHRYSLER CORPORATION

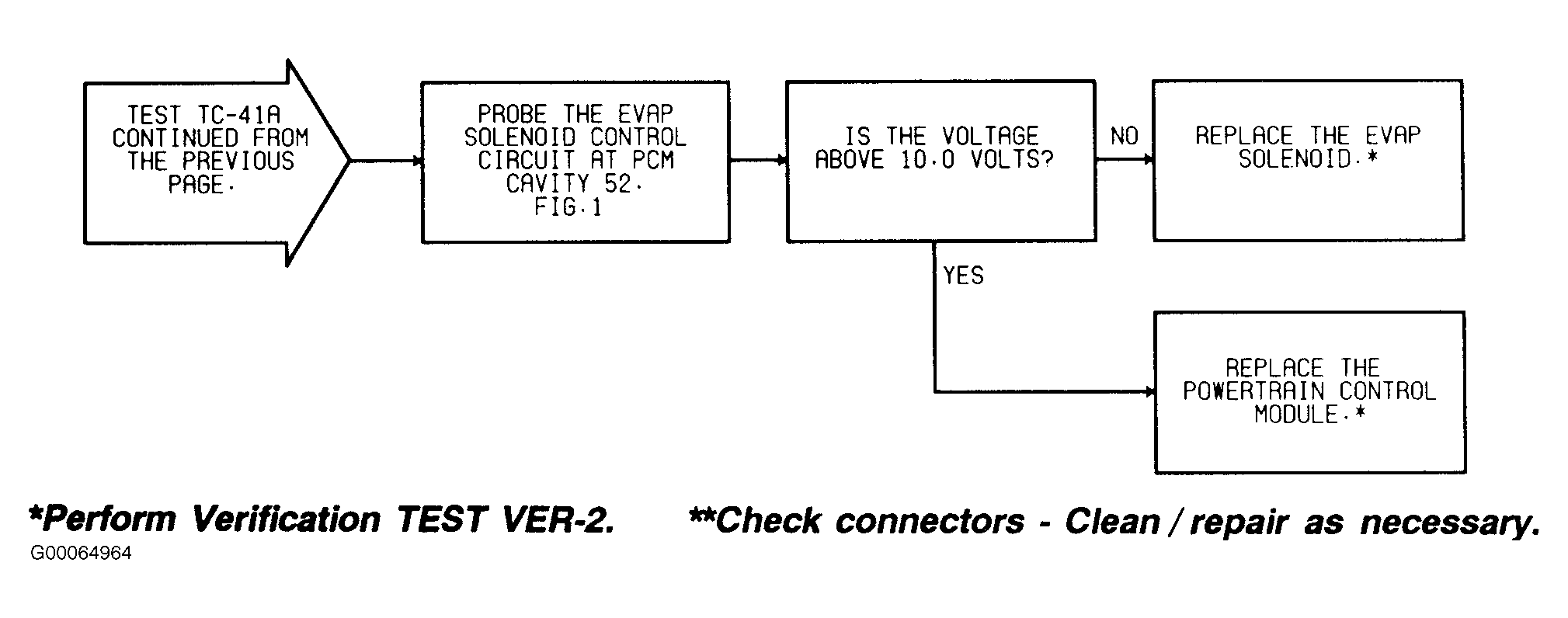

Fig 5: TC-41A: EVAP Solenoid Circuit (5 Of 6)

Courtesy of DAIMLERCHRYSLER CORPORATION

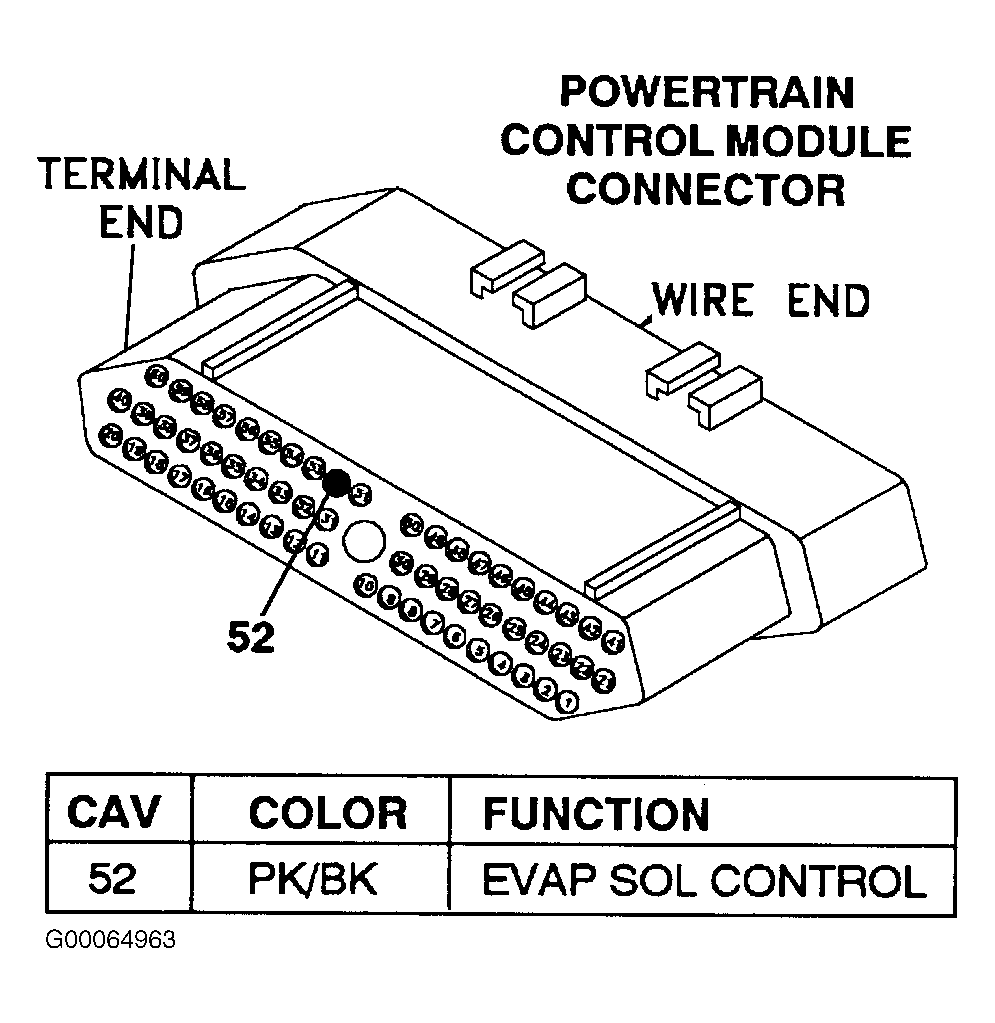

Fig 6: TC-41A: EVAP Solenoid Circuit (6 Of 6)

Courtesy of DAIMLERCHRYSLER CORPORATION
