NTC-2A: Checking Secondary Ignition & Timing

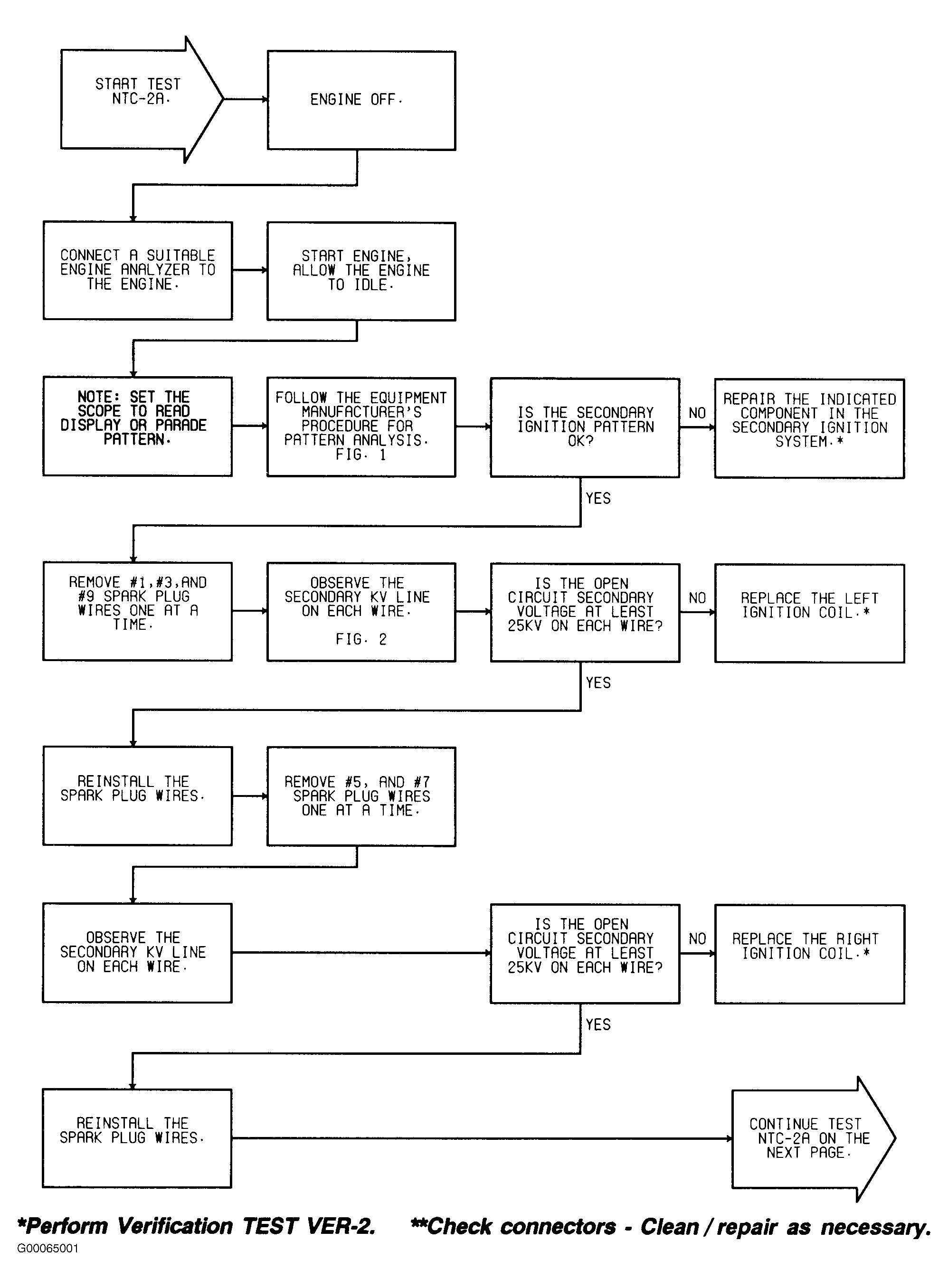

Fig 1: NTC-2A: Checking Secondary Ignition & Timing (1 Of 3)

Courtesy of DAIMLERCHRYSLER CORPORATION

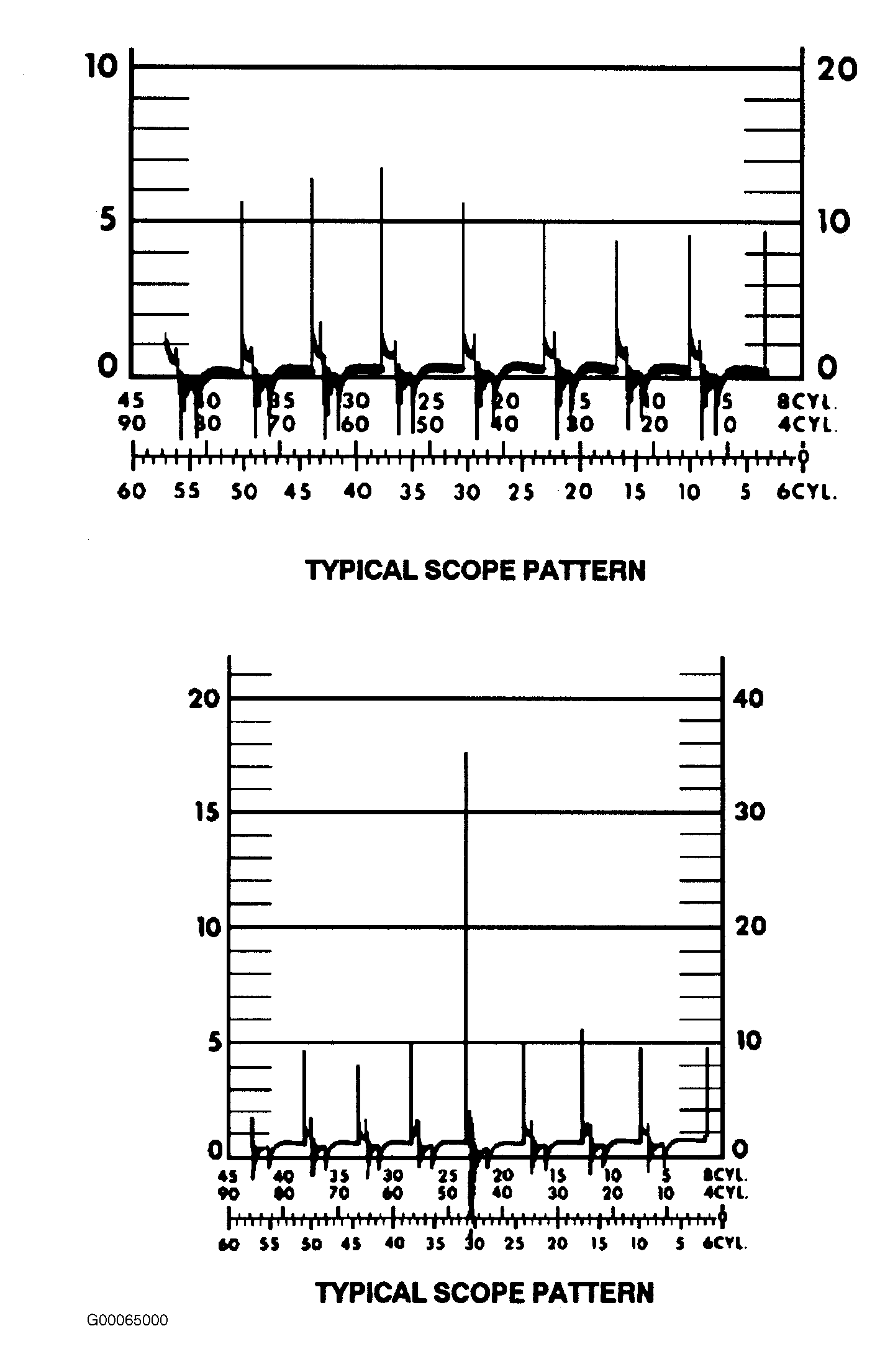

Fig 2: NTC-2A: Checking Secondary Ignition & Timing (2 Of 3)

Courtesy of DAIMLERCHRYSLER CORPORATION

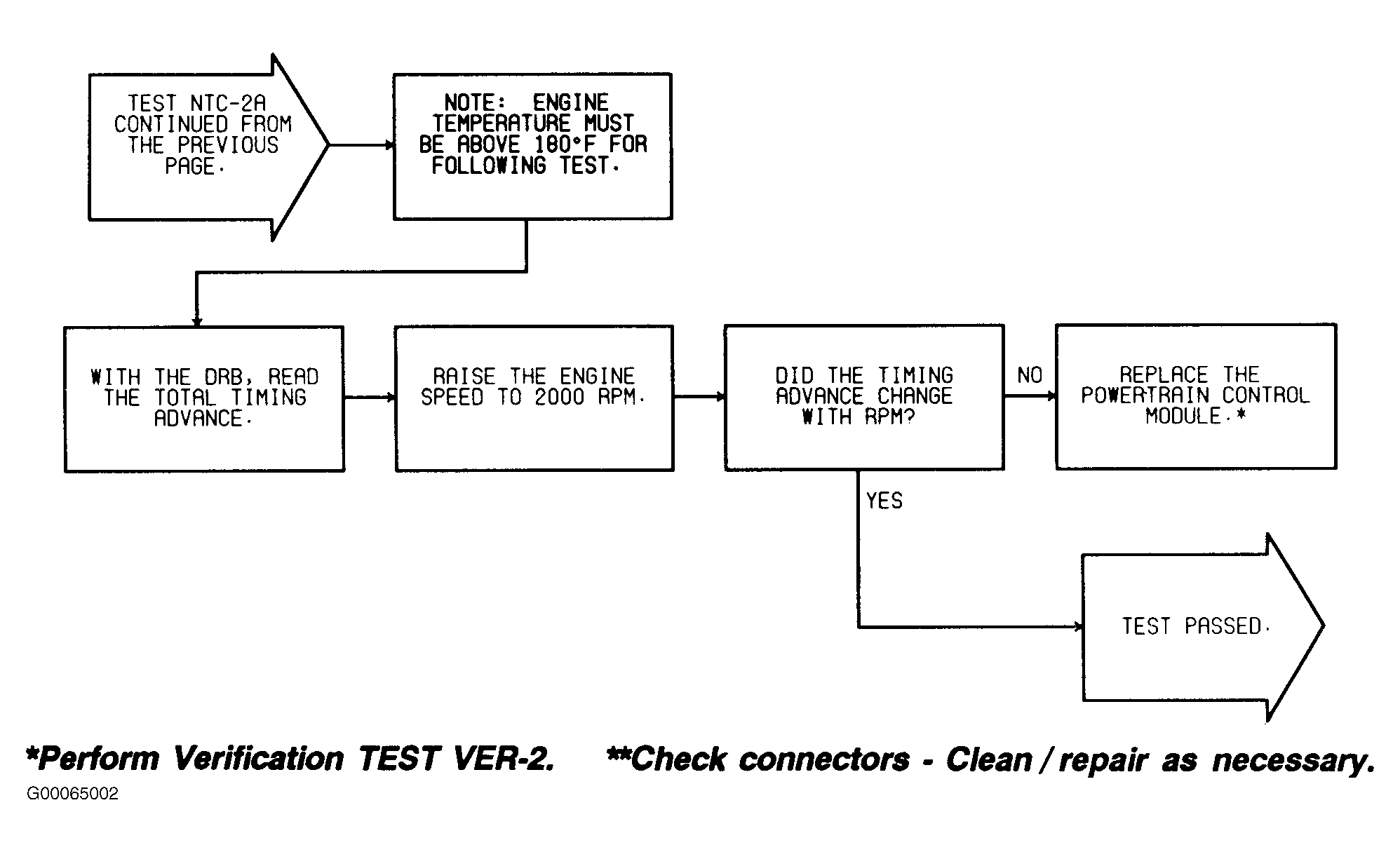

Fig 3: NTC-2A: Checking Secondary Ignition & Timing (3 Of 3)

Courtesy of DAIMLERCHRYSLER CORPORATION
