NTC-5A: Checking TP Sensor Calibration

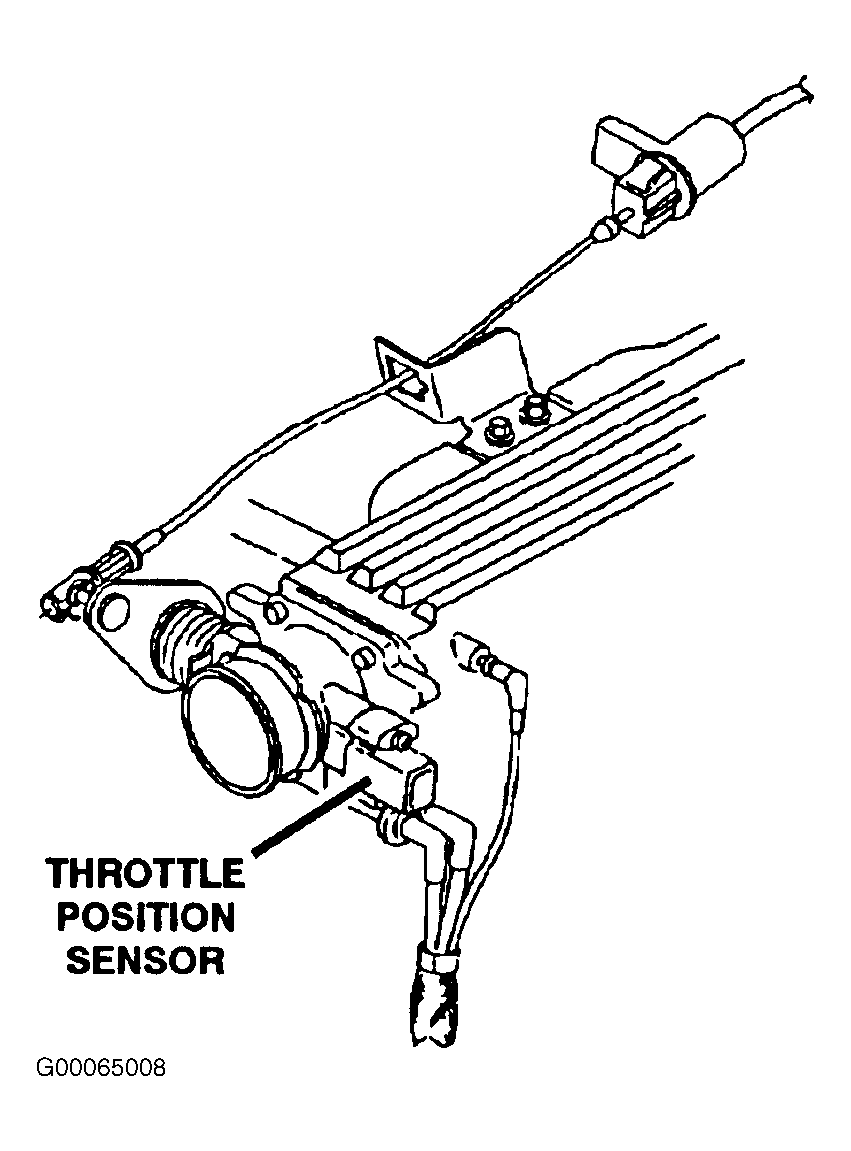

Fig 1: NTC-5A: Checking TP Sensor Calibration (1 Of 2)

Courtesy of DAIMLERCHRYSLER CORPORATION

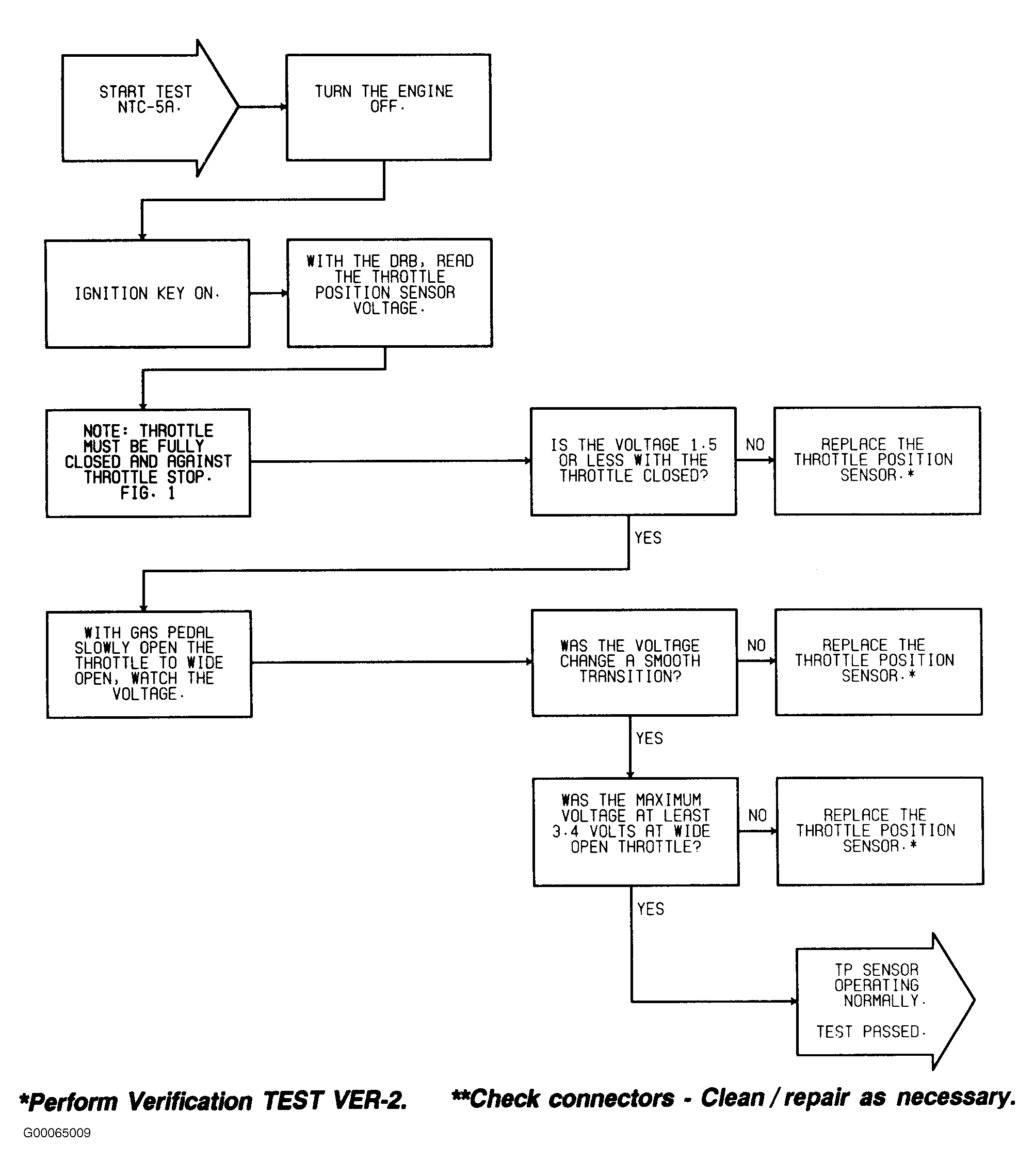

Fig 2: NTC-5A: Checking TP Sensor Calibration (2 Of 2)

Courtesy of DAIMLERCHRYSLER CORPORATION
