NTC-9A: Checking Solenoid Operation

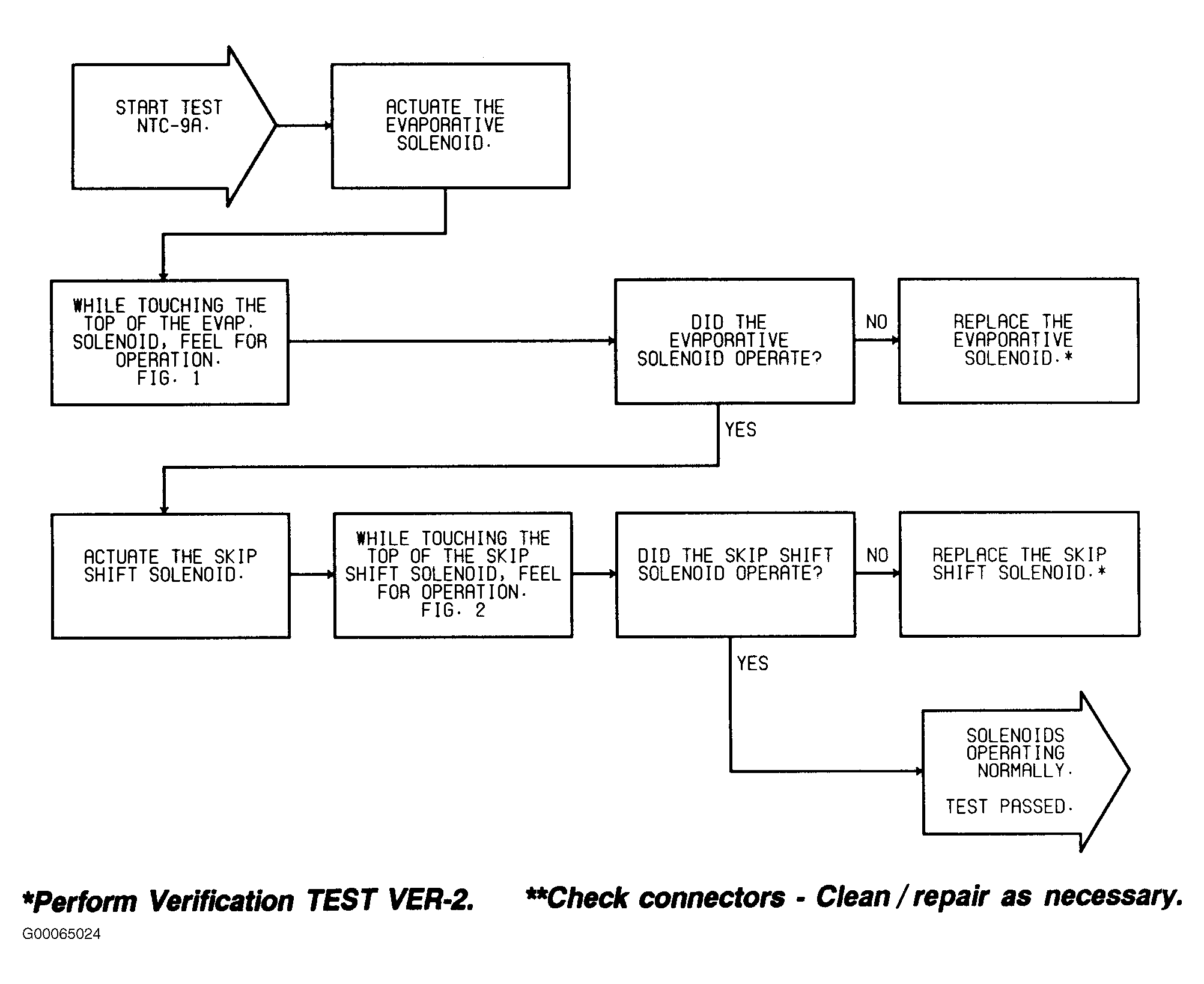

Fig 1: NTC-9A: Checking Solenoid Operations (1 Of 2)

Courtesy of DAIMLERCHRYSLER CORPORATION

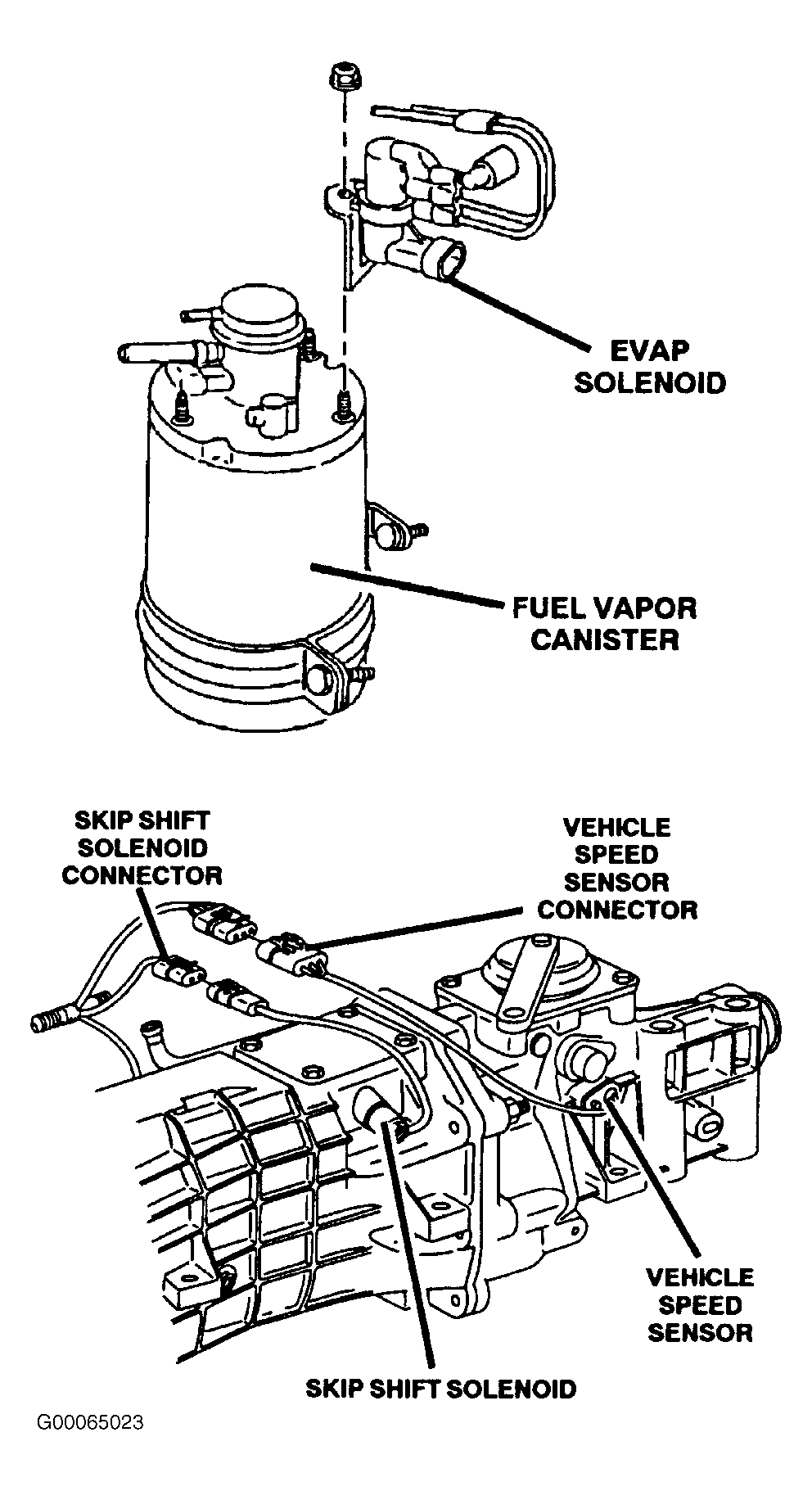

Fig 2: NTC-9A: Checking Solenoid Operations (2 Of 2)

Courtesy of DAIMLERCHRYSLER CORPORATION
