Wiring Diagrams

NOTE: For additional wiring diagrams, connector, and wiring information, see WIRING DIAGRAMS for 1994 models or other appropriate wiring diagram article.

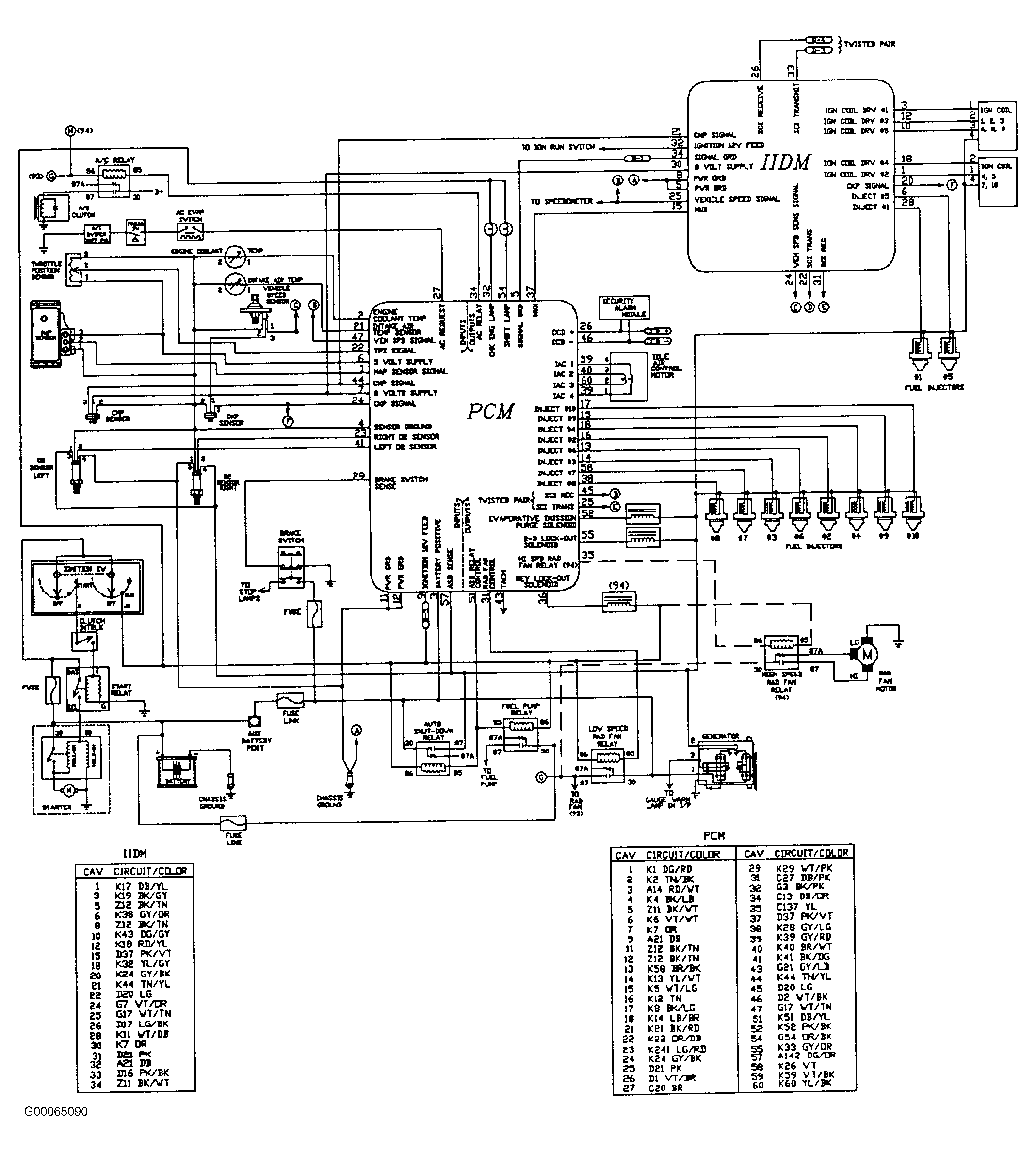

Fig 1: Engine Performance Wiring Diagram

Courtesy of DAIMLERCHRYSLER CORPORATION
