Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

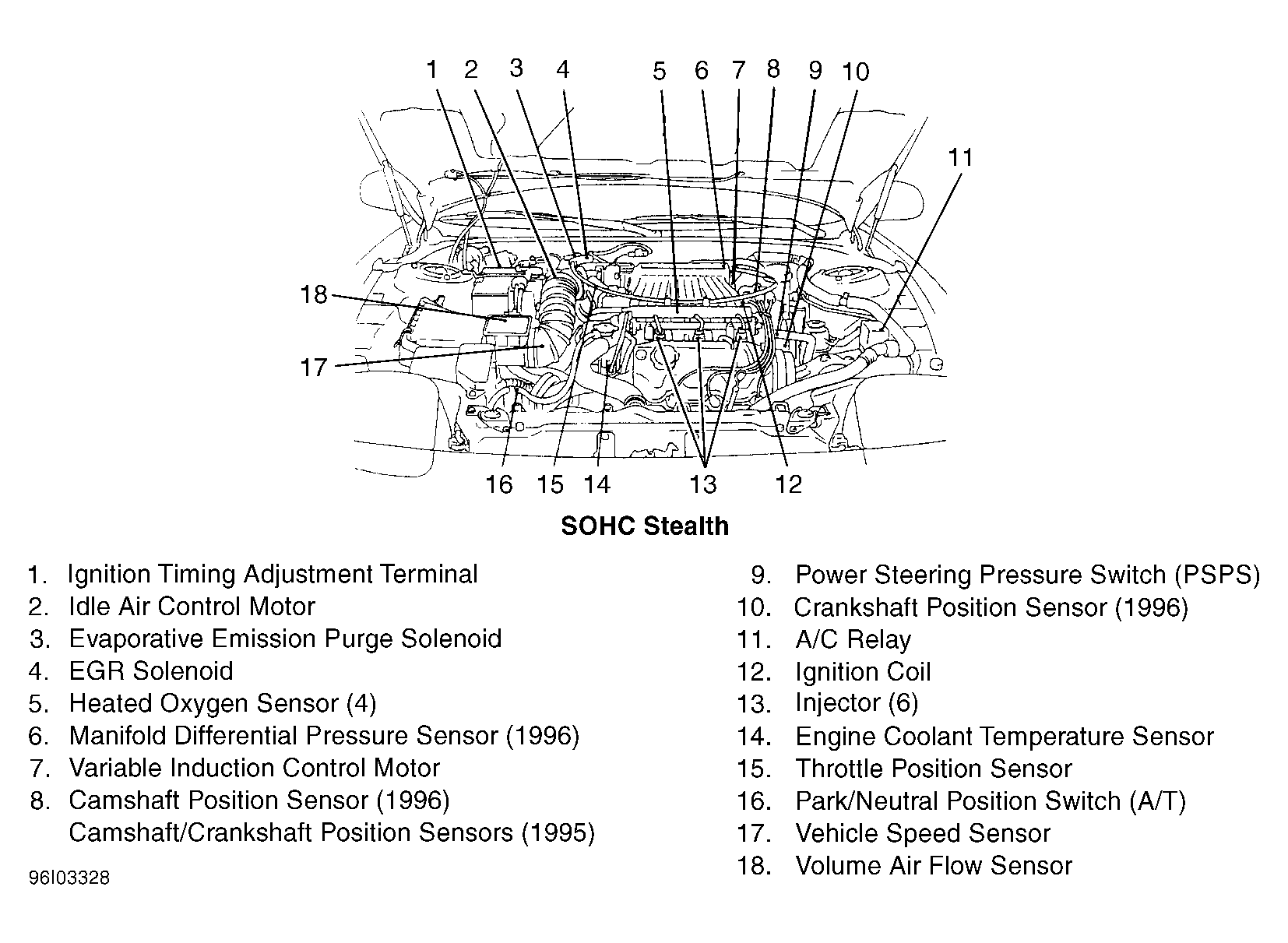

Fig 1: Engine (SOHC Stealth)

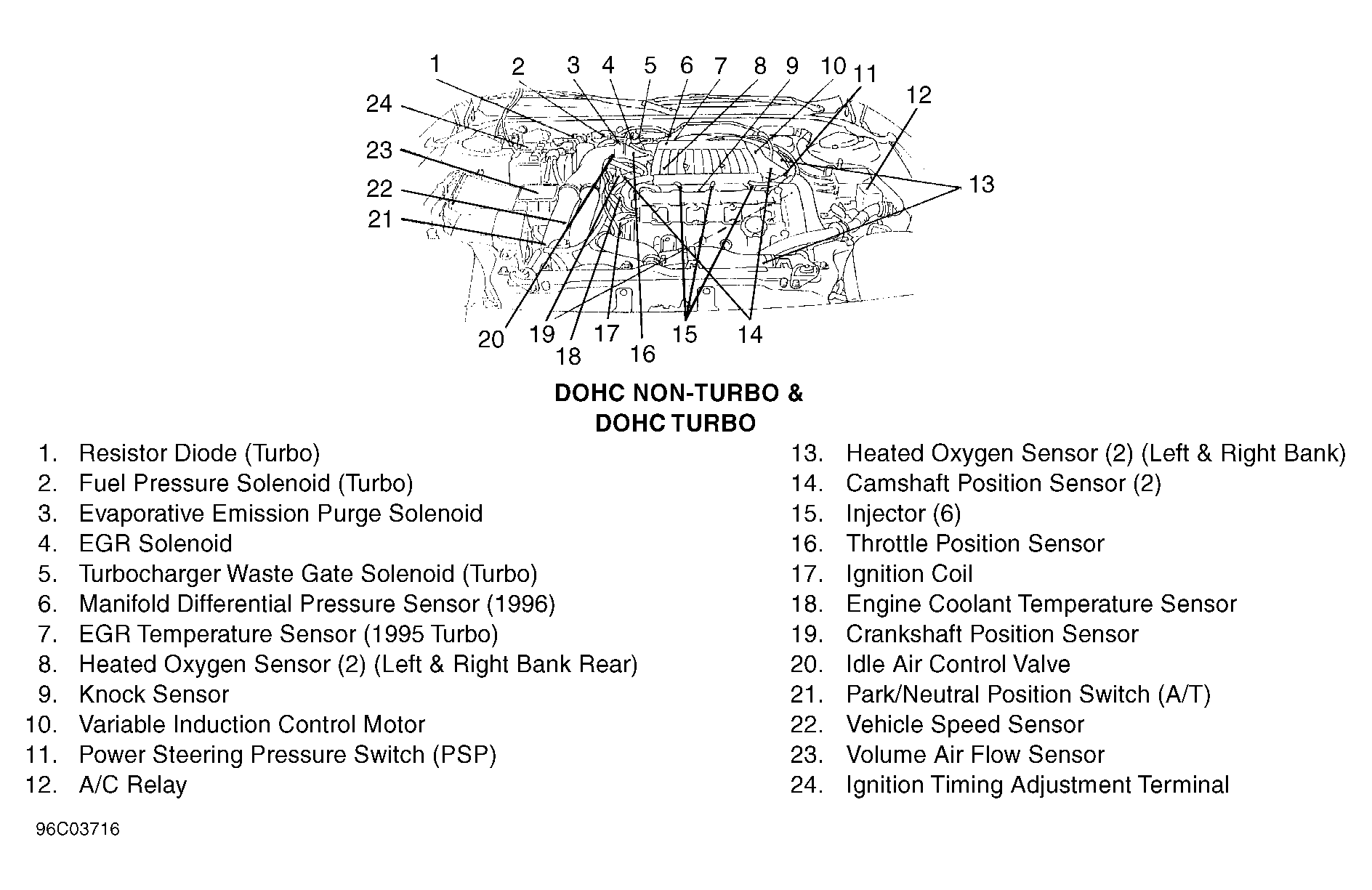

Fig 2: Engine (DOHC Non-Turbo & DOHC Turbo)

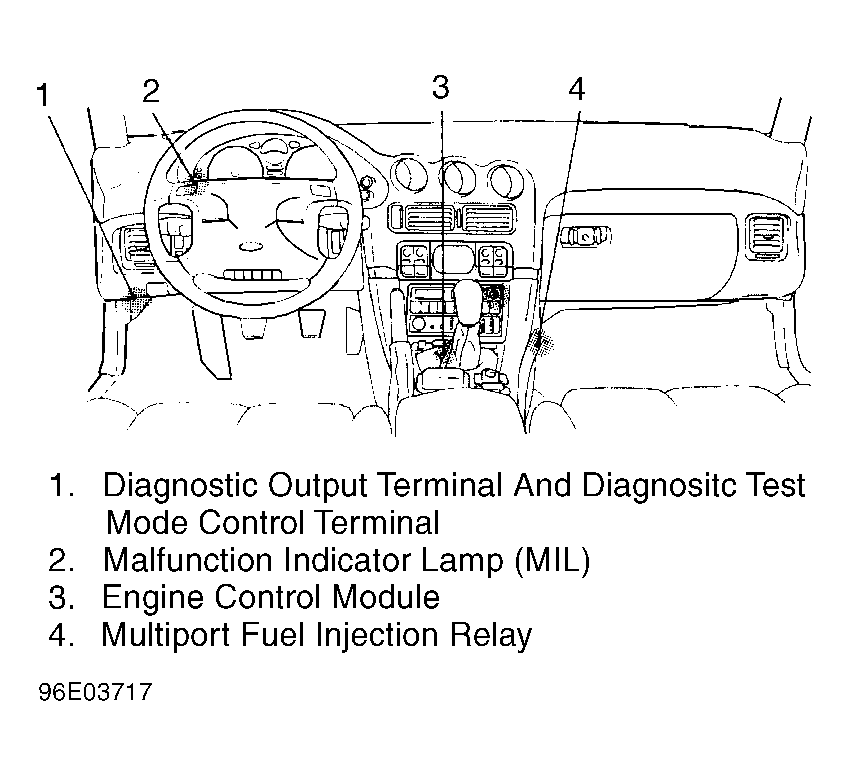

Fig 3: Dash
