NS-2A: Checking Fuel System

NOTE: Perform Test NS-1A Before Proceeding

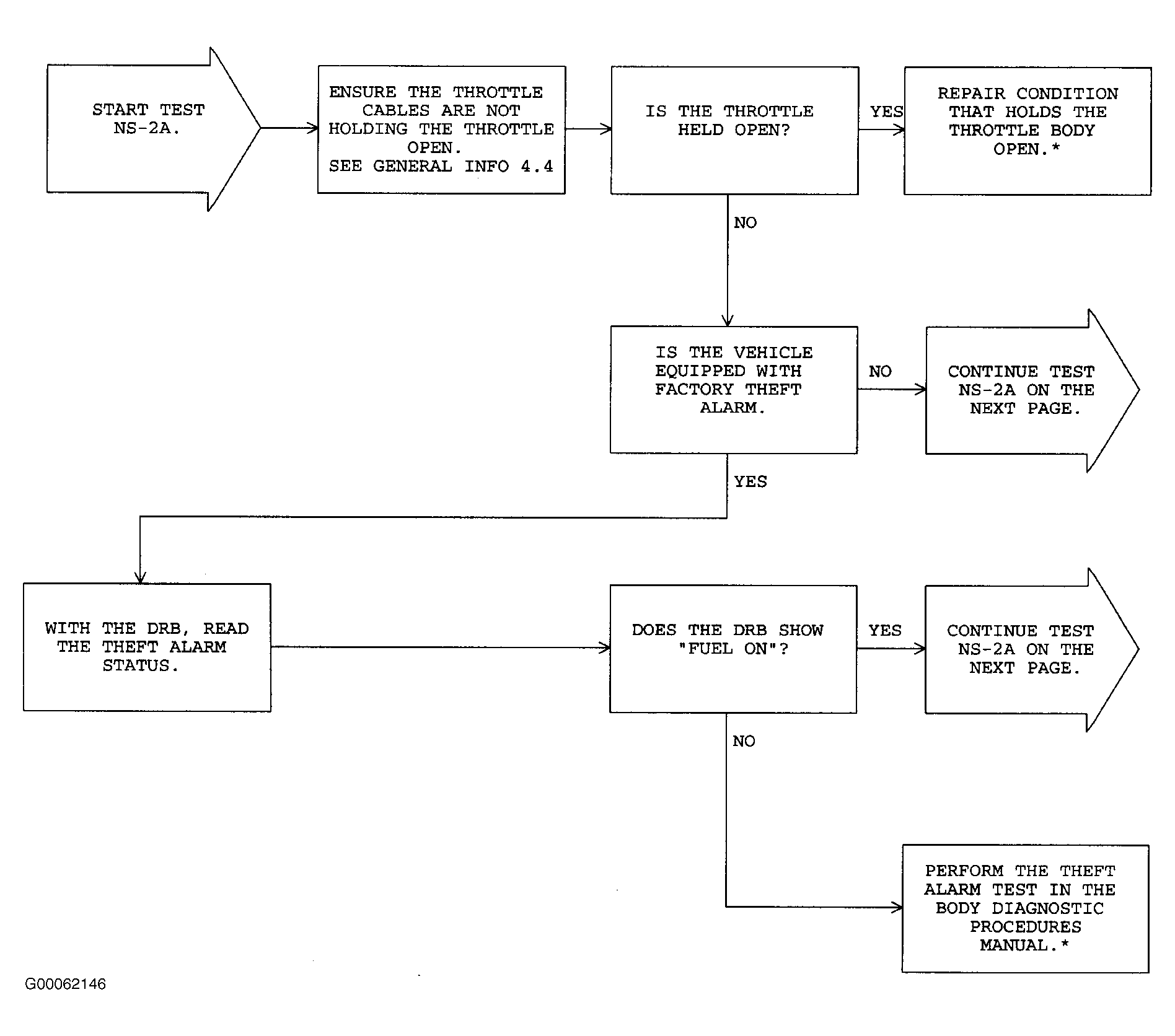

Fig 1: NS-2A: Checking Fuel System (1 Of 2)

Courtesy of DAIMLERCHRYSLER CORPORATION

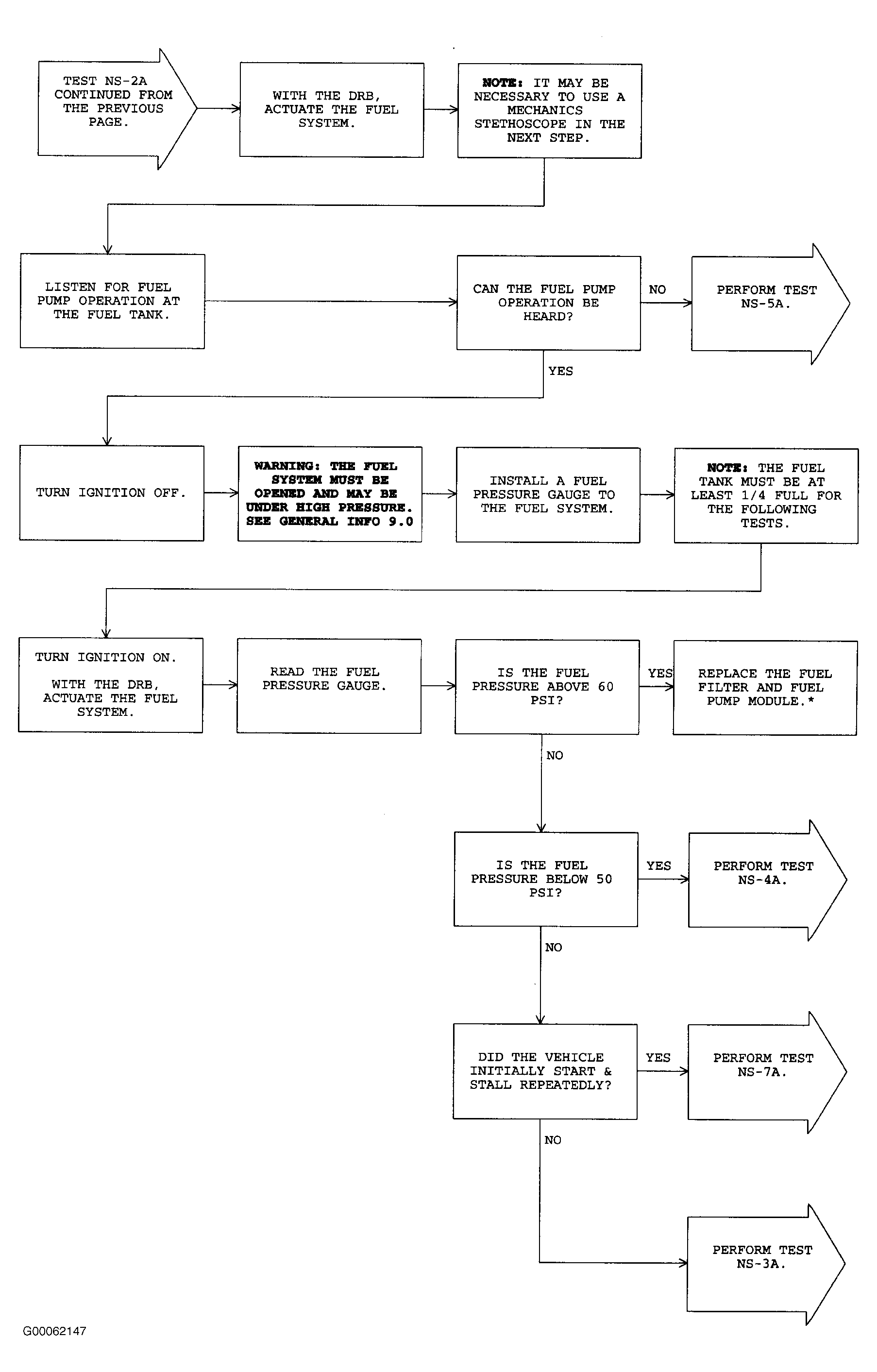

Fig 2: NS-2A: Checking Fuel System (2 Of 2)

Courtesy of DAIMLERCHRYSLER CORPORATION
