NS-3A: Checking Mechanical System

NOTE: Perform Test NS-1A Before Proceeding

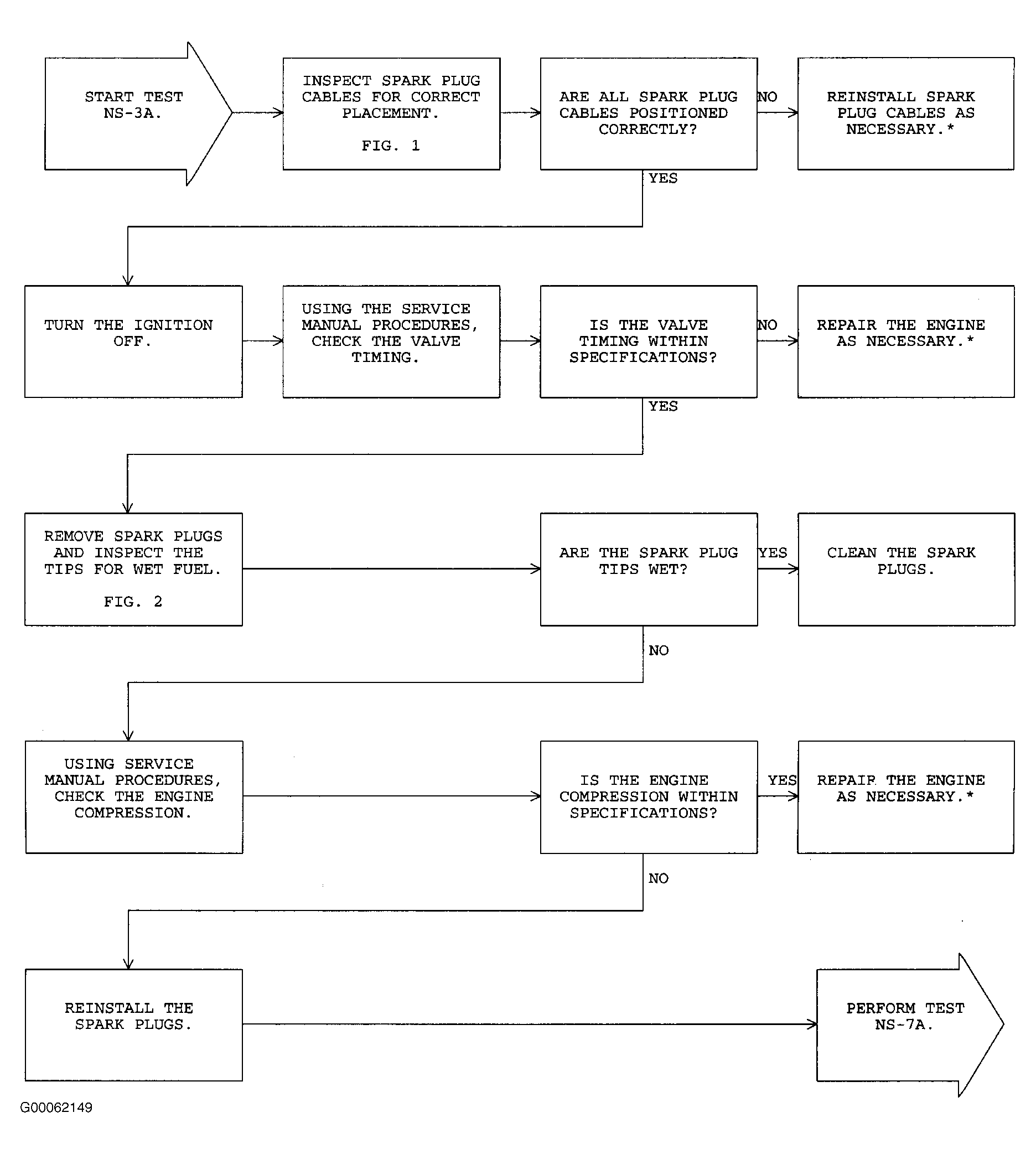

Fig 1: NS-3A: Checking Mechanical System (1 Of 2)

Courtesy of DAIMLERCHRYSLER CORPORATION

Fig 2: NS-3A: Checking Mechanical System (2 Of 2)

Courtesy of DAIMLERCHRYSLER CORPORATION
