NTC-25A: Checking A/C System

NOTE: Perform Test NTC-1A Before Proceeding

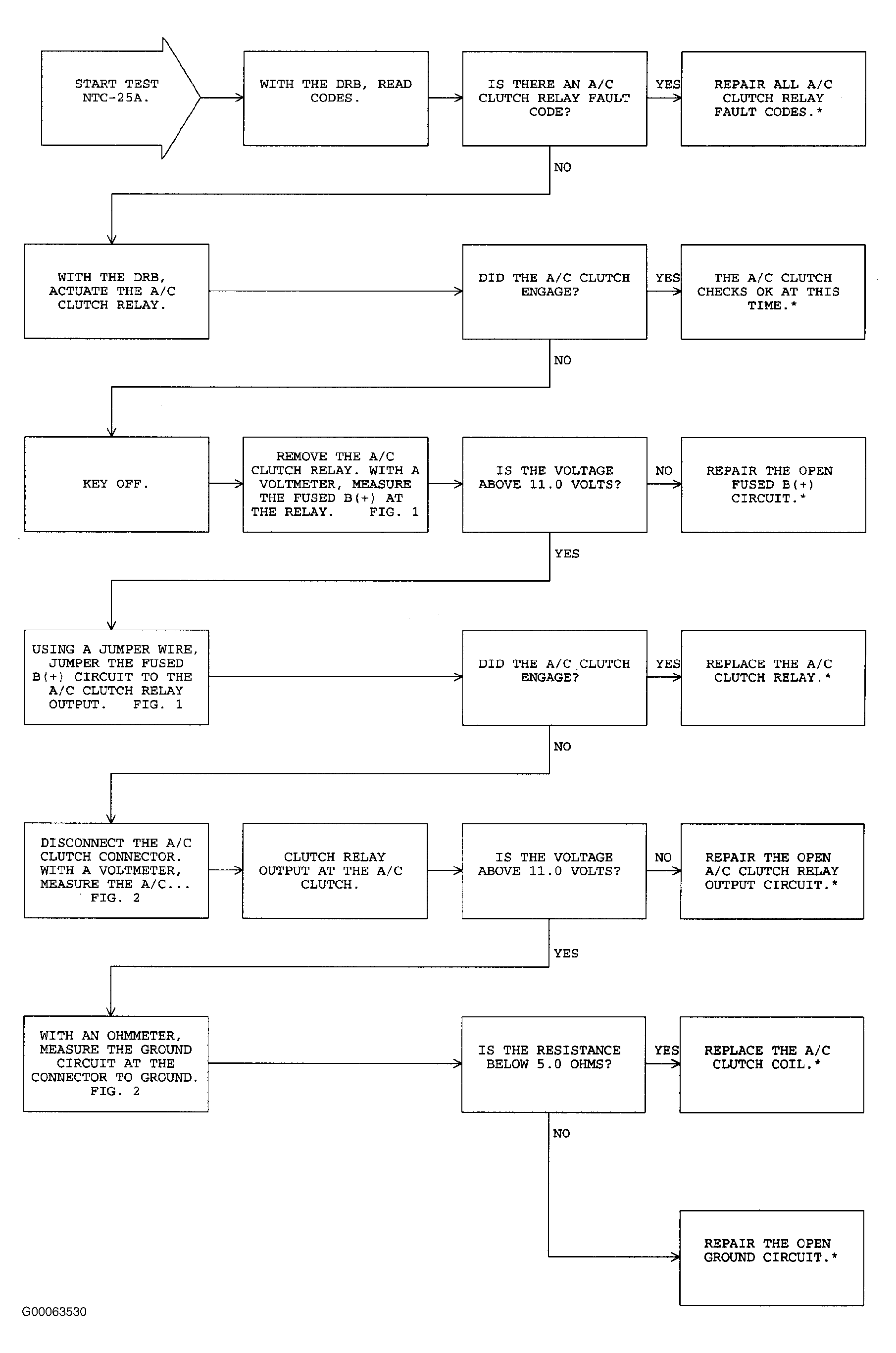

Fig 1: NTC-25A: Checking A/C System (1 Of 2)

Courtesy of DAIMLERCHRYSLER CORPORATION

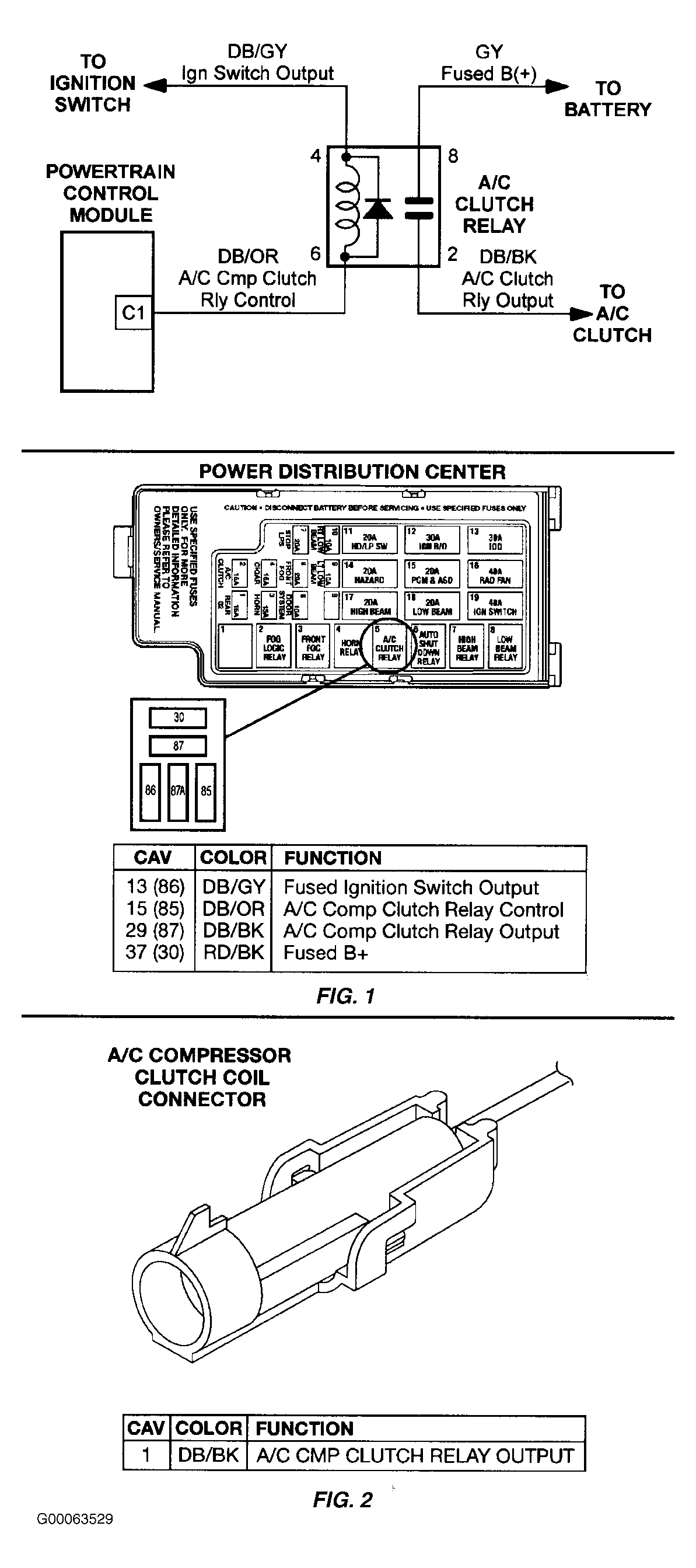

Fig 2: NTC-25A: Checking A/C System (2 Of 2)

Courtesy of DAIMLERCHRYSLER CORPORATION
