NTC-2A: Checking Secondary Ignition & Timing

NOTE: Perform Test NTC-1A Before Proceeding

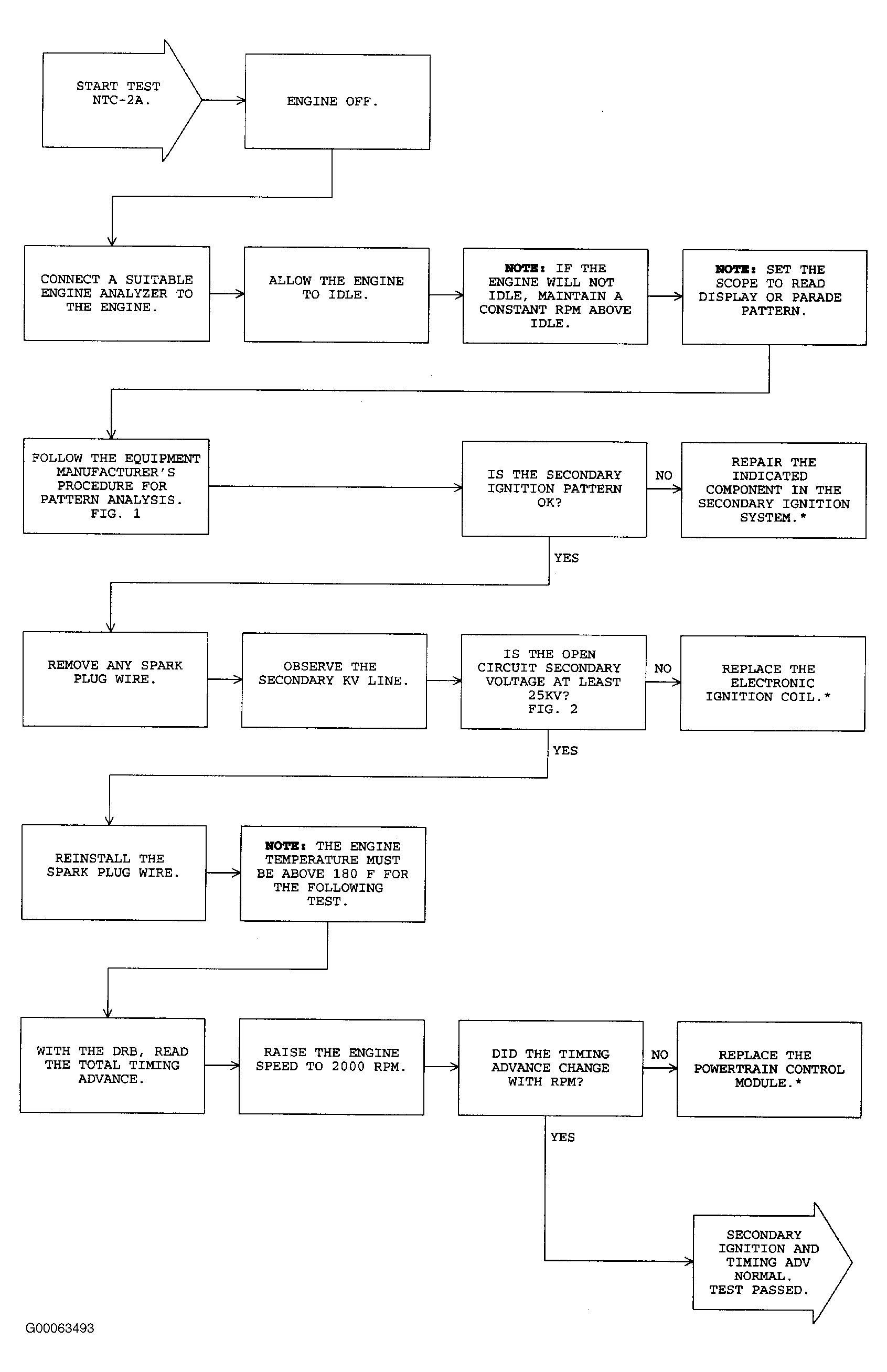

Fig 1: NTC-2A: Checking Secondary Ignition & Timing (1 Of 2)

Courtesy of DAIMLERCHRYSLER CORPORATION

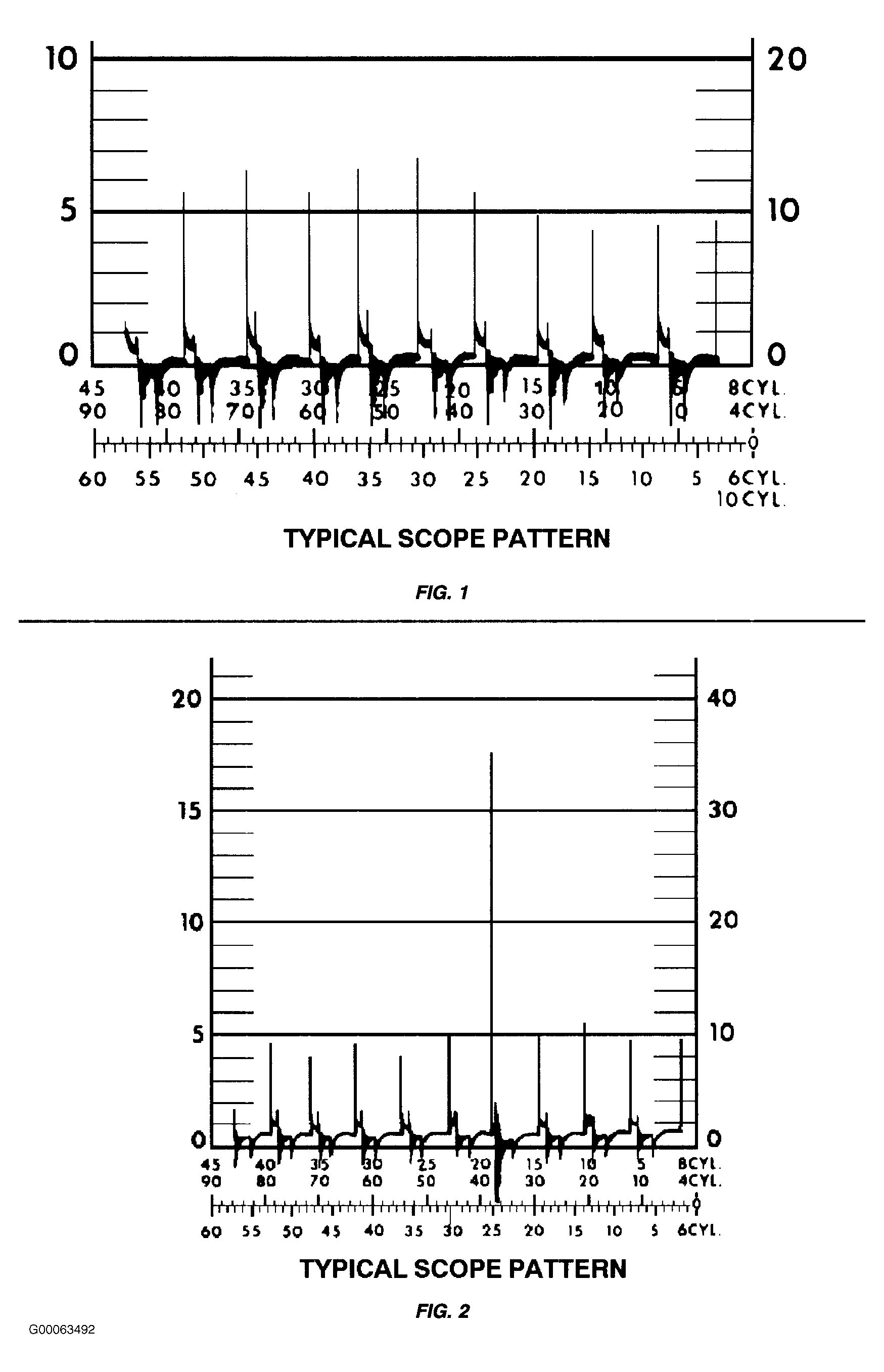

Fig 2: NTC-2A: Checking Secondary Ignition & Timing (2 Of 2)

Courtesy of DAIMLERCHRYSLER CORPORATION
