NTC-4A: Checking Engine Vacuum

NOTE: Perform Test NTC-1A Or NTC-3A Before Proceeding

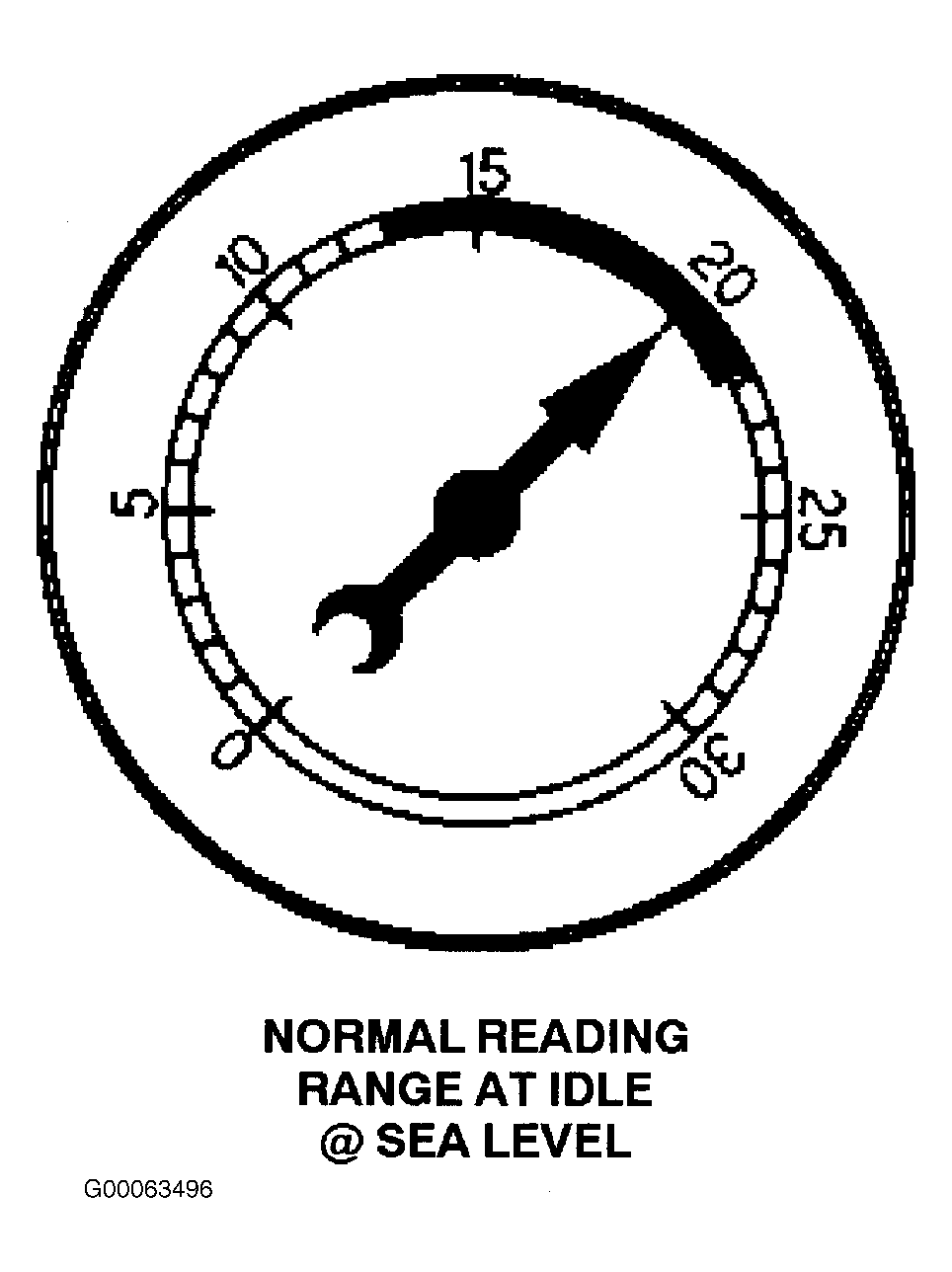

Fig 1: NTC-4A: Checking Engine Vacuum (1 Of 2)

Courtesy of DAIMLERCHRYSLER CORPORATION

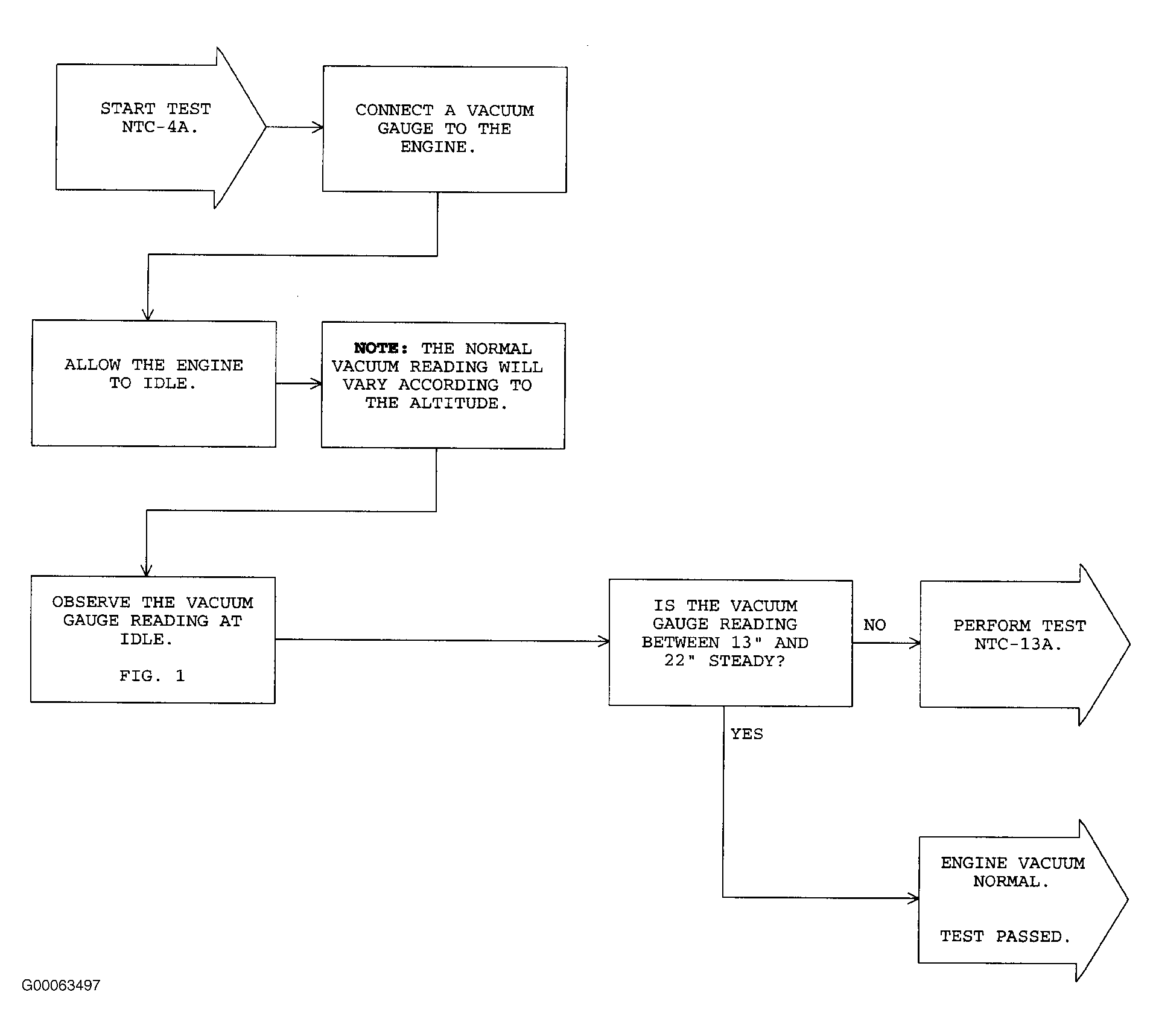

Fig 2: NTC-4A: Checking Engine Vacuum (2 Of 2)

Courtesy of DAIMLERCHRYSLER CORPORATION
