NTC-6A: Checking Coolant Sensor Calibration

NOTE: Perform Test NTC-1A Or NTC-5A Before Proceeding

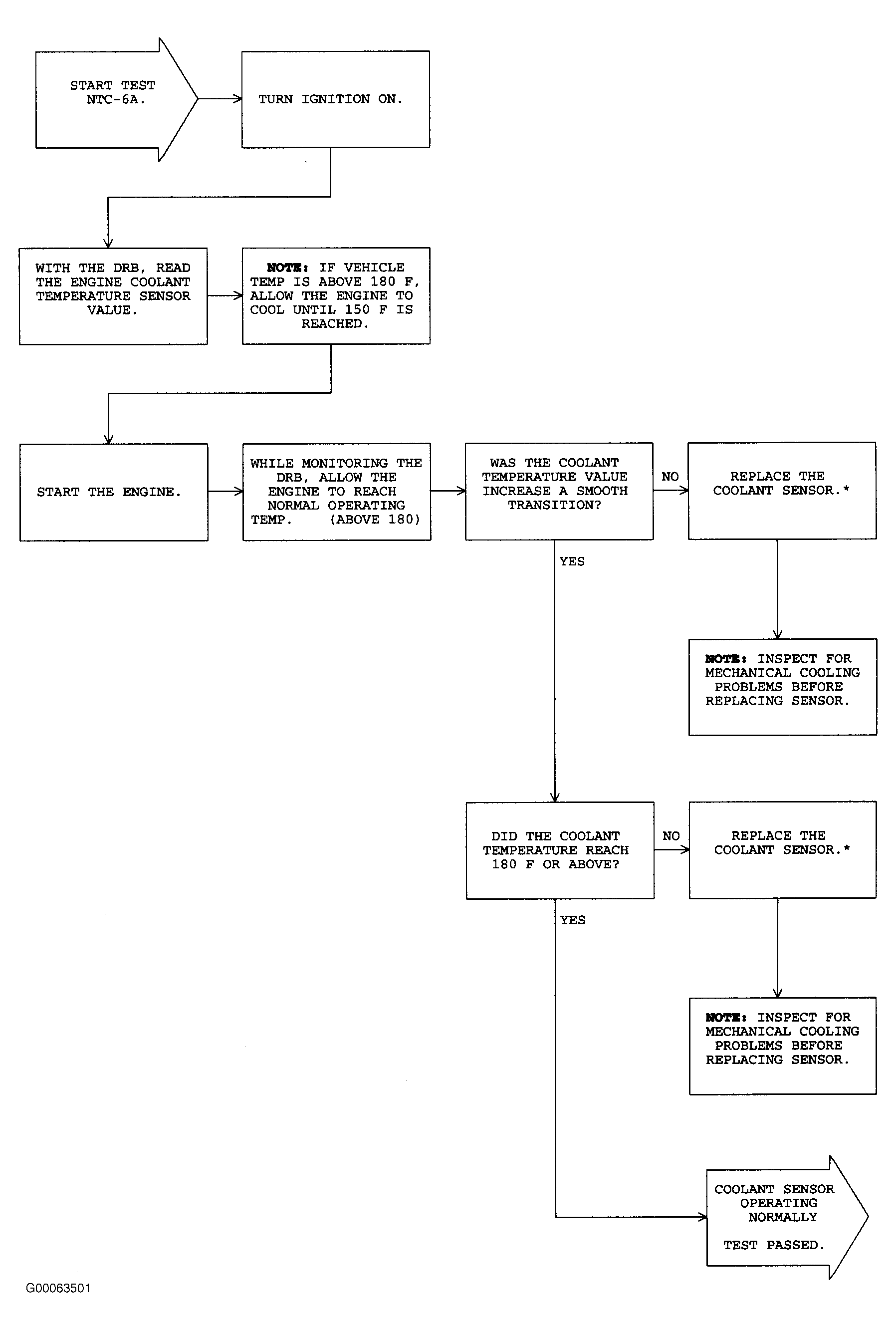

Fig 1: NTC-6A: Checking Coolant Sensor Calibration (1 Of 2)

Courtesy of DAIMLERCHRYSLER CORPORATION

Fig 2: NTC-6A: Checking Coolant Sensor Calibration (2 Of 2)

Courtesy of DAIMLERCHRYSLER CORPORATION
