TC-118A: Fuel System 1/1 Rich

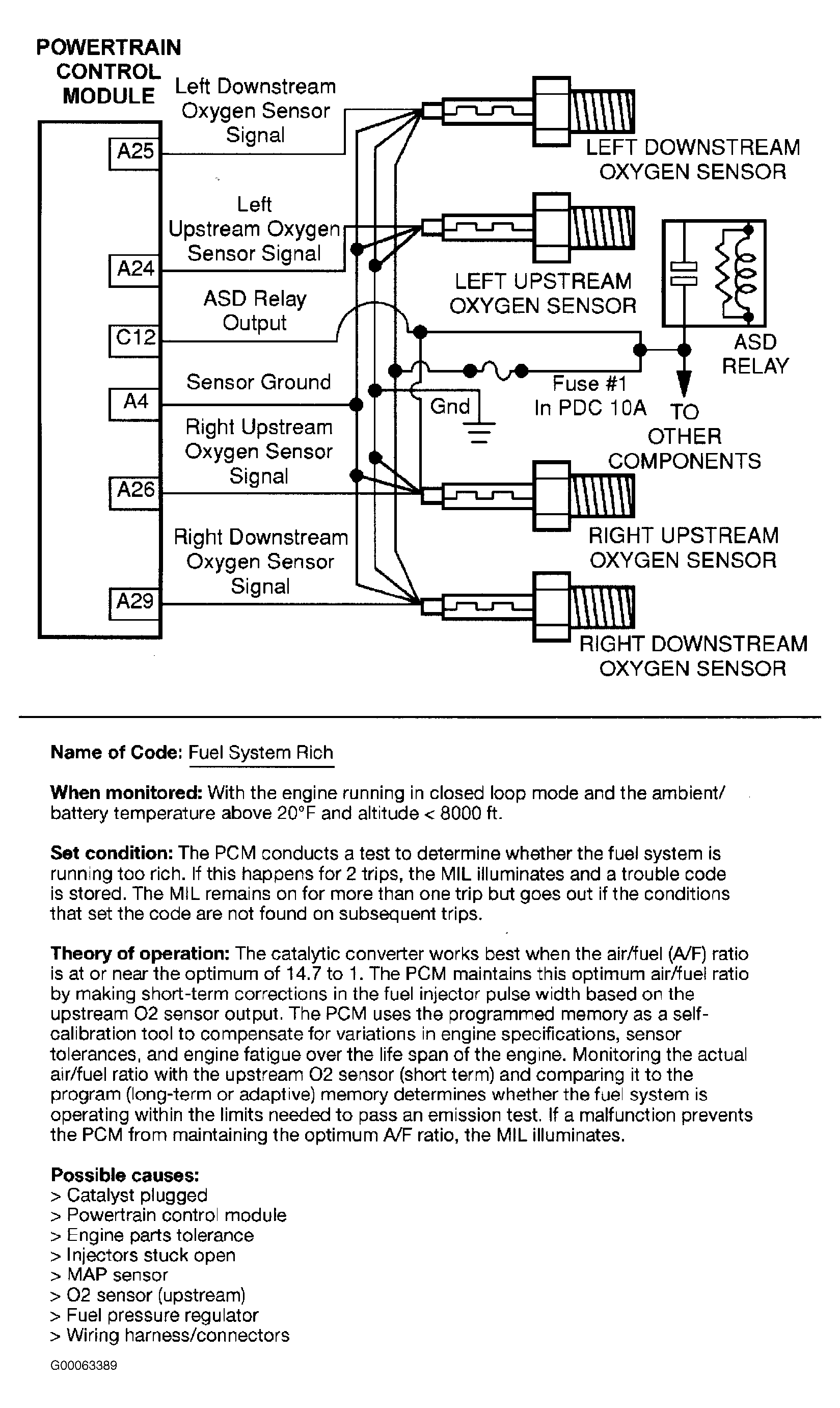

Fig 1: TC-118A: Fuel System 1/1 Rich (1 Of 2)

G00063389

Courtesy of DAIMLERCHRYSLER CORPORATION

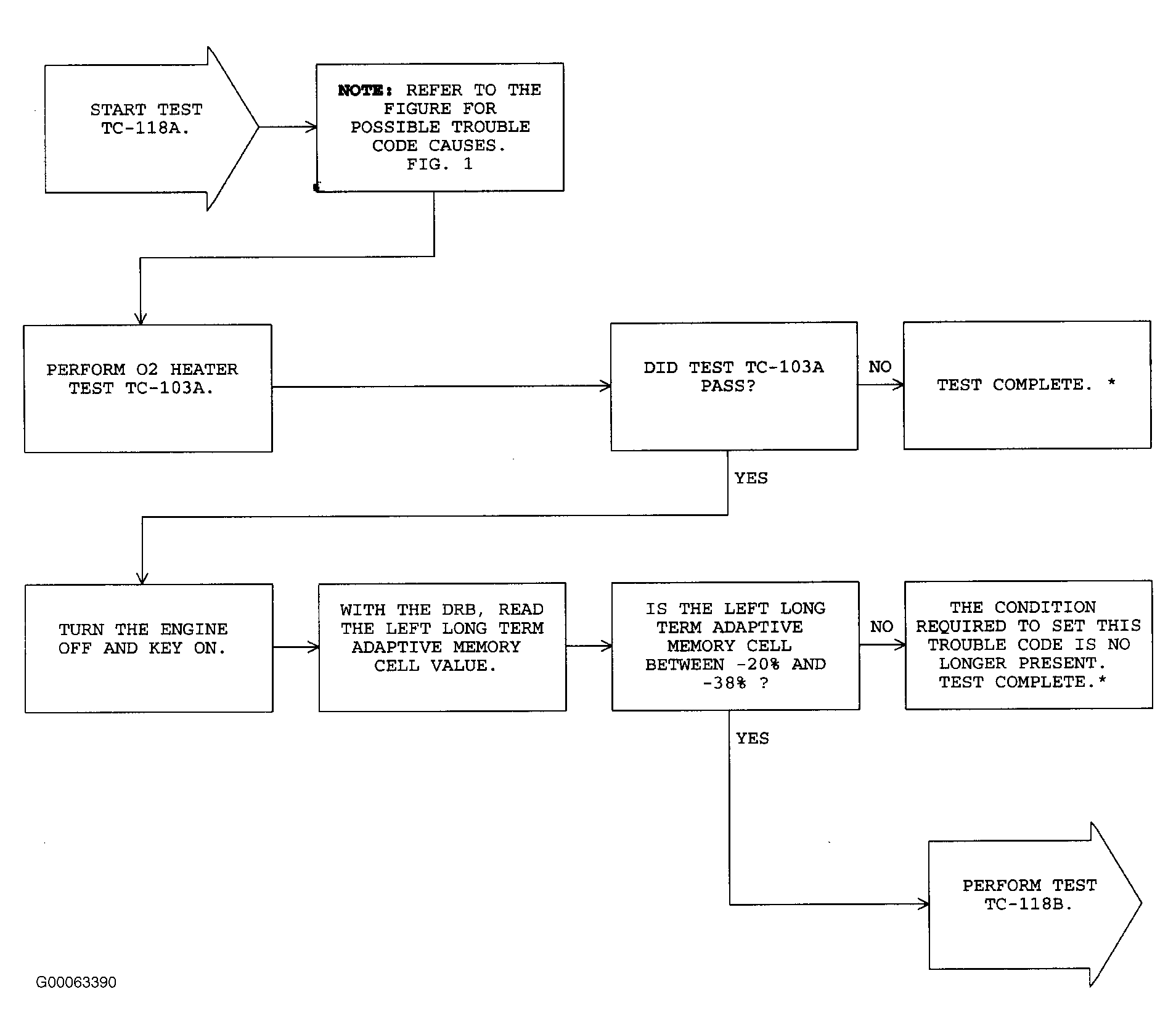

Fig 2: TC-118A: Fuel System 1/1 Rich (2 Of 2)

G00063390

Courtesy of DAIMLERCHRYSLER CORPORATION
