TC-120A: Fuel System 2/1 Rich

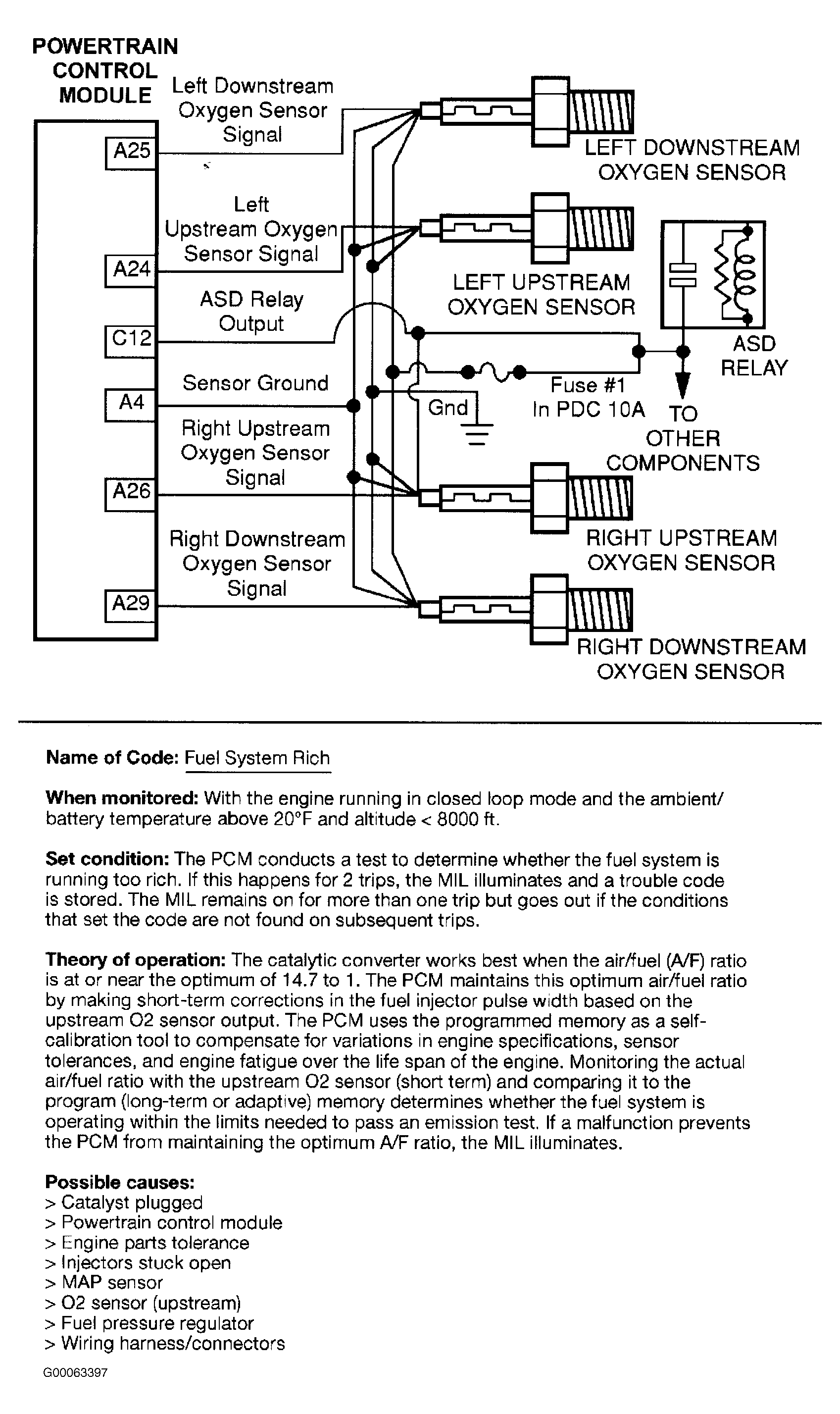

Fig 1: TC-120A: Fuel System 2/1 Rich (1 Of 2)

G00063397

Courtesy of DAIMLERCHRYSLER CORPORATION

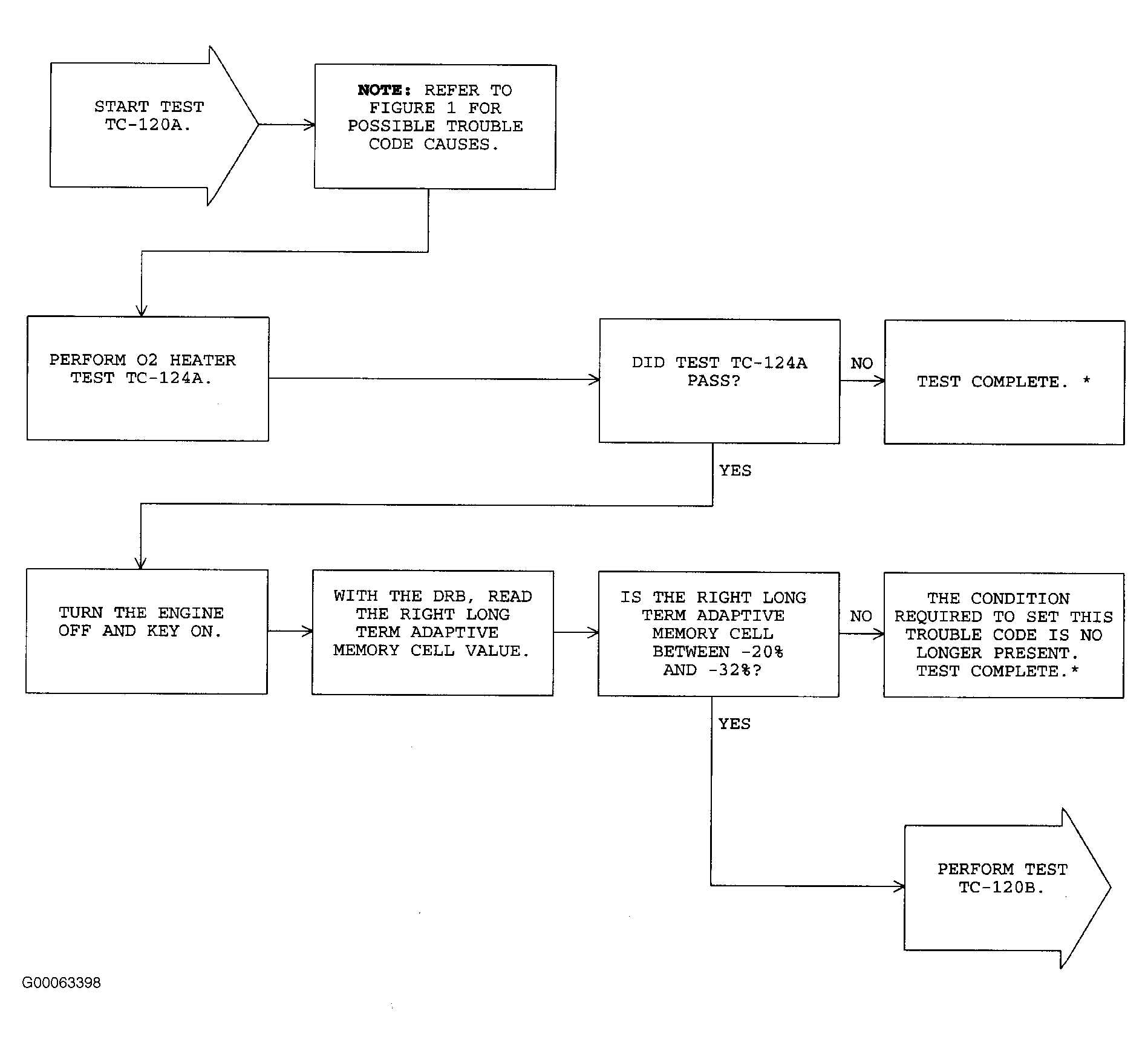

Fig 2: TC-120A: Fuel System 2/1 Rich (2 Of 2)

G00063398

Courtesy of DAIMLERCHRYSLER CORPORATION
