TC-122A: O2 Sensor 2/1 Slow Response

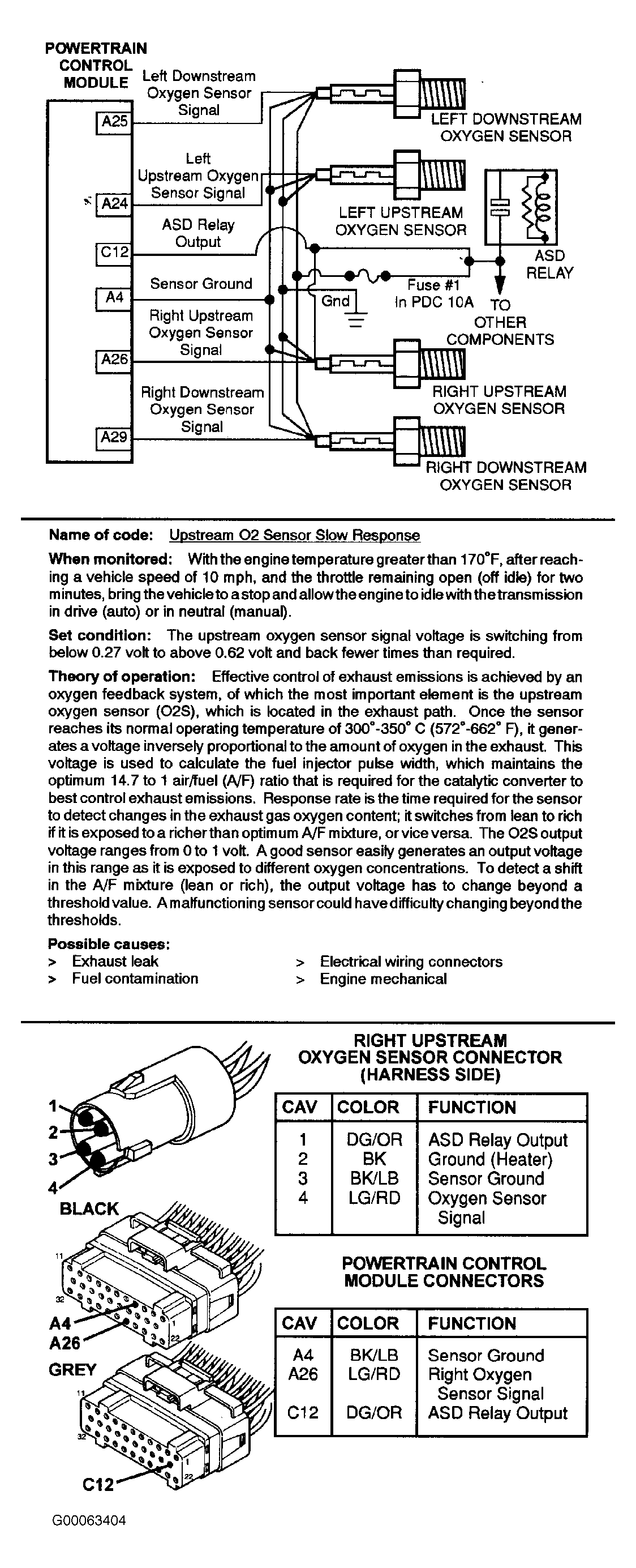

Fig 1: TC-122A: O2 Sensor 2/1 Slow Response (1 Of 2)

Courtesy of DAIMLERCHRYSLER CORPORATION

Fig 2: TC-122A: O2 Sensor 2/1 Slow Response (2 Of 2)

Courtesy of DAIMLERCHRYSLER CORPORATION
