TC-151A: Fuel Level Unit No Change Over Miles

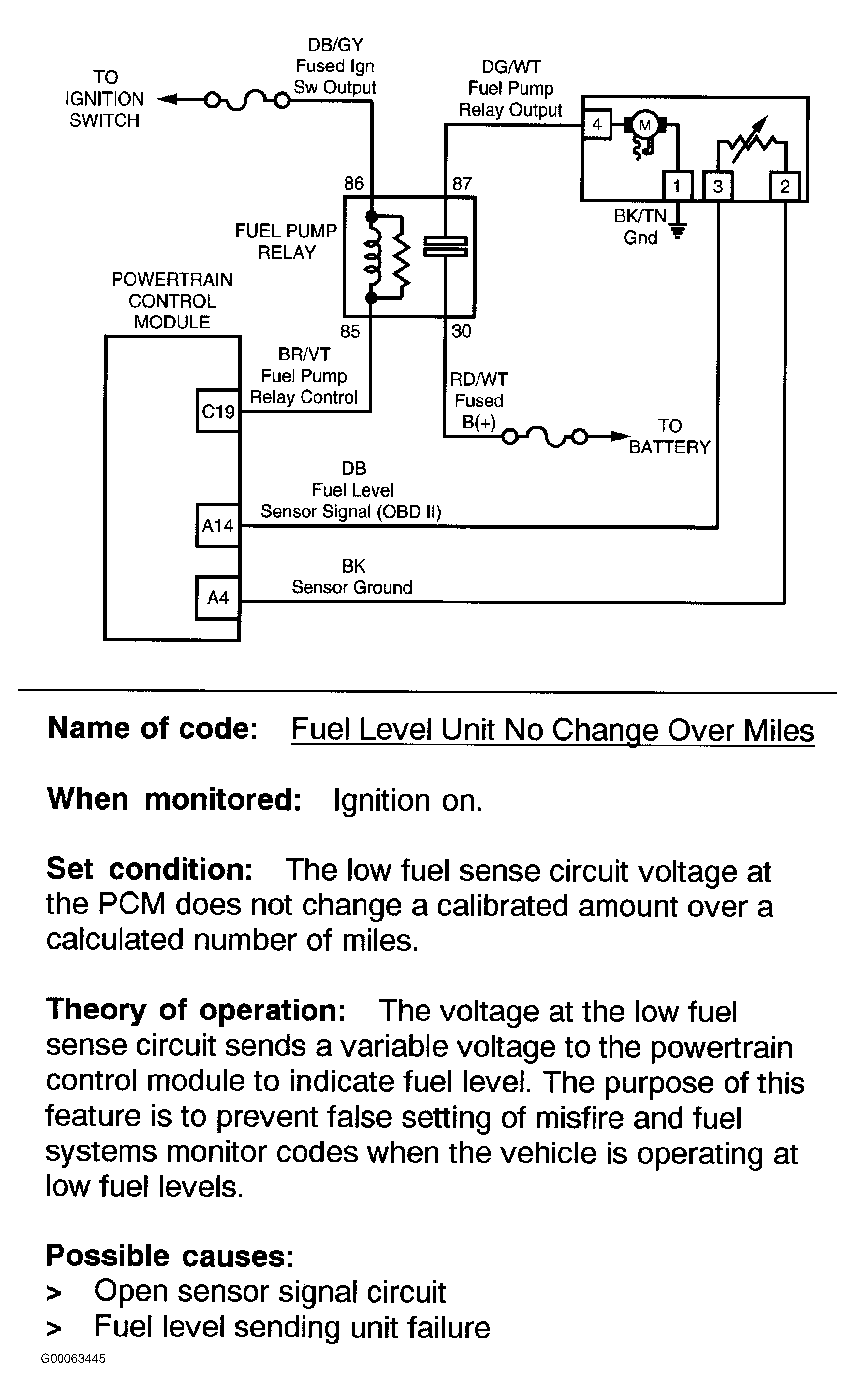

Fig 1: TC-151A: Fuel Level Unit No Change Over Miles (1 Of 2)

Courtesy of DAIMLERCHRYSLER CORPORATION

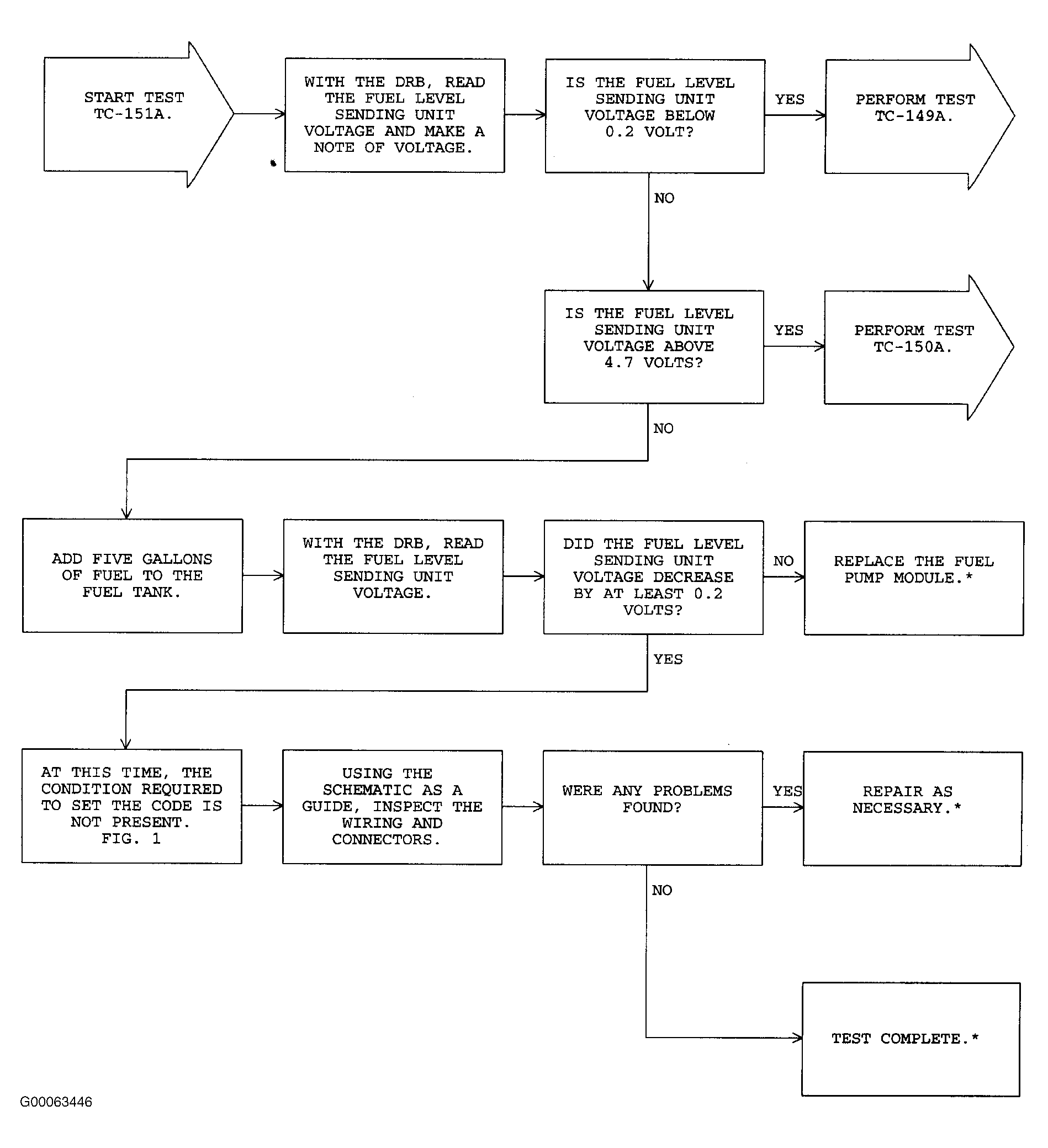

Fig 2: TC-151A: Fuel Level Unit No Change Over Miles (2 Of 2)

Courtesy of DAIMLERCHRYSLER CORPORATION
