TC-19A: Injector No. 3 Control Circuit

NOTE: Perform Test TC-21A Before Proceeding

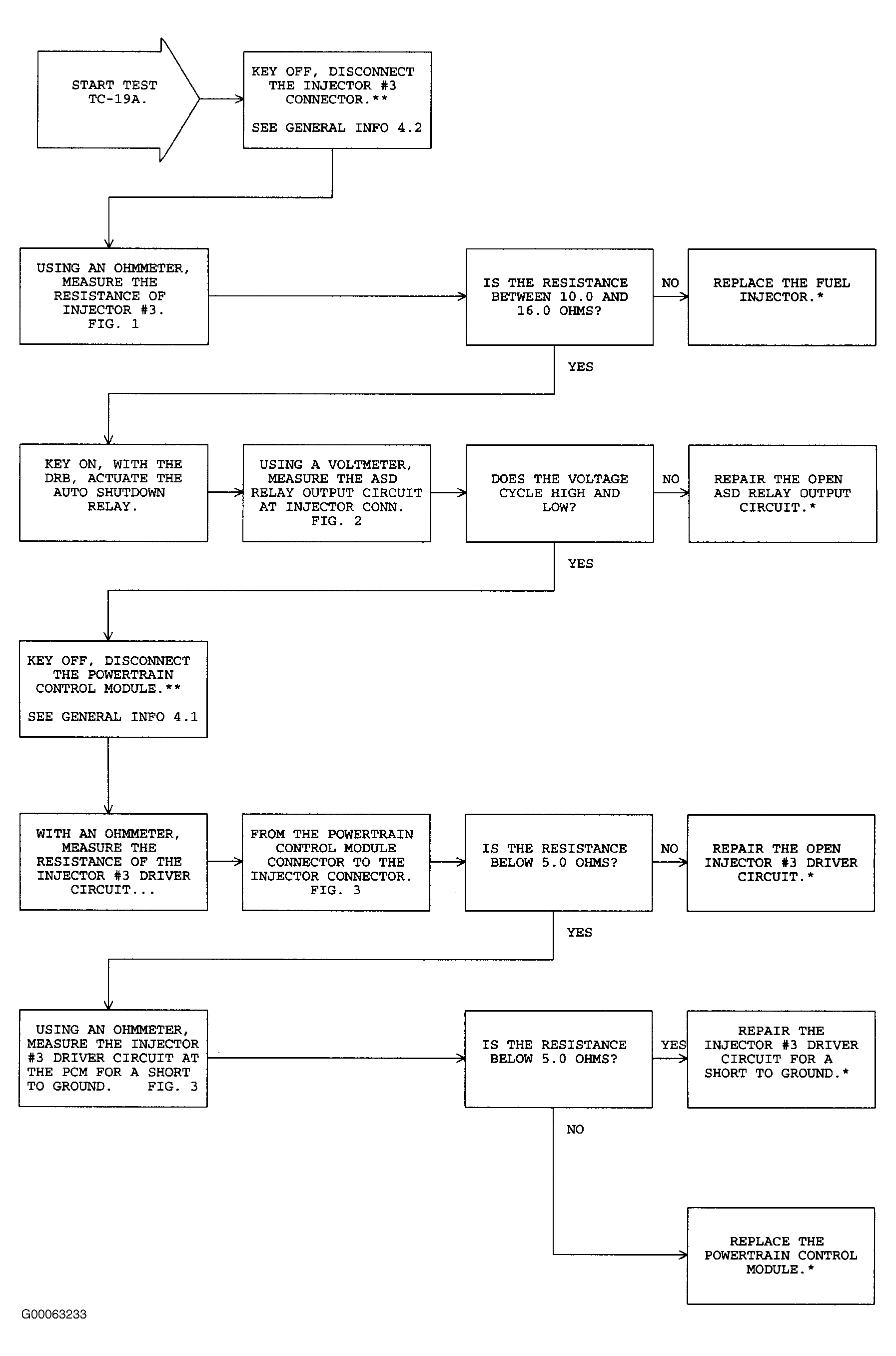

Fig 1: TC-19A: Injector No. 3 Control Circuit (1 Of 2)

Courtesy of DAIMLERCHRYSLER CORPORATION

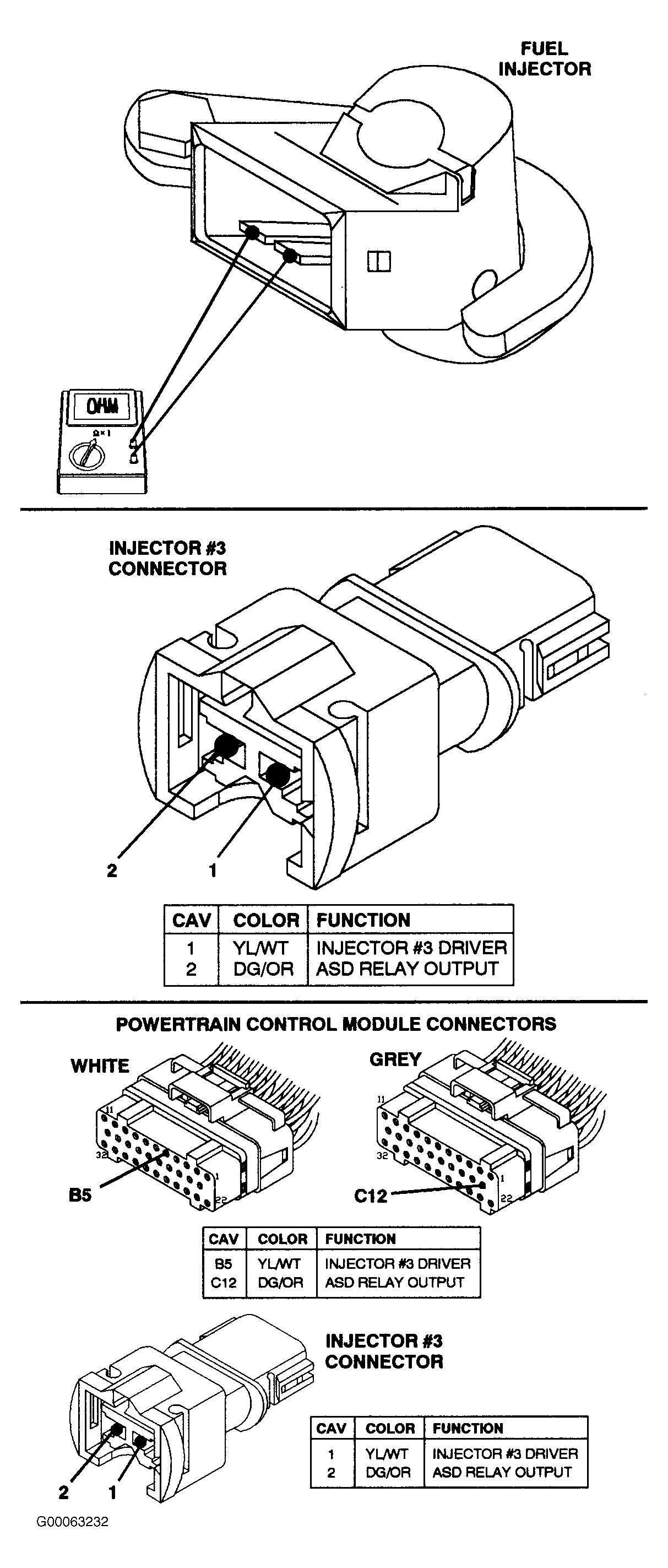

Fig 2: TC-19A: Injector No. 3 Control Circuit (2 Of 2)

Courtesy of DAIMLERCHRYSLER CORPORATION
