TC-1C: No Cam Signal At Pcm

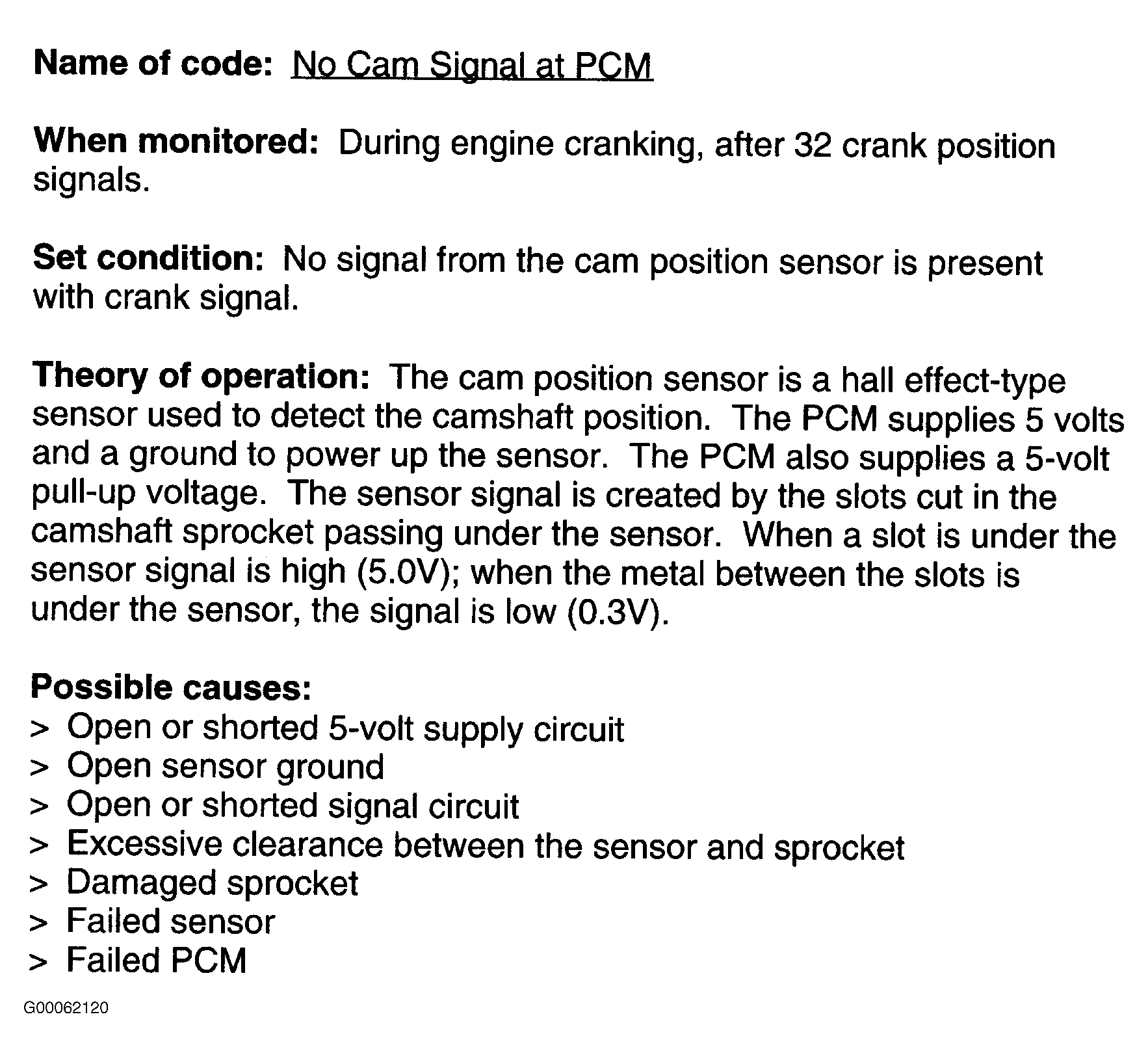

Fig 1: TC-1C: No CAM Signal At PCM (1 Of 2)

G00062120

Courtesy of DAIMLERCHRYSLER CORPORATION

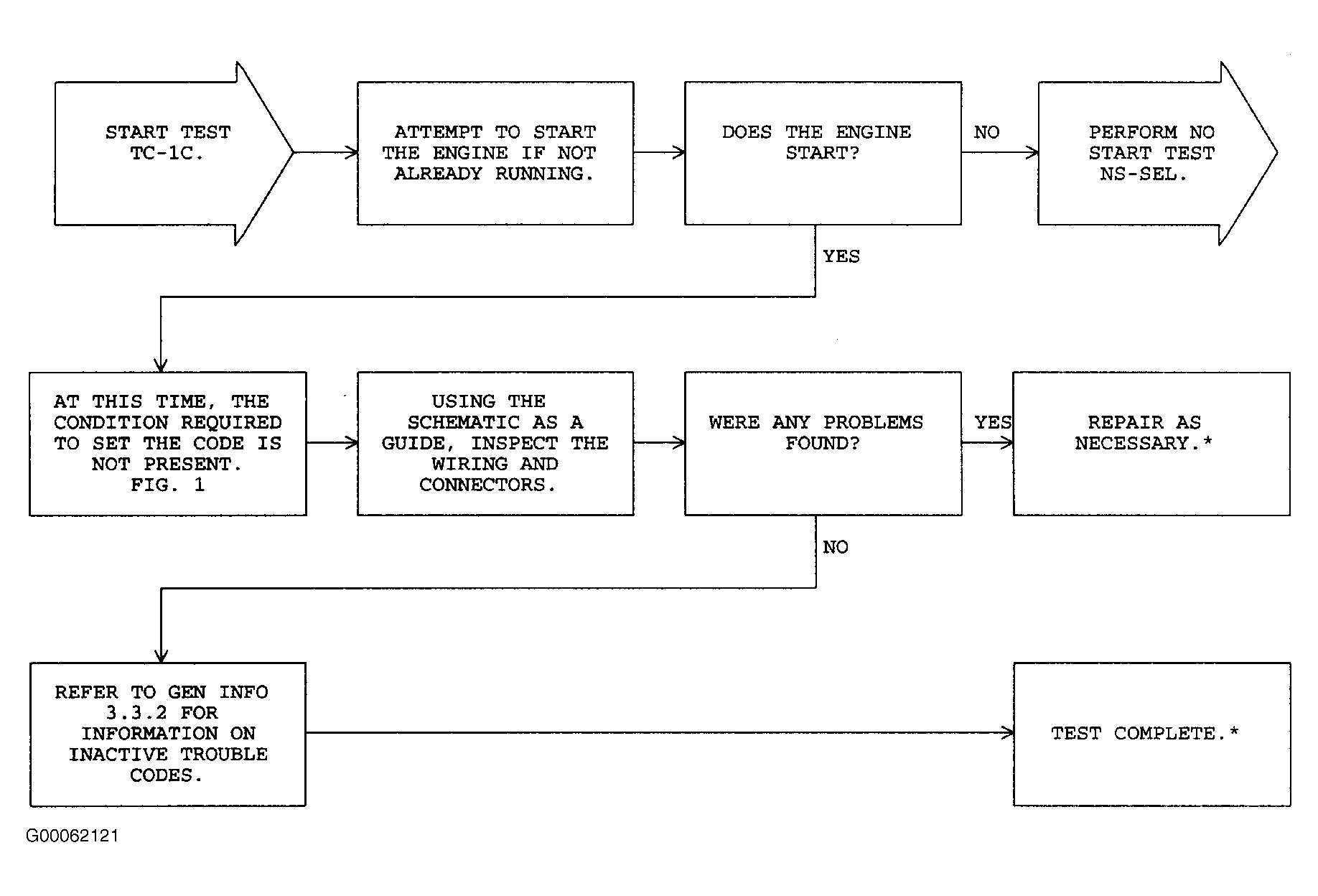

Fig 2: TC-1C: No CAM Signal At PCM (2 Of 2)

G00062121

Courtesy of DAIMLERCHRYSLER CORPORATION
