TC-34A: Skip Shift Solenoid Circuit

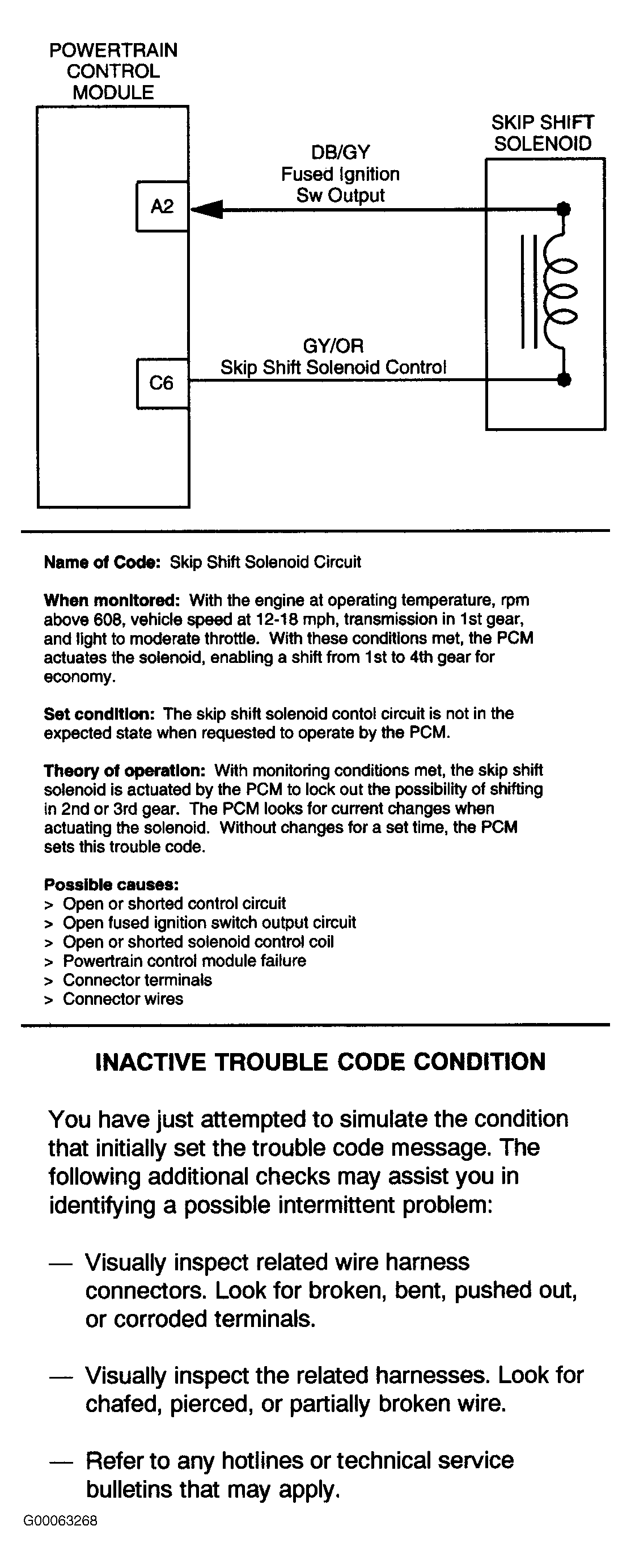

Fig 1: TC-34A: Skip Shift Solenoid Circuit (1 Of 4)

Courtesy of DAIMLERCHRYSLER CORPORATION

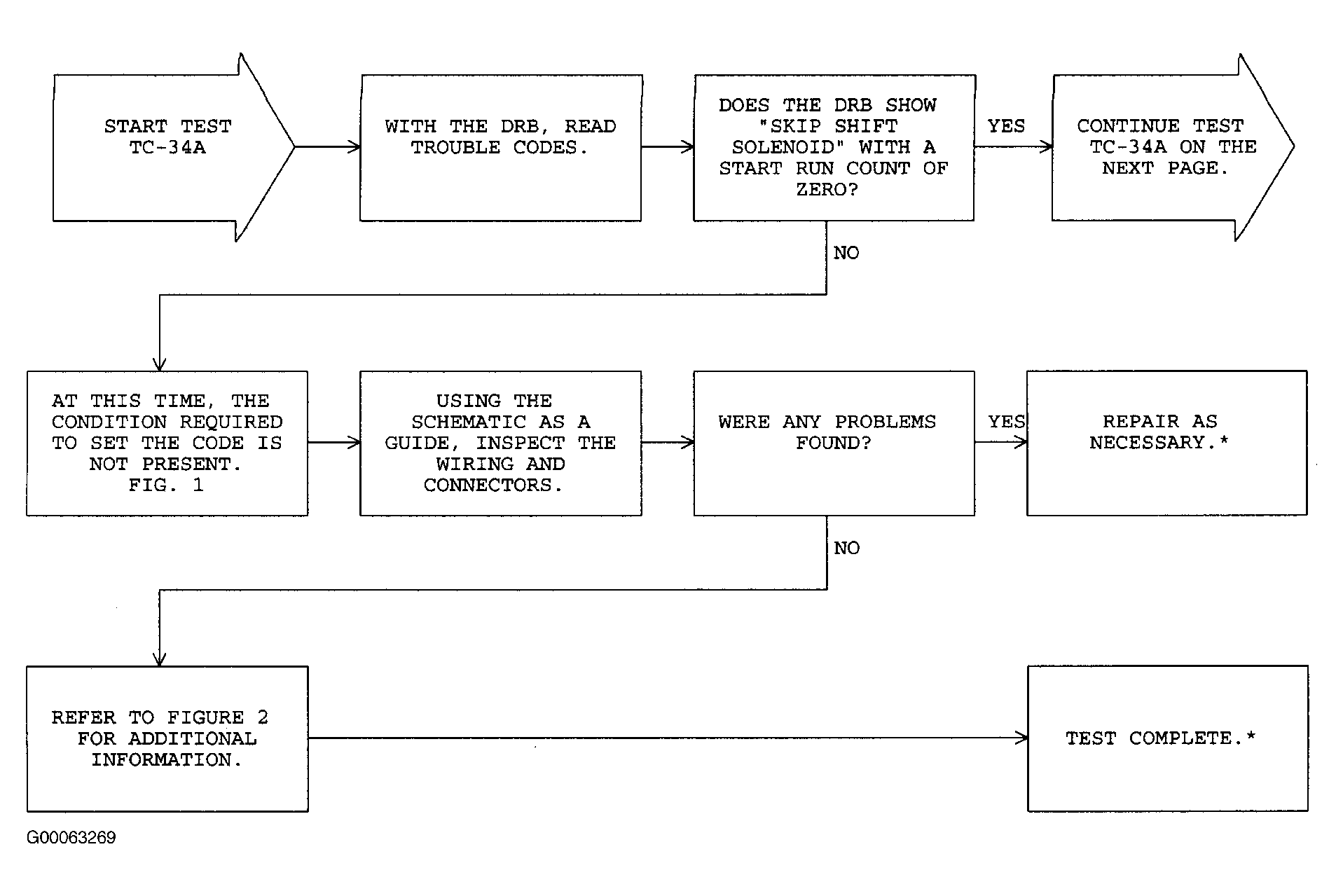

Fig 2: TC-34A: Skip Shift Solenoid Circuit (2 Of 4)

Courtesy of DAIMLERCHRYSLER CORPORATION

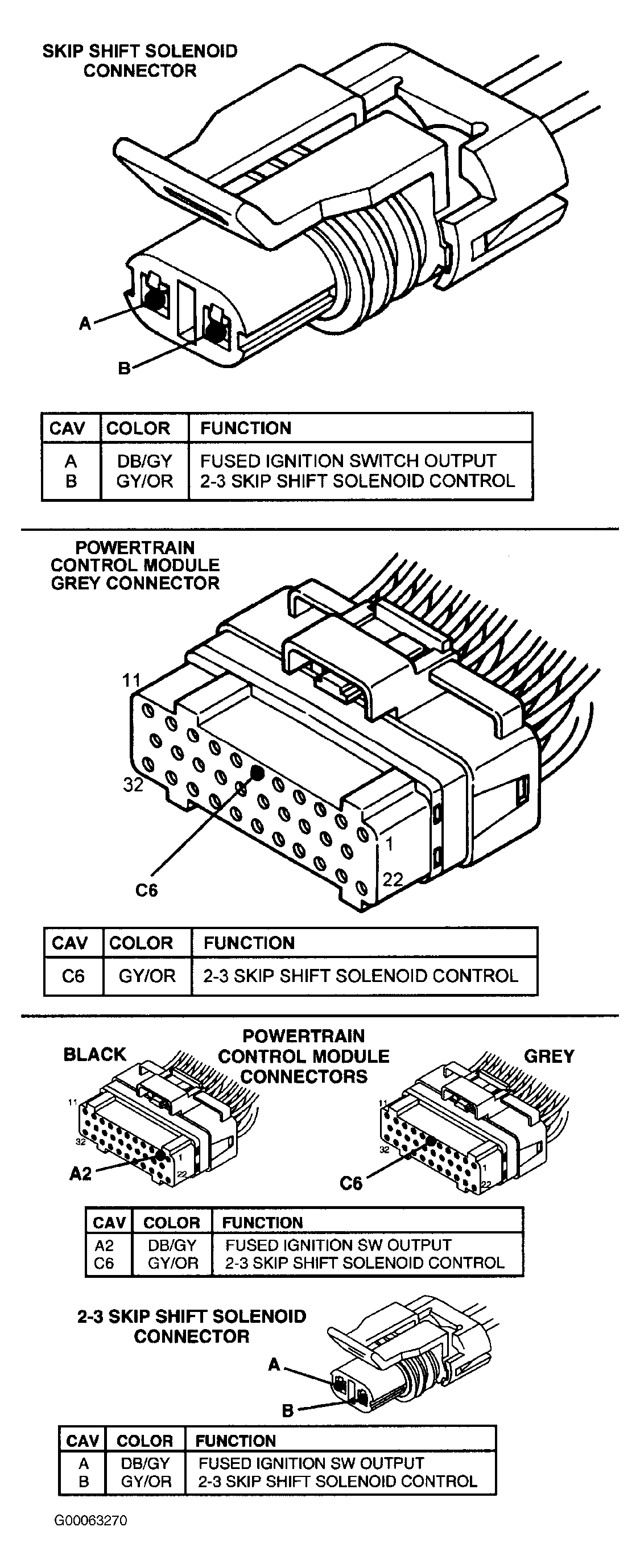

Fig 3: TC-34A: Skip Shift Solenoid Circuit (3 Of 4)

Courtesy of DAIMLERCHRYSLER CORPORATION

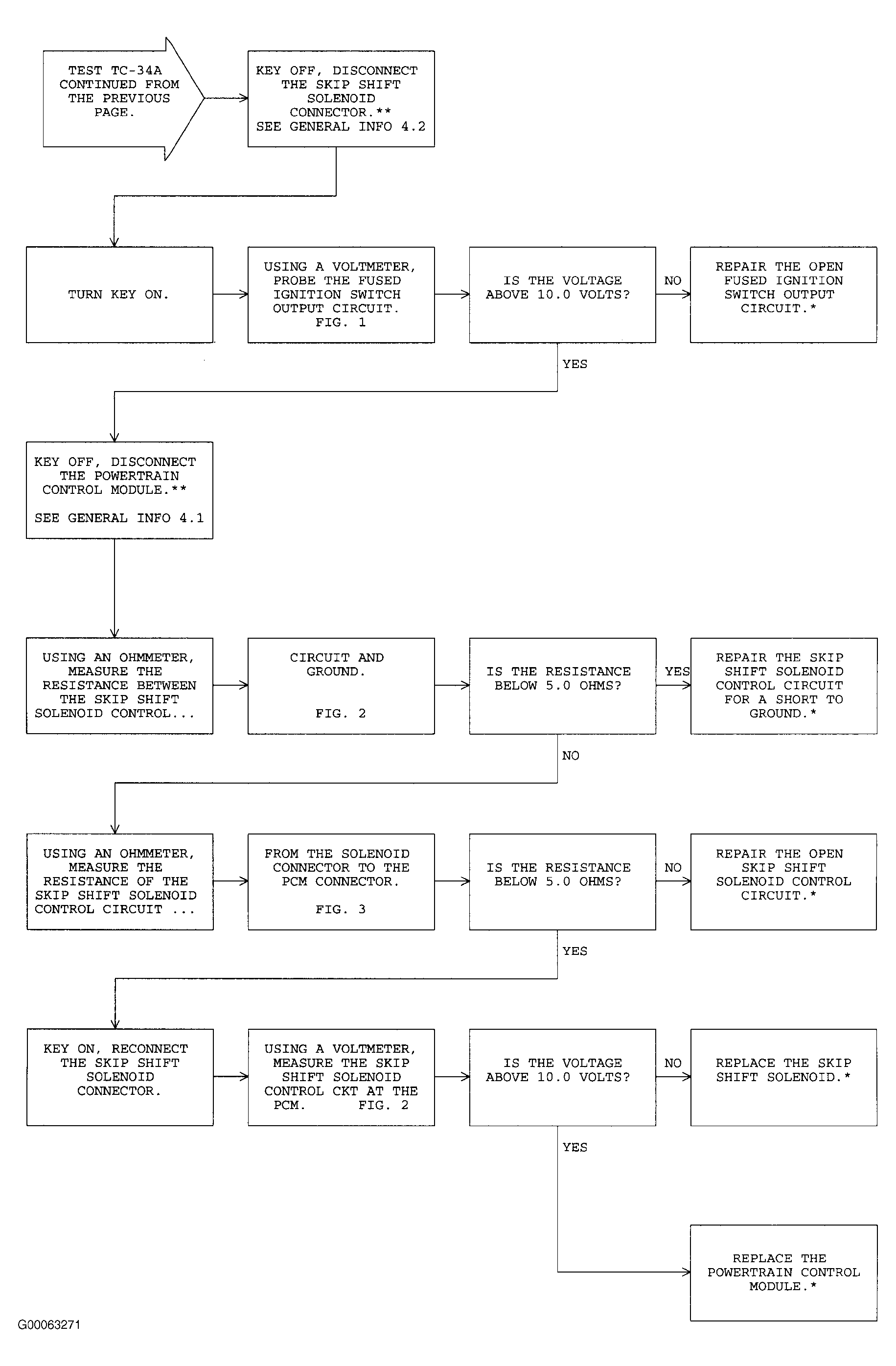

Fig 4: TC-34A: Skip Shift Solenoid Circuit (4 Of 4)

Courtesy of DAIMLERCHRYSLER CORPORATION
