TC-40B: No Crank Reference Signal At Pcm

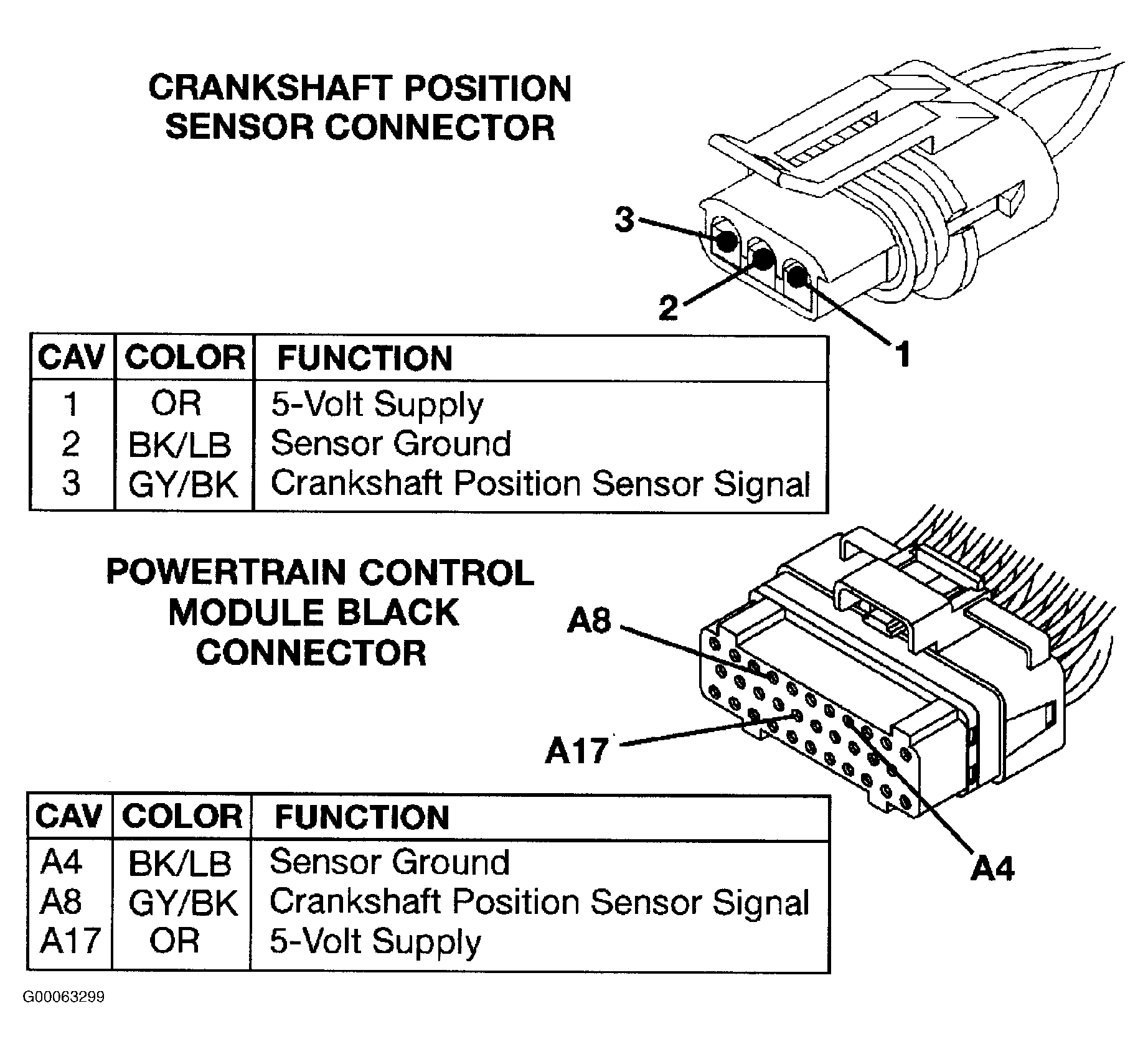

Fig 1: TC-40B: No Crank Reference Signal At PCM (1 Of 2)

Courtesy of DAIMLERCHRYSLER CORPORATION

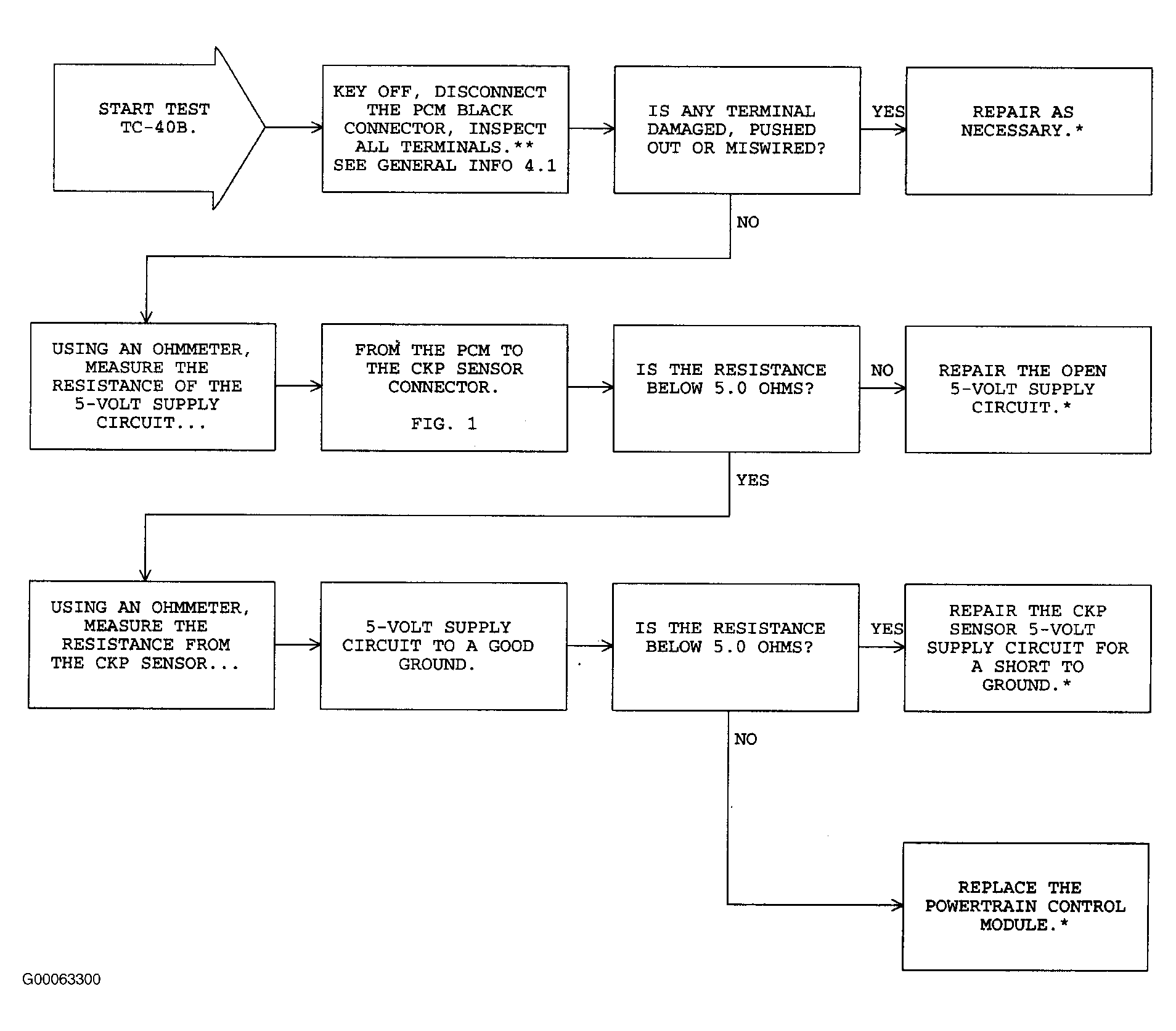

Fig 2: TC-40B: No Crank Reference Signal At PCM (2 Of 2)

Courtesy of DAIMLERCHRYSLER CORPORATION
