TC-125A: O2 Sensor 2/2 Heater Failure

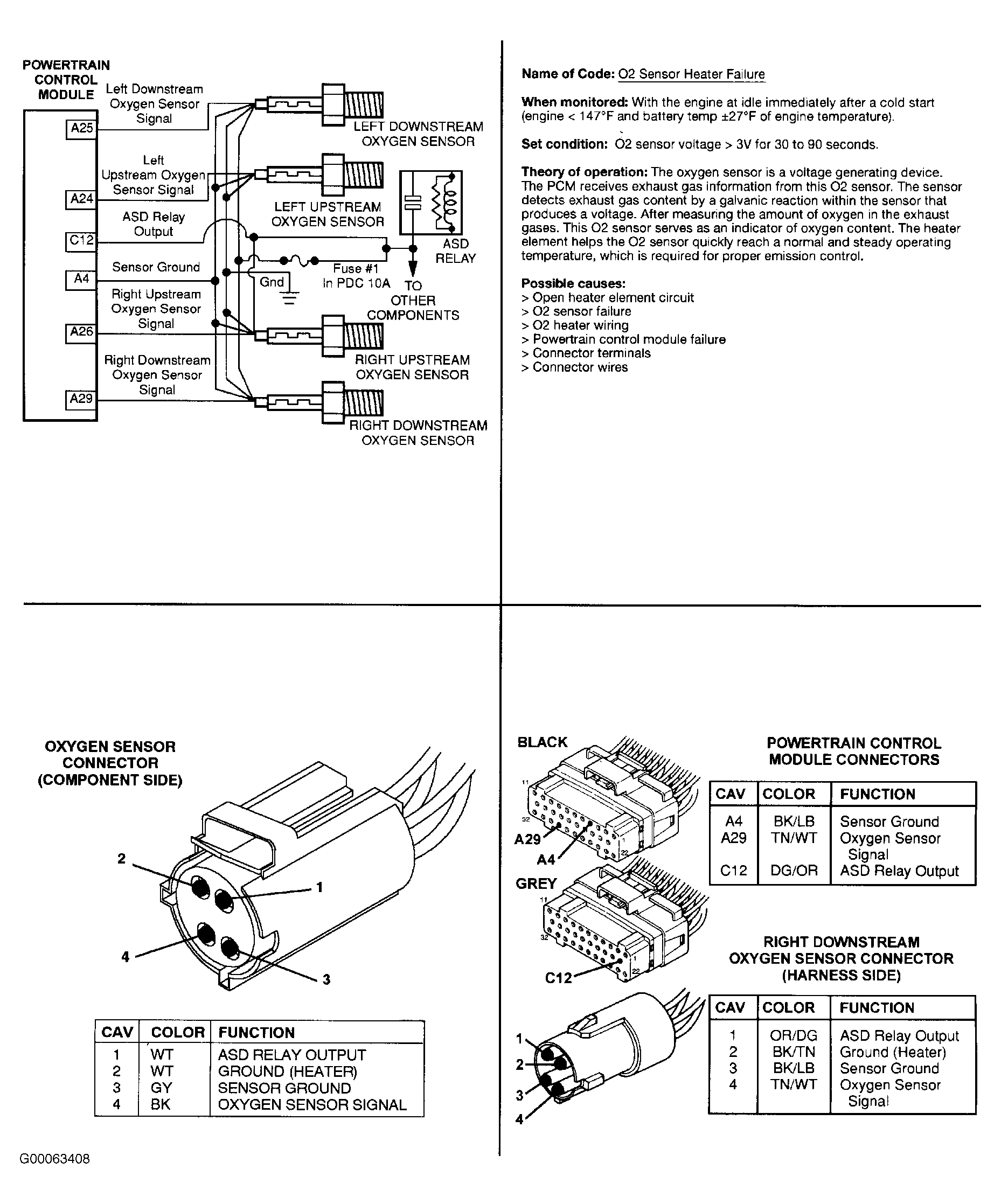

Fig 1: TC-125A: O2 Sensor 2/2 Heater Failure (1 Of 2)

Courtesy of DAIMLERCHRYSLER CORPORATION

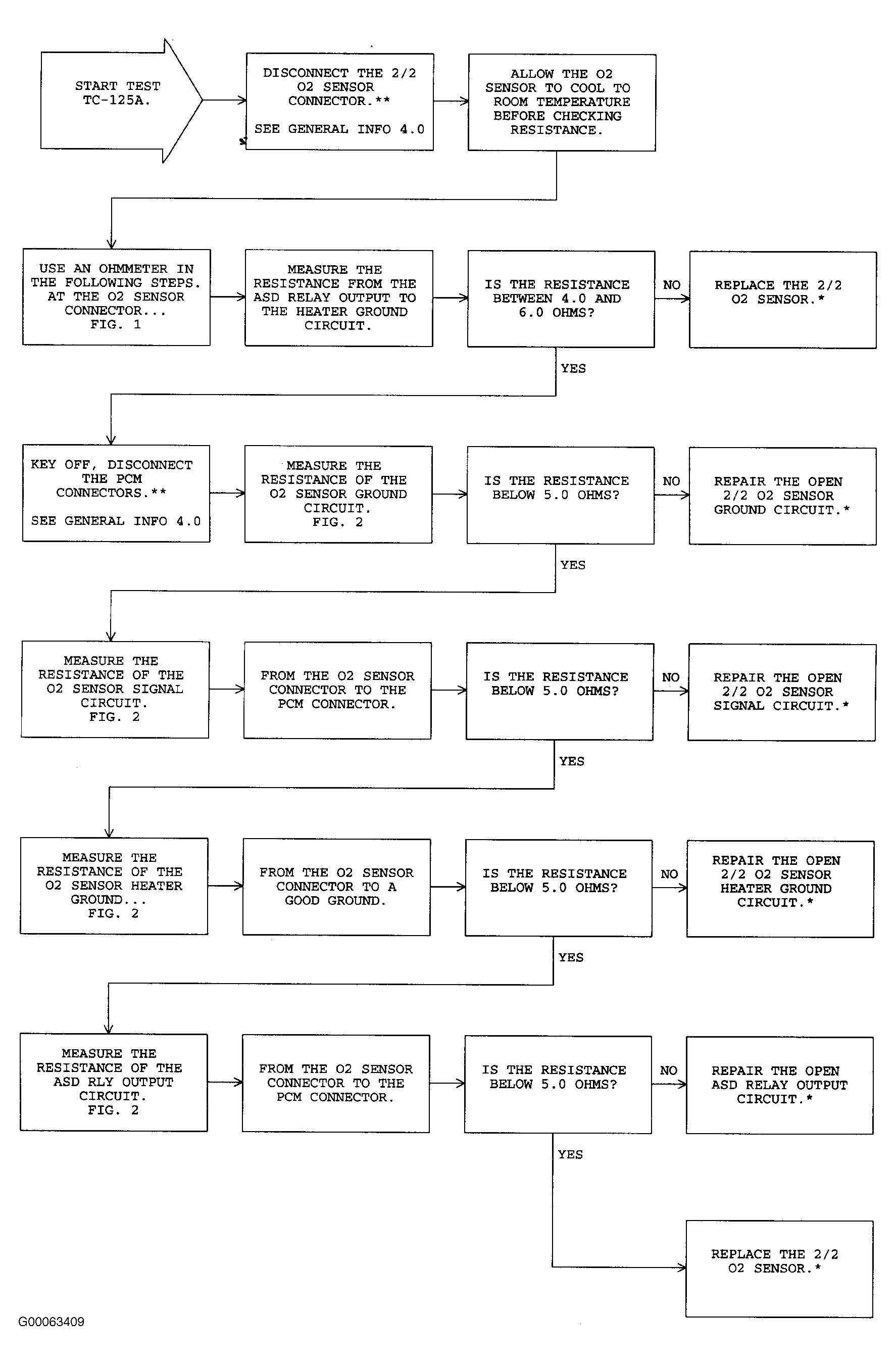

Fig 2: TC-125A: O2 Sensor 2/2 Heater Failure (2 Of 2)

Courtesy of DAIMLERCHRYSLER CORPORATION
