Performance Test

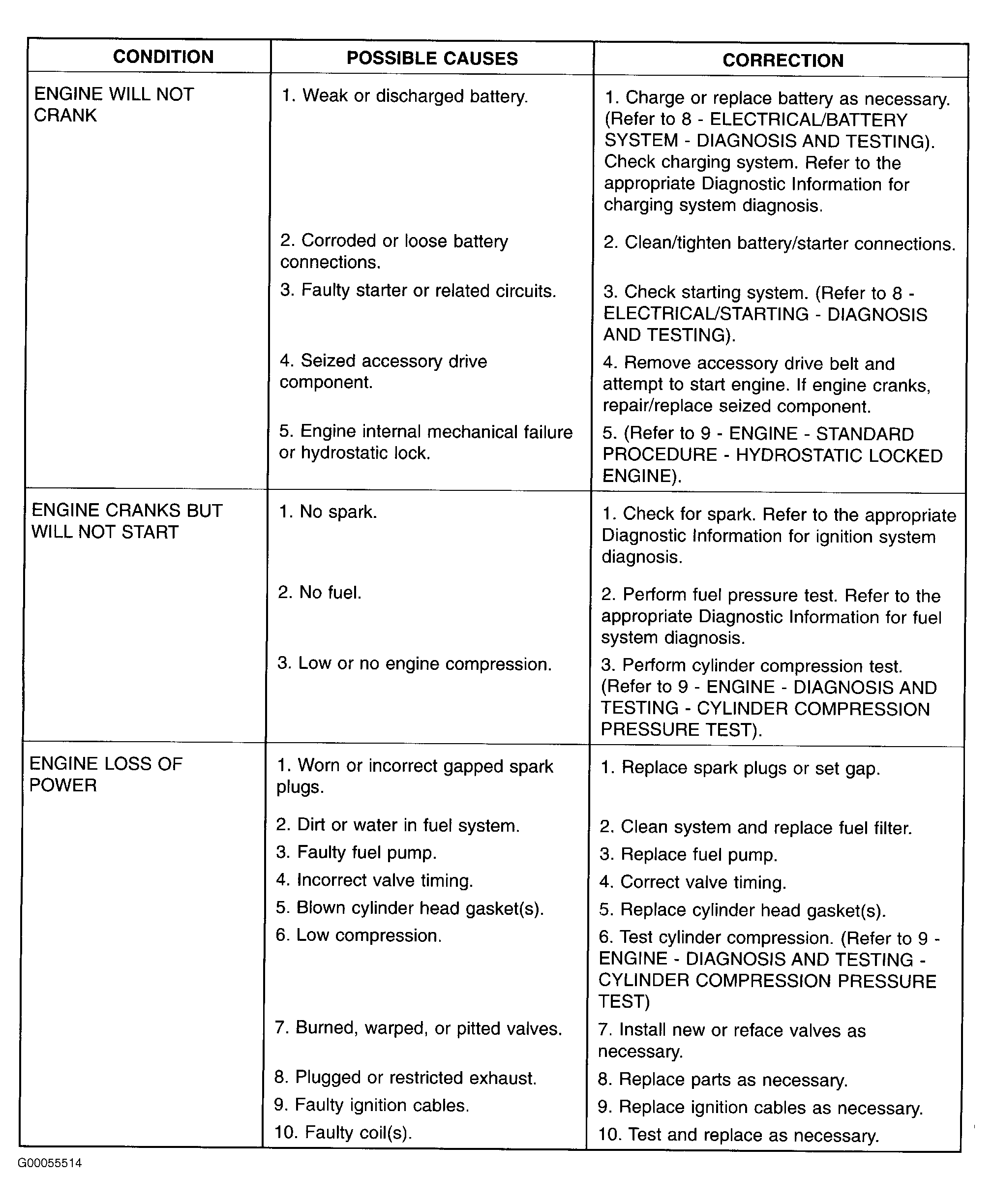

Fig 1: Engine Diagnosis - Performance Test (1 Of 2)
Courtesy of DAIMLERCHRYSLER CORPORATION

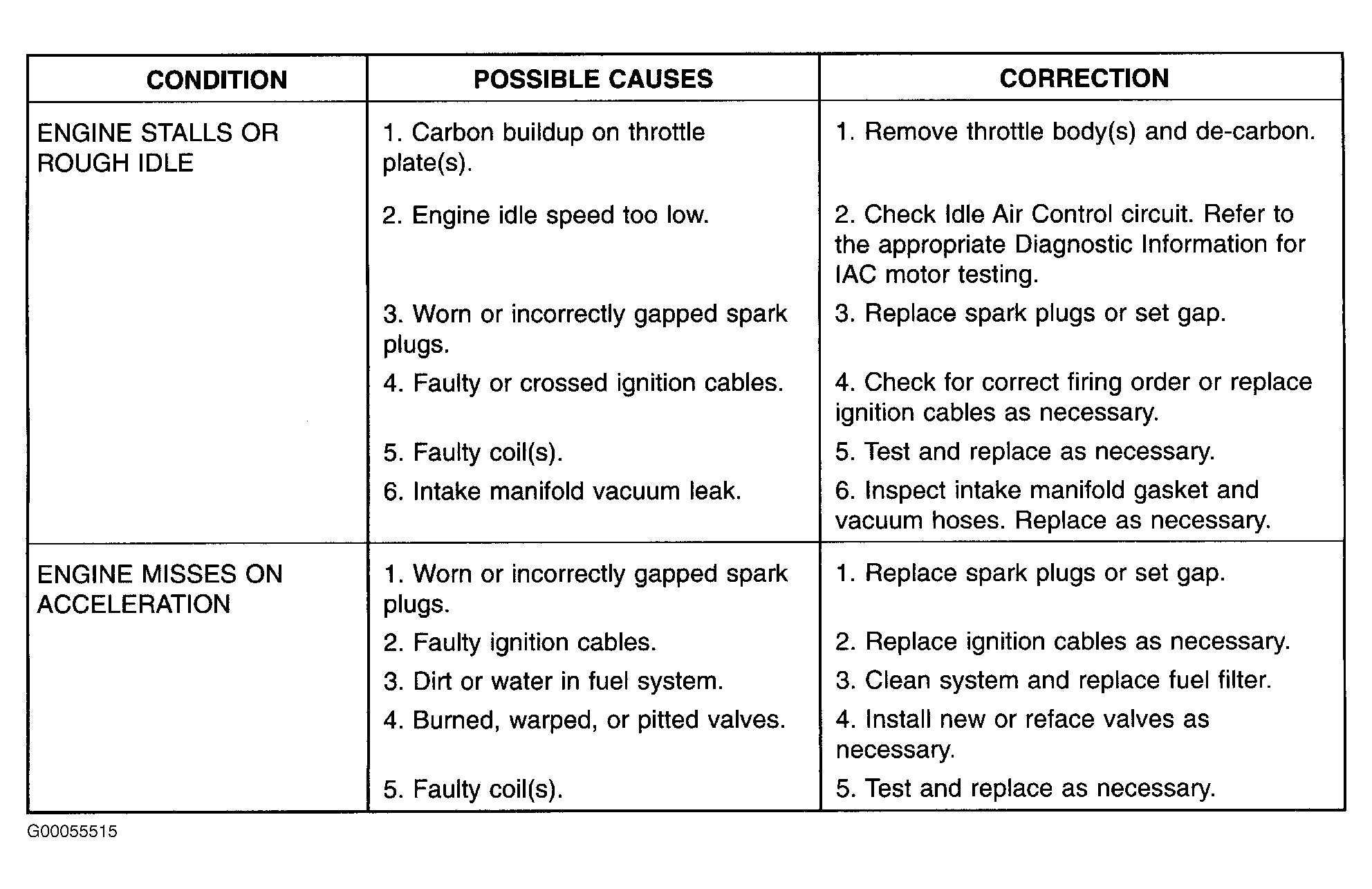

Fig 2: Engine Diagnosis - Performance Test (2 Of 2)
Courtesy of DAIMLERCHRYSLER CORPORATION
Courtesy of DAIMLERCHRYSLER CORPORATION
Courtesy of DAIMLERCHRYSLER CORPORATION
