TC-113B: EVAP Purge Flow Monitor Failure

WARNING: This page is about a different car, the 1997 Dodge Viper and 1996 Dodge Viper. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Perform Test TC-113A Before Proceeding

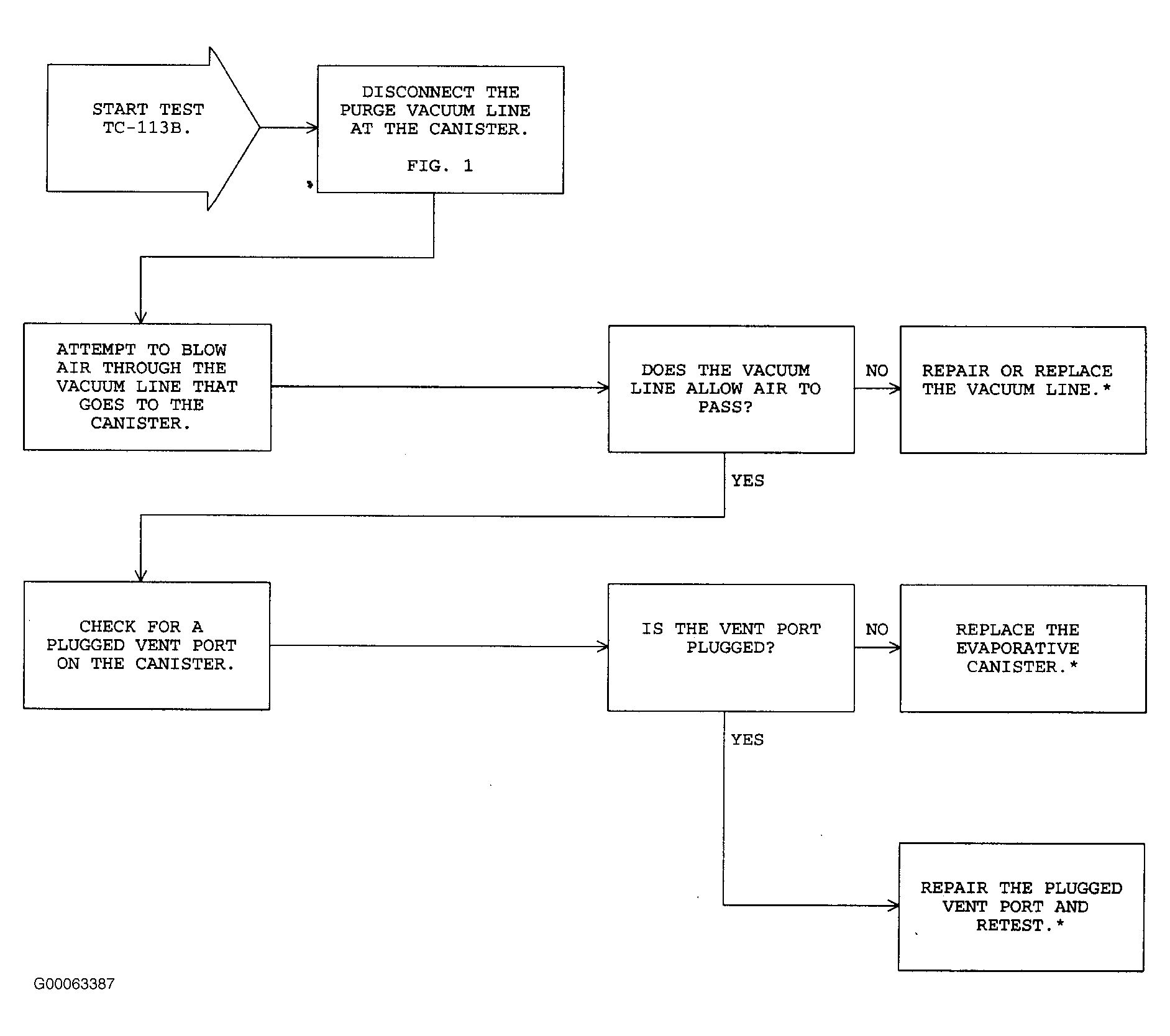

Fig 1: TC-113B: EVAP Purge Flow Monitor Failure (1 Of 2)

Courtesy of DAIMLERCHRYSLER CORPORATION

Fig 2: TC-113B: EVAP Purge Flow Monitor Failure (2 Of 2)

Courtesy of DAIMLERCHRYSLER CORPORATION
