TC-138A: Target Idle Not Reached

WARNING: This page is about a different car, the 1997 Dodge Viper and 1996 Dodge Viper. However, it is still accessible from the selected car via links, so may be relevant.

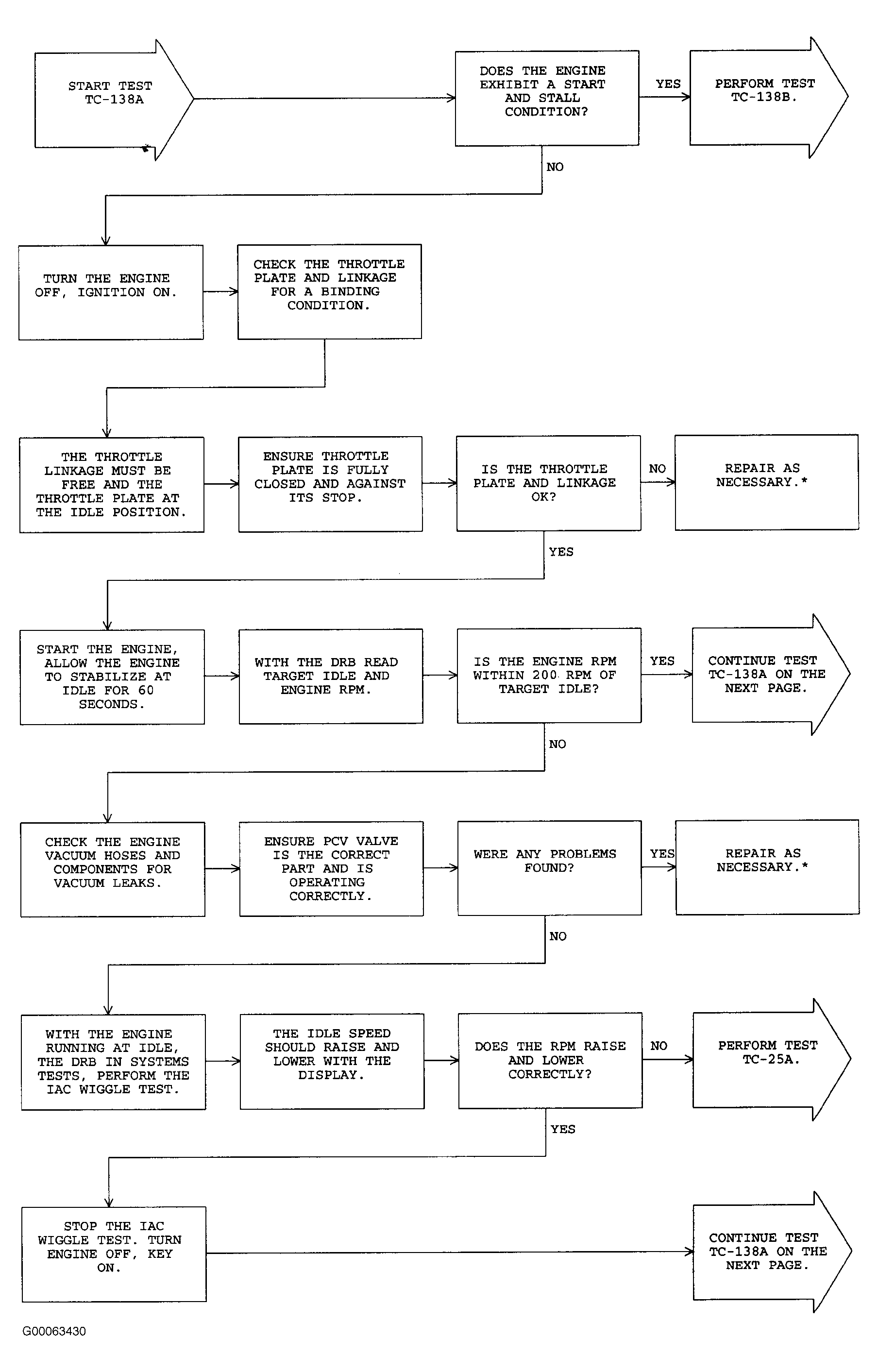

Fig 1: TC-138A: Target Idle Not Reached (1 Of 4)

Courtesy of DAIMLERCHRYSLER CORPORATION

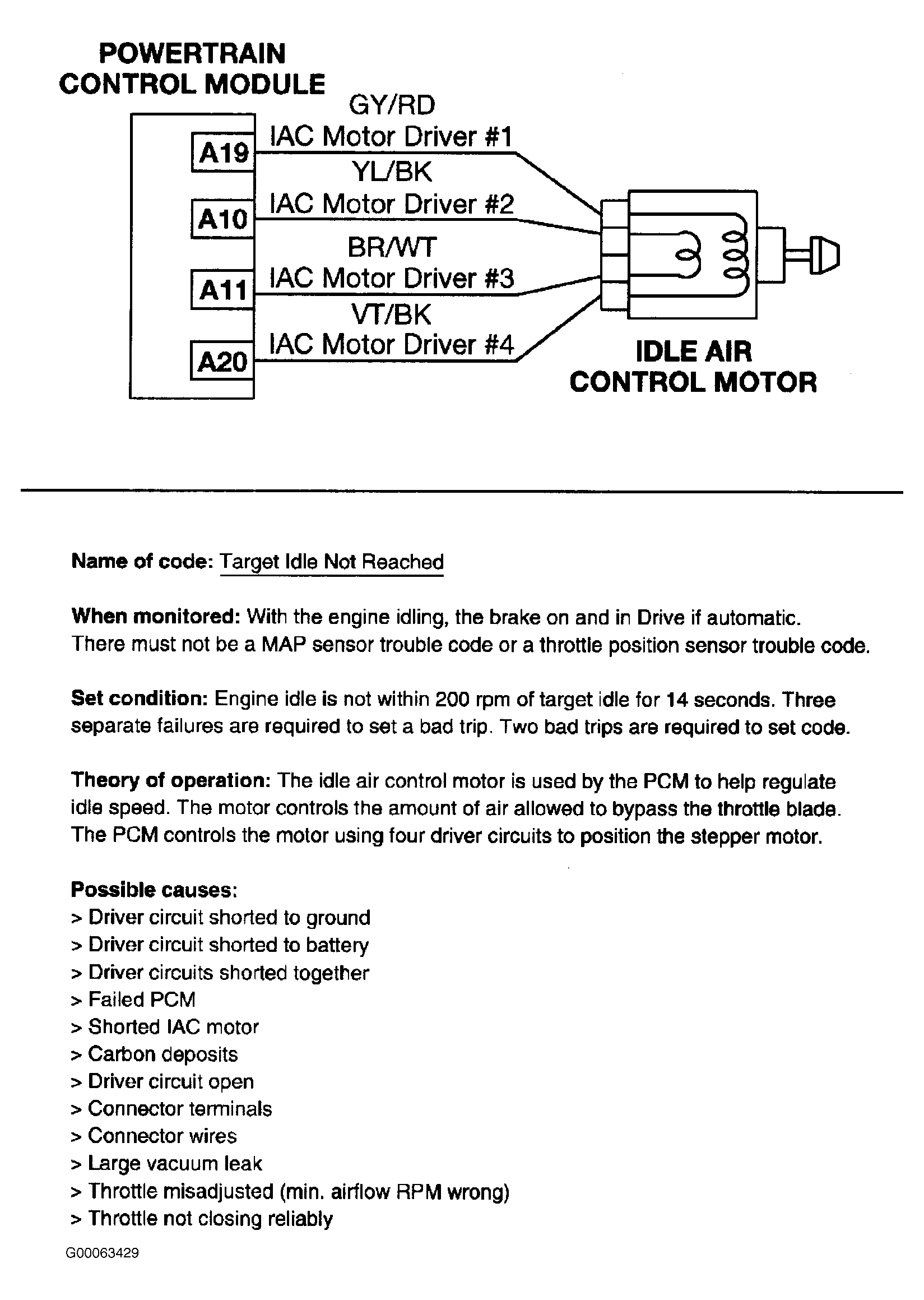

Fig 2: TC-138A: Target Idle Not Reached (2 Of 4)

Courtesy of DAIMLERCHRYSLER CORPORATION

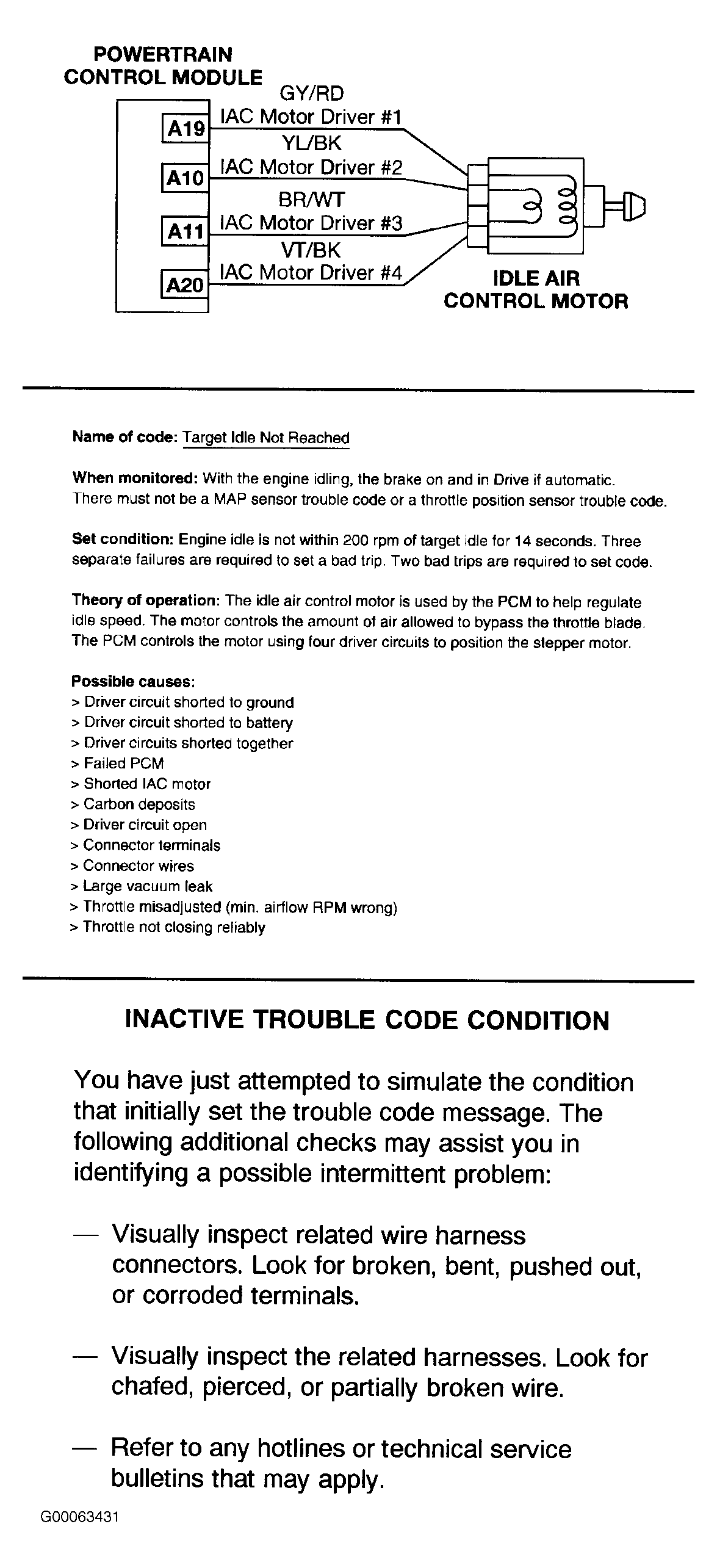

Fig 3: TC-138A: Target Idle Not Reached (3 Of 4)

Courtesy of DAIMLERCHRYSLER CORPORATION

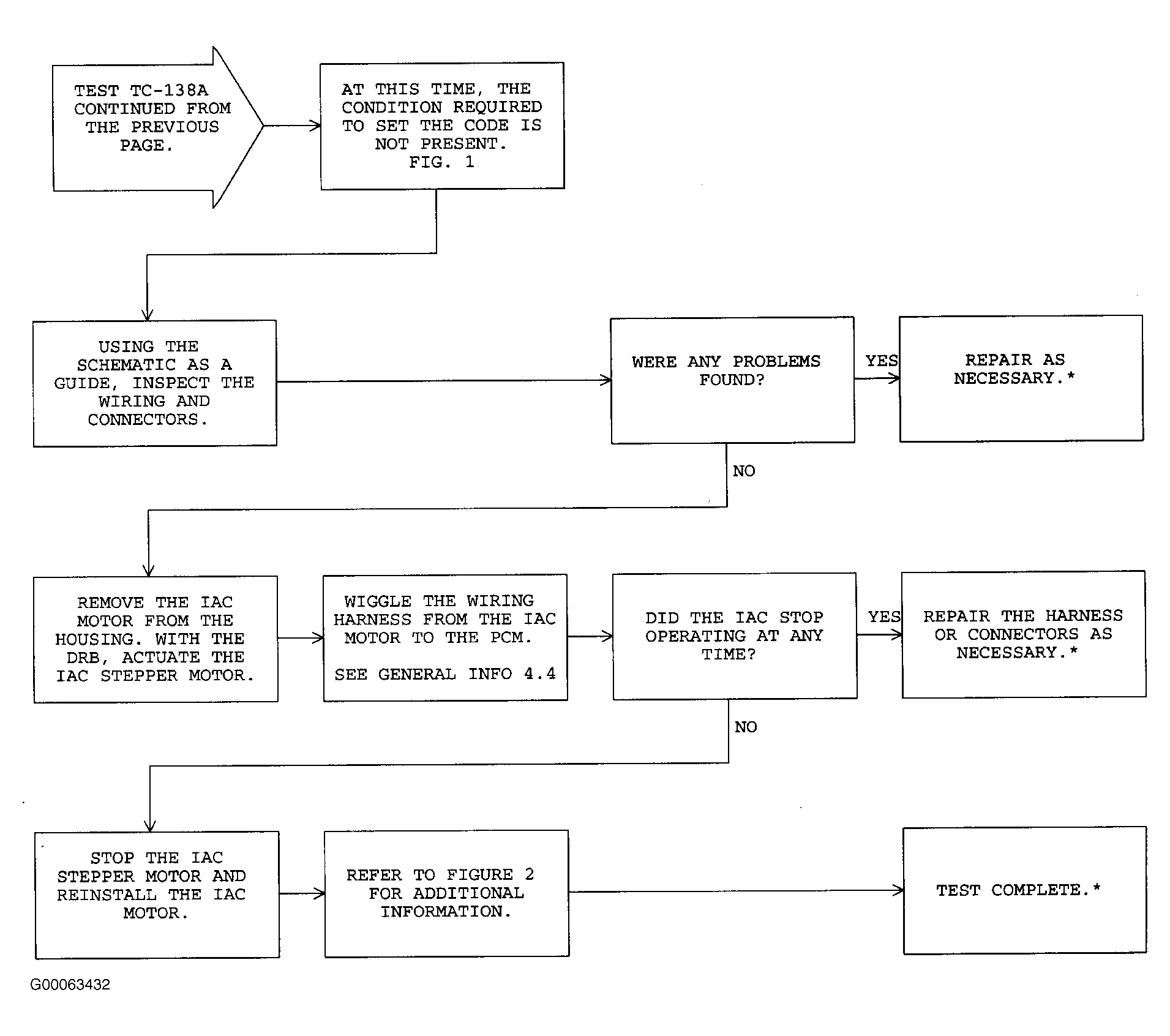

Fig 4: TC-138A: Target Idle Not Reached (4 Of 4)

Courtesy of DAIMLERCHRYSLER CORPORATION
